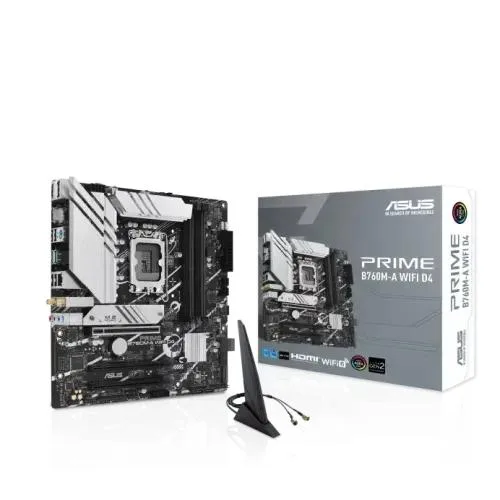

Asus PRIME B760M-A WIFI D4 mATX Motherboard
- Brand: Asus
- Product Code: Asus PRIME B760M-A WIFI D4 mATX Motherboard
- Availability: Out of Stock
- Updated:
৳25,000
Out of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|---|---|
| Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Slots | 4 x DIMM |
| Audio | 3 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Total supports 2 x M.2 slots |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | Max. 128GB |
| Supported Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 2 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 header support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
Description
Introduction
The ASUS Prime B760M-A WiFi D4 mATX Motherboard is a versatile and feature-packed motherboard designed for users who want to build a high-performance system without sacrificing space or budget. Featuring Intel's B760 chipset, this motherboard supports 12th and 13th generation Intel Core processors, offering exceptional performance for both gaming and productivity tasks. With support for DDR4 memory, PCIe 4.0, and high-speed connectivity options, including Wi-Fi 6, this motherboard provides a robust foundation for building powerful compact systems. Its mATX form factor makes it a great choice for users looking to create a smaller but still highly functional PC build. Whether you're gaming, content creating, or working on demanding applications, the ASUS Prime B760M-A WiFi D4 delivers the features and reliability you need in a compact package.
People Also Ask (PAA) Section
What processors are compatible with the ASUS Prime B760M-A WiFi D4 motherboard? The ASUS Prime B760M-A WiFi D4 motherboard is compatible with Intel’s 12th and 13th generation Core processors, including i9, i7, i5, and i3 models. The motherboard uses the LGA 1700 socket, making it a suitable choice for users looking to build a system around Intel's Alder Lake or Raptor Lake CPUs.
Does the ASUS Prime B760M-A WiFi D4 support overclocking? The ASUS Prime B760M-A WiFi D4 does not support CPU overclocking, as the B760 chipset is designed for stable and reliable performance without overclocking features. However, it does support memory overclocking for DDR4 RAM, so users can enhance memory speeds for better performance in gaming and multitasking.
How much memory can the ASUS Prime B760M-A WiFi D4 support? This motherboard supports up to 64GB of DDR4 memory through its four DIMM slots. The supported memory speeds range up to 5333 MHz (OC), offering flexibility for users who want to maximize their system’s memory bandwidth for gaming, content creation, or professional use.
What are the connectivity options on the ASUS Prime B760M-A WiFi D4? The ASUS Prime B760M-A WiFi D4 comes with an array of connectivity options, including Wi-Fi 6 for faster wireless speeds, Bluetooth 5.2, USB 3.2 Gen 2 Type-C, PCIe 4.0, and multiple SATA III and M.2 slots for storage. It also includes a 2.5Gb Ethernet port for faster wired network connectivity, making it suitable for both high-performance gaming and content creation.
Can I install an NVMe SSD on the ASUS Prime B760M-A WiFi D4? Yes, the ASUS Prime B760M-A WiFi D4 has two M.2 slots that support both PCIe 4.0 and PCIe 3.0 NVMe SSDs. This allows users to install high-speed storage solutions for faster boot times, load times, and data transfers.
Use Cases and Benefits
Compact Gaming Builds: For gamers looking to build a powerful yet compact gaming rig, the ASUS Prime B760M-A WiFi D4 is an ideal choice. Its mATX form factor fits easily into smaller PC cases, while still offering the support for high-performance Intel CPUs and PCIe 4.0 for the latest graphics cards. The Wi-Fi 6 support also ensures you have stable and fast online gaming without the need for additional networking hardware.
Content Creation and Productivity: Content creators and professionals who need a reliable and high-performance system will benefit from the ASUS Prime B760M-A WiFi D4. Its support for high-speed DDR4 memory, PCIe 4.0 for fast storage devices, and ample connectivity options make it suitable for tasks such as video editing, 3D rendering, and multitasking. The motherboard’s Wi-Fi 6 ensures smooth network performance for collaborative projects and cloud-based workflows.
Home Office and Multi-Tasking: The ASUS Prime B760M-A WiFi D4 is perfect for those looking to upgrade their home office or productivity system. With multiple USB ports, dual M.2 slots for fast storage, and built-in Wi-Fi 6, users can set up a multitasking environment for working from home, video conferencing, or running virtual machines. It offers the power needed for demanding applications while maintaining a compact footprint.
Budget-Friendly System Build: For users on a budget, the ASUS Prime B760M-A WiFi D4 offers an affordable yet feature-rich option for building a high-performance system. With support for Intel's 12th and 13th generation processors and the ability to overclock RAM, this motherboard ensures that users can build a system capable of handling gaming, content creation, and everyday computing tasks at an accessible price.
Upgrading to a Future-Proof System: The ASUS Prime B760M-A WiFi D4 is designed to accommodate Intel’s future processors, allowing users to build a system that will remain relevant for years to come. Its PCIe 4.0 support, high-speed storage options, and Wi-Fi 6 capability ensure that your build can handle emerging technologies and workloads, making it an excellent choice for users who want a future-proof PC.
Competitive Advantages
The ASUS Prime B760M-A WiFi D4 sets itself apart from other motherboards in its category by offering a blend of premium features in a compact, mATX form factor. Unlike many other B760 motherboards, it includes built-in Wi-Fi 6 and Bluetooth 5.2 for superior wireless connectivity. It also supports PCIe 4.0, providing faster data transfer speeds for modern GPUs and storage devices. The motherboard’s ability to handle up to 64GB of DDR4 RAM with high speeds up to 5333 MHz (OC) makes it highly versatile for different use cases. Overall, it provides excellent value by combining robust performance, space-saving design, and future-ready features at a competitive price.
The Asus PRIME B760M-A WIFI D4 mATX Motherboard is a reliable and versatile motherboard designed for small form factor builds. It features support for Intel 11th Gen processors, making it ideal for gamers and content creators alike. This motherboard comes equipped with integrated WiFi 6 for fast and stable wireless connectivity.
With dual M.2 slots, users can easily add high-speed SSDs for lightning-fast boot times and data access. The PRIME B760M-A also includes 6 SATA ports for additional storage options.
The mATX form factor allows for a compact build without sacrificing performance or features. The motherboard supports up to 128GB of DDR4 RAM, ensuring smooth multitasking and application performance.
Overall, the Asus PRIME B760M-A WIFI D4 mATX Motherboard is a solid choice for anyone looking to build a powerful and compact PC system.
