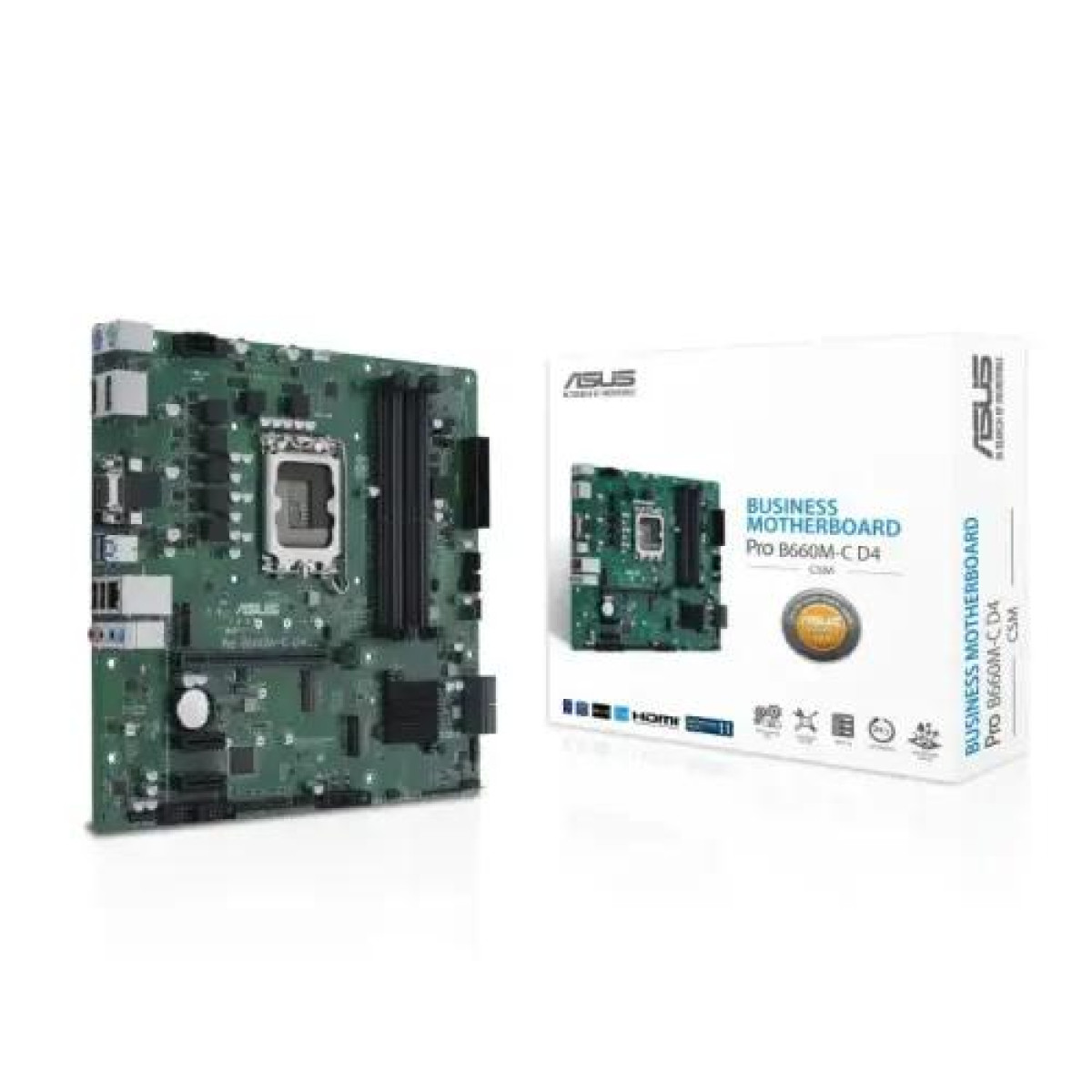

ASUS Pro B660M-C D4-CSM Motherboard - Best Choice for Tech Enthusiasts in Bangladesh
৳16,200৳16,900-4%
- Brand:Asus
- Product Code: ASUS Pro B660M-C D4-CSM mATX Motherboard
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | microATX 24.4cm x 24.4cm |
|---|---|
| Supported CPU | Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B660 Chipset |
| Slots | 4 x DIMM slots |
| Audio | 3 x Audio jacks |
| BIOS | 128Mb Flash ROM |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| Display Port (s) | 2 x DisplayPort |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| Special | |
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Best ASUS Pro B660M-C D4-CSM mATX Motherboard in Bangladesh
Looking for a high-quality motherboard for your tech setup in Bangladesh? The ASUS Pro B660M-C D4-CSM mATX Motherboard is the perfect choice. With its advanced features and reliable performance, this motherboard is sure to meet all your needs. From gaming to graphic design, this motherboard can handle it all.
Featuring support for DDR4 memory, PCIe 4.0, and USB 3.2 Gen 2, this motherboard is optimized for speed and efficiency. Its compact mATX form factor makes it ideal for smaller PC builds without sacrificing performance. Whether you are a professional or a casual user, the ASUS Pro B660M-C D4-CSM mATX Motherboard is a great investment.
Order yours today and take your tech setup to the next level with this top-of-the-line motherboard from ASUS.
