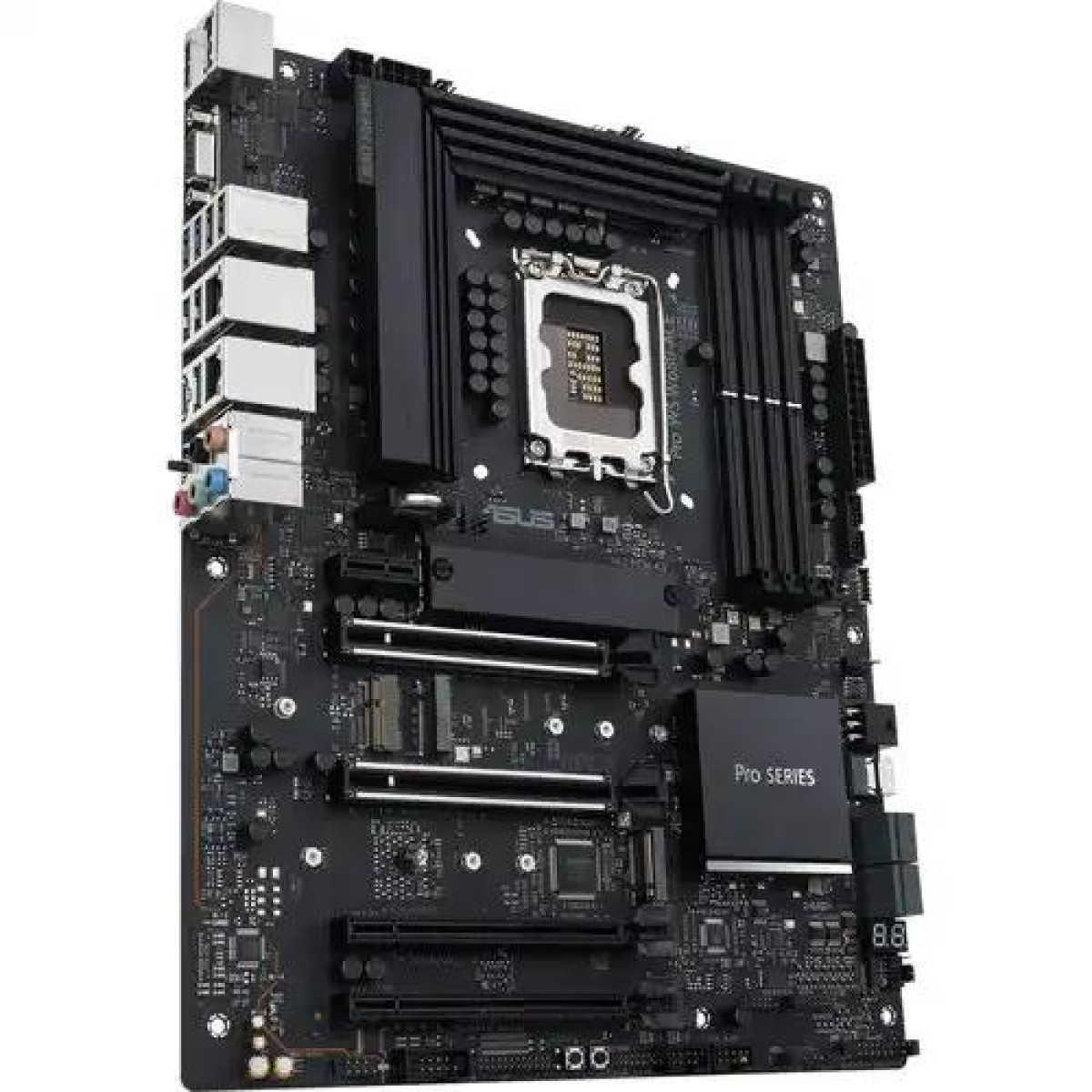

Asus Pro WS W680-ACE ATX Motherboard
- Brand: Asus
- Product Code: Asus Pro WS W680-ACE ATX Motherboard
- Availability: In Stock
- Usually ships in 1–2 business days
Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: Intel® LGA 1700 socket: Ready for 14th, 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Chipset: Intel W680 Chipset
- Slots: 4 x DIMM
- Audio: 5 x Audio jacks
Description
Asus Pro WS W680-ACE ATX Motherboard
The ASUS LGA 1700 ATX Motherboard's powerful performance will boost your productivity and editing skills. With a wide range of connectivity options and different ports, this motherboard provides a solid platform for your production. The Pro WS is built around Intel's LGA 1700 socket, which allows you to install a range of 12th and 13th Generation Core CPUs. Four DDR5 RAM slots allow you to install up to 192GB of memory, which improves multitasking and rendering speeds. Four SATA III, three M.2 PCIe SSD, and one SlimSAS slot interface can accommodate a wide range of storage devices, allowing for faster data transmission speeds. USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 compatibility is available via back-panel connectors and internal headers, making it suitable for both low-powered devices like keyboards and mice and resource-demanding devices like audio interfaces, external storage arrays, and so on. Dual 2.5 Gigabit Ethernet ports provide teaming capabilities, resulting in faster video uploads to shared NAS folders, cloud storage systems, and other destinations. ASUS Pro WS W680-ACE is intended for professionals in AI training, deep learning, animation, 3D rendering, and media creation. Pro Workstation motherboards are the best alternative for creative workers, since they offer expanded graphics, large storage, amazing connections, and exceptional overall performance and dependability. The Pro WS W680-ACE has centralized administration software, making it an efficient and cost-effective solution for IT managers. In Bangladesh, you can get original From Unix Network. We have a large collection of latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at lowest price. The Asus Pro WS W680-ACE Motherboard comes with 3 years warranty.Are you a computer user or student looking to upgrade your system with a reliable and high-performing motherboard? Look no further than the Asus Pro WS W680-ACE ATX Motherboard, available at Unix Network in Jashore, Bangladesh.
This motherboard is a top choice for those seeking quality and performance in their computer systems. Designed with cutting-edge technology and precision engineering, the Asus Pro WS W680-ACE ATX Motherboard offers unparalleled speed and efficiency for all your computing needs.
Featuring a robust ATX form factor, this motherboard is built to handle the demands of modern computing applications. Whether you're a student working on intensive projects or a professional requiring fast and reliable performance, the Asus Pro WS W680-ACE ATX Motherboard delivers on all fronts.
With a host of features including support for the latest Intel processors, ample expansion slots, and advanced cooling solutions, this motherboard is a powerhouse that can handle even the most demanding tasks with ease. Say goodbye to lag and slow loading times, and experience seamless multitasking and lightning-fast processing speeds.
At Unix Network, we understand the importance of quality and reliability when it comes to computer components. That's why we offer the Asus Pro WS W680-ACE ATX Motherboard – a product that embodies excellence in every aspect. Trust in our expertise and let us help you take your computing experience to the next level.
Upgrade your system today with the Asus Pro WS W680-ACE ATX Motherboard from Unix Network. Visit our store in Jashore, Bangladesh, and discover the power and performance that this motherboard has to offer. Your satisfaction is our priority, and we guarantee that you won't be disappointed with your purchase. Elevate your computing experience with the Asus Pro WS W680-ACE ATX Motherboard – the ultimate choice for quality and performance.
Are you in the market for a high-quality motherboard that delivers top-notch performance for your computer needs? Look no further than the Asus Pro WS W680-ACE ATX Motherboard. This powerhouse motherboard is designed with speed and efficiency in mind, making it the perfect choice for computer users and students alike.
When it comes to quality, the Asus Pro WS W680-ACE ATX Motherboard delivers in spades. With its durable construction and top-of-the-line components, you can trust that this motherboard will withstand even the most demanding tasks. Whether you're gaming, studying, or working on important projects, this motherboard will ensure that your computer runs smoothly and efficiently.
But don't just take our word for it - the performance of the Asus Pro WS W680-ACE ATX Motherboard speaks for itself. With its advanced features and cutting-edge technology, this motherboard is designed to handle even the most intensive applications with ease. Say goodbye to lagging and slow loading times - with this motherboard, you'll experience lightning-fast speeds and seamless performance every time.
And let's not forget about the sleek and professional design of the Asus Pro WS W680-ACE ATX Motherboard. With its modern aesthetic and streamlined layout, this motherboard will look right at home in any setup. Whether you're a student looking to impress your classmates or a professional seeking a reliable motherboard for your work, this motherboard is sure to make a statement.
At Unix Network in Jashore, Bangladesh, we take pride in offering top-of-the-line products like the Asus Pro WS W680-ACE ATX Motherboard to our customers. With our expert service and support, you can trust that you're getting the best in quality and performance. Don't settle for less - upgrade to the Asus Pro WS W680-ACE ATX Motherboard today and experience the difference for yourself.
Asus Pro WS W680-ACE ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Intel® LGA 1700 socket: Ready for 14th, 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel W680 Chipset |
| Slots | 4 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Total supports 3 x M.2 slots |
| PCI | Intel® 13th & 12th Gen Processors - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel® W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
| Memory Specifications | |
| Maximum Memory | Max. 192GB |
| Supported Memory | DDR5 ECC and Non-ECC Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 2 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x BMC Header 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x Flexkey button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x M.2 slot (Key E) 1 x LPT_P80 Switch 1 x Thunderbolt header |
| LAN Port (s) | 2 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices) |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 8 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Special | |
| Bundled Software | Intel® vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey Intel® vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
