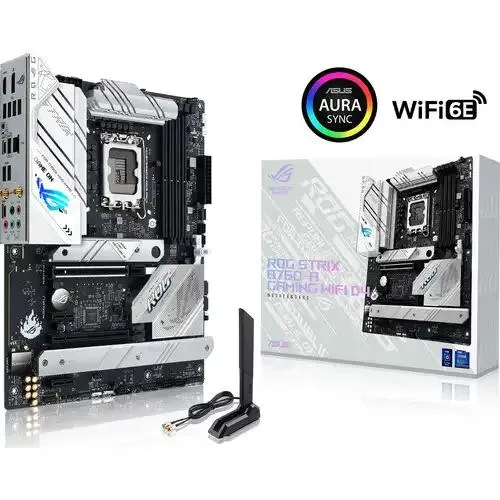

Asus ROG STRIX B760-A GAMING WIFI D4 ATX Motherboard
- Brand:Asus
- Product Code: Asus ROG STRIX B760-A GAMING WIFI D4 ATX Motherboard
- Availability:Out of Stock
- Updated:
৳37,500
Out of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|---|---|
| Supported CPU | Intel Socket LGA1700 for 14th gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| Slots | 4 x DIMM |
| Audio | 5 x Audio jacks |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Total supports 3 x M.2 slots |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | Max. 128GB |
| Supported Memory | 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC)/4266(OC) / 4000(OC)/3733(OC) / 3600(OC) / 3466(OC)/3400(OC) / 3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
| Special | |
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
Description
Introduction
The ASUS ROG STRIX B760-A GAMING WIFI D4 ATX Motherboard is a high-performance platform designed for gaming enthusiasts and power users. Equipped with Intel’s B760 chipset, this motherboard supports the latest 12th and 13th Gen Intel Core processors, bringing powerful performance and reliability to the table. It features support for DDR4 memory, up to 5333MHz (OC), and boasts PCIe 4.0 compatibility, ensuring smooth and fast performance across gaming and multitasking applications. The motherboard also includes integrated Wi-Fi 6 technology for blazing-fast wireless connectivity, dual M.2 slots for speedy NVMe SSD storage, and comprehensive cooling solutions, making it ideal for gamers who want a reliable, future-ready platform with robust connectivity options.
People Also Ask (PAA) Section
1. What processors are compatible with the ASUS ROG STRIX B760-A GAMING WIFI D4?
The ASUS ROG STRIX B760-A GAMING WIFI D4 ATX motherboard is compatible with Intel's 12th and 13th Gen Core processors, providing support for Intel's LGA 1700 socket. This makes it ideal for users looking to pair it with the latest Intel CPUs for gaming or productivity.
2. Does the ASUS ROG STRIX B760-A support DDR4 RAM?
Yes, this motherboard supports DDR4 RAM with speeds up to 5333MHz (overclocked). It offers four DIMM slots, allowing up to 128GB of memory, which provides a perfect balance between speed and capacity for modern gaming setups.
3. What are the connectivity options on the ASUS ROG STRIX B760-A GAMING WIFI D4?
This motherboard offers an array of connectivity options, including integrated Wi-Fi 6 and Bluetooth support, multiple USB 3.2 Gen 2 ports, and Ethernet, providing gamers with both wired and wireless flexibility. It also has dual M.2 slots for high-speed NVMe storage and ample PCIe slots for additional expansion.
4. How is the cooling on the ASUS ROG STRIX B760-A GAMING WIFI D4?
The ASUS ROG STRIX B760-A comes with an advanced cooling solution, including VRM heatsinks, M.2 heatsinks, and fan headers. This ensures optimal cooling for gaming and high-performance tasks, maintaining system stability and performance even under heavy loads.
5. Is the ASUS ROG STRIX B760-A GAMING WIFI D4 good for gaming?
Absolutely. With support for high-speed DDR4 memory, PCIe 4.0, and advanced connectivity options like Wi-Fi 6, the ASUS ROG STRIX B760-A is well-suited for gaming. Its high compatibility with Intel’s latest processors and the ROG series gaming-focused features make it an excellent choice for both casual and competitive gamers.
Use Cases and Benefits
The ASUS ROG STRIX B760-A GAMING WIFI D4 ATX motherboard is tailored to various user needs, especially those seeking high-performance, future-ready gaming setups:
High-Performance Gaming: Gamers benefit from high-speed connectivity, DDR4 memory support, and robust cooling, allowing for smooth gaming experiences and reliable system stability, even during resource-intensive games.
Content Creation and Streaming: This motherboard’s support for the latest Intel processors and high-speed memory makes it ideal for content creators and streamers. Its multiple USB ports and expansion slots allow for easy integration of peripherals and capture cards.
Future-Ready Upgrades: With PCIe 4.0 support and dual M.2 slots, this motherboard offers great flexibility for future upgrades, making it ideal for users who want a scalable platform for the latest graphics cards and NVMe storage solutions.
Competitive Advantages
The ASUS ROG STRIX B760-A GAMING WIFI D4 stands out with its integration of Wi-Fi 6 for fast and stable wireless connectivity, PCIe 4.0 support for enhanced graphics and storage options, and robust cooling solutions that are ideal for gaming and multitasking. Additionally, its compatibility with DDR4 RAM makes it a cost-effective option for gamers who want high performance without transitioning to DDR5 memory. This motherboard combines the best features of the ROG series with the reliability of the ASUS brand, making it an excellent choice for any gaming enthusiast or power user.
