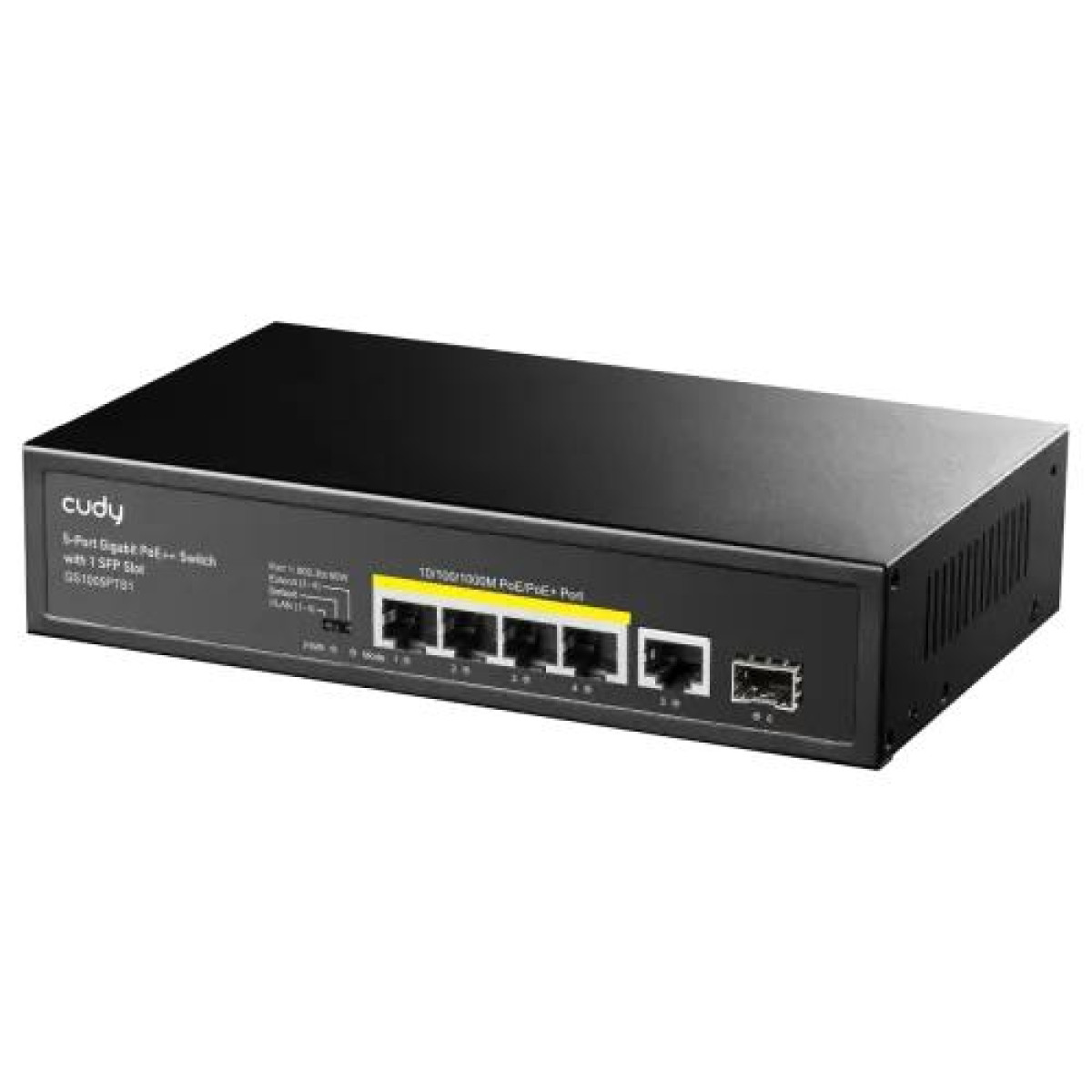

Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot
- Brand: Cudy
- Product Code: GS1005PTS1
- Availability: In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Network Standard | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |
|---|---|
| Power Supply | Input Voltage: AC 100-240 V |
| Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height: Maximum10,000 feet Storage heigh: Maximum 10,000 feet |
| Access Method | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) Multimode fiber : 50/125, 62.5/125, 100/140μm Single-mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
| Main Features | |
| Advanced Functions | VLAN： Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Default: In normal mode, all ports can communicate with each other, and the transmission distance is within 100 meters Extend： Link extension mode, 3-4 ports PoE power supply, and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Port | 4*10/100/1000M PoE Port 1*1000M RJ45 Port 1* Gigabit SFP Uplink Port |
| Transmission Method | Store-and-Forward |
| PHYSICAL SPECIFICATION | |
| Weight | 0.6kg |
Description
Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot Price in Bangladesh
The Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot is an efficient networking solution for IP CCTV cameras, wireless access points, VoIP phones, and fiber-optic network expansion. Designed for professional surveillance and networking projects, this smart PoE passthrough switch supports remote installation where local electrical power outlets are unavailable.
With four Gigabit PoE+ ports, one Gigabit PoE input port, and one 1.25 Gbps SFP fiber slot, the Cudy GS1005PTS1 is suitable for homes, offices, shops, warehouses, factories, apartment buildings, and CCTV security installations across Bangladesh.
Key Features of Cudy GS1005PTS1 PoE+ Switch
- 4 × 10/100/1000 Mbps Gigabit PoE+ RJ45 ports
- 1 × Gigabit PoE passthrough input port
- 1 × 1.25 Gbps SFP slot for fiber-optic uplink
- Supports IEEE 802.3af/at PoE standards
- Delivers up to 30W power per compatible PoE port
- 250-meter Extend Mode for long-distance CCTV cameras
- VLAN isolation mode for improved security and network stability
- Plug-and-play setup with no software or configuration needed
- Durable metal housing with silent fanless operation
- Wall-mountable design for convenient installation
4 Gigabit PoE+ Ports for CCTV Cameras and Access Points
The Cudy GS1005PTS1 includes four Gigabit PoE+ ports that deliver power and data through a single Ethernet cable. This helps simplify installation and reduces the need for separate power adapters for compatible devices.
It is suitable for connecting HD IP cameras, night-vision CCTV cameras, PTZ cameras, wireless access points, and VoIP phones. The switch supports IEEE 802.3af/at standards and can provide up to 30W of power per compatible PoE port.
- Supports 10/100/1000 Mbps Gigabit Ethernet speed
- Provides power and data through one LAN cable
- Compatible with IEEE 802.3af and IEEE 802.3at PoE devices
- Suitable for IP cameras, Wi-Fi access points, and IP phones
- Reduces cable clutter and installation costs
PoE Passthrough Input for Locations Without Power Outlets
The built-in Gigabit PoE input port allows the Cudy GS1005PTS1 switch to receive power from compatible Power Sourcing Equipment through an Ethernet cable. This PoE passthrough feature is useful for remote CCTV and network installations where an AC power outlet is not available.
It is a practical option for installing surveillance cameras and networking devices in gates, parking areas, rooftops, warehouses, outdoor locations, and large buildings.
- Receives power through the PoE input port
- Helps eliminate the need for a nearby AC power outlet
- Ideal for remote CCTV camera deployment
- Supports cleaner and more organized cable management
- Suitable for business, office, and security projects
Gigabit SFP Fiber Slot for Long-Distance Network Connectivity
The Cudy GS1005PTS1 features one 1.25 Gbps SFP slot for fiber-optic network uplink. This allows users to connect the switch to a remote network backbone through fiber cable, making it suitable for long-distance networking and surveillance projects.
The SFP fiber slot is useful for connecting separate buildings, floors, warehouses, security rooms, offices, and large commercial spaces where standard Ethernet cable distance is not sufficient.
- 1 × 1.25 Gbps Gigabit SFP fiber slot
- Supports high-speed fiber uplink connectivity
- Suitable for long-distance network backbone connections
- Ideal for CCTV monitoring and enterprise networking
- Helps expand networks beyond standard Ethernet cable limits
250m Extend Mode for Long-Distance CCTV Installation
With Extend Mode enabled through the DIP switch, the Cudy GS1005PTS1 can transmit PoE power and network data over Ethernet cable to compatible devices up to 250 meters away. In Extend Mode, the switch supports data transmission at up to 100 Mbps.
This feature is useful for IP CCTV cameras installed far from the main network, including cameras at entrances, boundary walls, parking spaces, storage areas, and industrial sites.
- Up to 250 meters of PoE and data transmission
- Up to 100 Mbps network speed in Extend Mode
- Ideal for long-distance IP camera connections
- Helps reduce the need for extra switches or power sources
- Suitable for security surveillance projects in Bangladesh
VLAN Isolation Mode for Better CCTV Network Security
The VLAN isolation mode helps isolate connected CCTV ports, reducing unnecessary broadcast traffic and improving network stability. This is useful for surveillance systems with multiple IP cameras, where stable and secure network performance is important.
- One-click VLAN isolation through DIP switch control
- Helps reduce broadcast storms
- Improves stability for IP CCTV camera networks
- Helps separate connected surveillance devices
- Suitable for professional security camera installations
Durable Metal Body and Silent Fanless Operation
The Cudy GS1005PTS1 comes with a durable metal housing designed for reliable performance. Its fanless design allows completely silent operation, making it suitable for homes, offices, shops, security rooms, and other quiet environments.
- Strong professional-grade metal housing
- Fanless design for silent operation
- Supports wall-mounted installation
- Designed for reliable long-term use
- Suitable for CCTV, office, retail, and networking projects
Why Choose the Cudy GS1005PTS1 PoE Switch?
- PoE passthrough support for locations without electrical outlets
- Four Gigabit PoE+ ports for IP cameras and network devices
- One Gigabit SFP slot for fiber backbone connectivity
- 250m Extend Mode for long-distance CCTV cameras
- VLAN isolation mode for enhanced network security
- Easy plug-and-play installation
- Durable metal body with silent fanless performance
- Ideal for CCTV, office, home, and commercial network setups
Buy Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch from Unix Network
Buy the original Cudy GS1005PTS1 5-Port Gigabit PoE+ Switch with 1 SFP Slot from Unix Network in Jashore, Bangladesh. This high-performance PoE switch is an excellent choice for IP CCTV camera systems, wireless access points, VoIP phones, and fiber-optic networking projects.
Unix Network provides original Cudy networking products with official brand warranty and technical support. Visit our shop in Jashore or order online from anywhere in Bangladesh.
