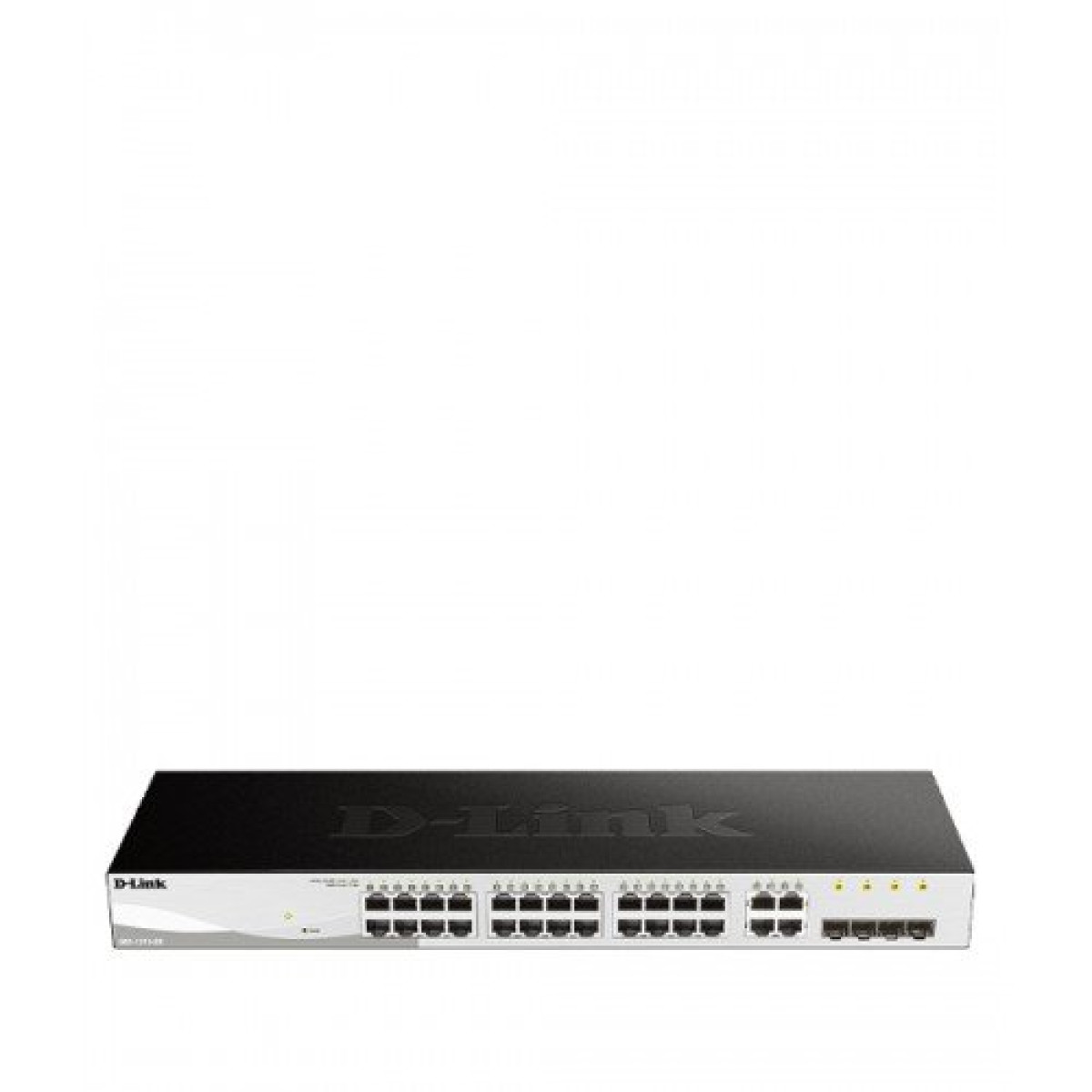

D-Link DGS-1210-28 24-Port Smart Managed Gigabit Switch

D-Link DGS-1210-28 24-Port Smart Managed Gigabit Switch

The D-Link DGS-1210-28 is a business-class smart managed Gigabit switch designed for organisations that need more control, security and network-management capability than a basic unmanaged switch can provide. It combines 24 × 10/100/1000BASE-T Gigabit Ethernet ports with 4 Gigabit RJ45/SFP combo ports, providing flexible connectivity for computers, servers, access points, printers, IP devices and other network equipment.

With a 56 Gbps switching capacity, 41.7 Mpps maximum forwarding rate, advanced Layer 2 management, VLAN support, link aggregation, QoS, traffic control, port mirroring and Layer 2+ static routing capabilities, the DGS-1210-28 is suitable for small and medium-sized businesses, offices, educational institutions, surveillance networks and other structured Ethernet environments.

Unlike a conventional unmanaged switch that largely operates automatically with little configuration, the DGS-1210-28 gives network administrators greater control over how traffic moves through the network. This makes it useful when a network needs segmentation, prioritisation, access control, monitoring or more organised management as the number of connected devices grows.

D-Link DGS-1210-28 Price in Bangladesh

The D-Link DGS-1210-28 is positioned above basic plug-and-play Gigabit switches because it provides smart management and advanced networking functions. When comparing the DGS-1210-28 price in Bangladesh, businesses should consider the value of its 24 Gigabit Ethernet ports, four combo uplink interfaces, VLAN capabilities, security features, traffic-management options and Layer 2+ routing functions rather than comparing it only with unmanaged switches.

Availability and pricing can vary according to the hardware revision, distributor stock and local market conditions. Customers in Jessore can contact Unix Network to confirm current availability, pricing, warranty terms and compatibility with their existing network infrastructure.

24 Gigabit Ethernet Ports for Business Networks

The DGS-1210-28 provides 24 × 10/100/1000BASE-T Ethernet ports. Each RJ45 port supports 10 Mbps, 100 Mbps and Gigabit Ethernet connectivity, allowing the switch to accommodate a mixture of older and newer Ethernet devices.

For a business network, 24 copper ports provide substantial connection capacity from a single rack-mounted switch. Computers, printers, servers, wireless access points, network storage devices, IP cameras and other Ethernet-enabled equipment can be connected directly through the available RJ45 ports, subject to the requirements of the individual device and network design.

Gigabit Ethernet is particularly useful when several users need to access shared servers, network storage or other high-bandwidth resources. The actual throughput experienced by an individual device will depend on the complete network path, cabling, connected hardware and traffic conditions.

4 Gigabit RJ45/SFP Combo Ports

In addition to its 24 dedicated Gigabit Ethernet ports, the DGS-1210-28 includes four Gigabit RJ45/SFP combo ports. These provide additional flexibility for network uplinks and expansion.

A combo port can be used through the supported RJ45 or SFP interface, making it possible to connect the switch to another network device using copper Ethernet or compatible fibre-optic equipment. Fibre connectivity can be particularly useful when connecting network segments over longer distances or when an installation requires optical uplinks.

This combination of copper access ports and SFP-capable uplink interfaces makes the DGS-1210-28 suitable for structured office networks where network expansion and flexible backbone connectivity may be required.

56 Gbps Switching Capacity

The DGS-1210-28 has a switching capacity of up to 56 Gbps and a maximum forwarding rate of 41.7 Mpps. These specifications describe the switching hardware's ability to process network traffic across its ports.

For a multi-user office, this capacity is important because network traffic is rarely limited to a single connection. Multiple computers may simultaneously communicate with servers, internet gateways, NAS devices, printers and other network resources. A higher switching capacity gives the switch the internal bandwidth required to handle traffic across multiple ports efficiently.

Actual network performance depends on the connected devices, network topology, cabling quality, traffic patterns and configuration. A switch's switching capacity should therefore be viewed as a hardware capability rather than a guarantee of a particular internet speed.

Smart Managed Network Control

The D-Link DGS-1210-28 belongs to D-Link's Smart Managed switch family, providing considerably more control than a standard unmanaged Ethernet switch. Administrators can configure and monitor important network functions according to the requirements of the organisation.

Management capabilities can be useful when a network grows beyond a simple collection of computers connected together. Instead of treating every device and every traffic flow identically, administrators can create logical network segments, apply traffic policies, control access and monitor network behaviour.

The switch supports web-based management and a compact command-line interface on applicable versions, giving technically experienced administrators additional options for configuration and maintenance.

VLAN Support for Network Segmentation

Virtual LAN functionality is one of the most useful features of a managed switch. The DGS-1210-28 supports IEEE 802.1Q VLANs and up to 256 static VLAN groups according to D-Link's specifications.

VLANs allow a physical network to be separated into logical network segments. For example, an organisation could separate employee computers, guest devices, surveillance equipment and management systems into different VLANs while continuing to use the same physical switching infrastructure.

Network segmentation can make larger installations easier to manage and can help administrators control which groups of devices are able to communicate with each other. Proper VLAN design is particularly important for businesses where different departments or device categories have different network-access requirements.

Layer 2+ Static Routing

The DGS-1210-28 provides Layer 2+ functionality with static routing capabilities. This allows supported routing functions to be handled by the switch rather than requiring every internal traffic path to pass through an external router.

For organisations using VLANs, this can be useful when traffic needs to move between internal network segments. A properly designed network can use the switch for appropriate internal routing while the main router or firewall continues to handle internet access and other external traffic.

Static routing is most useful in networks where the administrator understands the topology and can define the required routes. It is not intended to replace a full enterprise router or firewall for every networking scenario.

Quality of Service for Traffic Prioritisation

Business networks often carry different types of traffic at the same time. A network may simultaneously handle file transfers, voice communication, video streams, cloud applications and ordinary web browsing.

The DGS-1210-28 supports Quality of Service features that can be used to prioritise traffic according to configured policies. QoS can help administrators give time-sensitive traffic appropriate priority when network congestion occurs.

This can be particularly relevant in offices using IP telephony, video conferencing or other applications where excessive delay or congestion can negatively affect the user experience.

IGMP Snooping and Multicast Management

The switch supports IGMP snooping features for multicast traffic. Multicast is used by certain network applications to deliver one stream of data to multiple interested receivers rather than sending separate copies to every device.

IGMP snooping can help the switch make more informed forwarding decisions for multicast traffic. This is useful in network environments where multicast applications are present, including certain video, IPTV and monitoring applications.

Proper multicast configuration depends on the complete network architecture, so administrators should configure these functions according to the requirements of the connected equipment.

Link Aggregation for Higher Uplink Resilience

The DGS-1210-28 supports link aggregation using standards-based mechanisms such as IEEE 802.3ad. Link aggregation allows multiple physical Ethernet connections to be grouped into a logical link between compatible network devices.

This can be useful for switch-to-switch connections, server connections and other network links where additional aggregate bandwidth or redundancy is desirable. Instead of relying on a single physical cable, a properly configured link aggregation group can use multiple connections between supported devices.

Both ends of an aggregated connection must be configured correctly, and the actual performance benefits depend on traffic patterns and the capabilities of the connected equipment.

Spanning Tree Protocol Support

Network redundancy can be valuable, but redundant Ethernet paths can create loops if they are not controlled. The DGS-1210-28 supports Spanning Tree Protocol technologies including STP, RSTP and MSTP.

These protocols are designed to help prevent network loops while allowing appropriate redundant paths to exist in a structured network design. RSTP can provide faster topology recovery than traditional STP, while MSTP can be used for more advanced multiple-spanning-tree configurations.

For businesses with several switches or redundant network paths, spanning-tree functionality can be an important part of maintaining a stable network architecture.

Network Security Features

Network management is not only about performance. Security is equally important when many users and devices share the same infrastructure. The DGS-1210-28 includes several features designed to help administrators control access and protect network resources.

Supported security functions include Access Control Lists, 802.1X port-based authentication, IP-MAC-port binding and safeguards against certain network attacks and traffic flooding. These features provide administrators with additional tools for controlling which devices can access network resources.

802.1X authentication can be particularly useful in business environments where network access needs to be authenticated through an external RADIUS server. ACLs can also be used to define traffic rules according to the organisation's security requirements.

D-Link Safeguard Engine

D-Link's Safeguard Engine is designed to help protect the switch itself from certain forms of traffic flooding and malicious activity that could otherwise consume switch resources.

This is one component of a broader network-security strategy. A managed switch should still be deployed alongside appropriate firewall policies, endpoint security, authentication controls and regular network administration rather than being treated as a complete security solution by itself.

Fanless Design for Quiet Operation

The DGS-1210-28 uses a fanless design. Removing an internal cooling fan can be beneficial in environments where low acoustic noise is desirable, such as offices, classrooms, small server rooms and network cabinets located near working areas.

A fanless switch also has fewer moving components inside the unit. However, installation conditions remain important. The switch should have adequate ventilation and should not be placed in an environment where surrounding equipment causes excessive heat.

Energy-Efficient Ethernet

The DGS-1210 series supports IEEE 802.3az Energy Efficient Ethernet along with D-Link's energy-saving technologies. These features are designed to reduce unnecessary power consumption under suitable operating conditions.

Energy efficiency becomes increasingly relevant in offices and network installations containing several switches and other continuously powered equipment. Reducing unnecessary consumption can contribute to lower operating costs over the lifetime of the network.

Auto MDI/MDIX

The DGS-1210-28 supports Auto MDI/MDIX, simplifying Ethernet cabling by automatically detecting the appropriate connection configuration. This reduces the need to manually determine whether a crossover cable is required for particular Ethernet connections.

For installers and network administrators, this makes everyday switch deployment more convenient and helps simplify connections between the switch and compatible network devices.

Store-and-Forward Switching

The switch uses a store-and-forward switching method. In this approach, Ethernet frames are received and checked before being forwarded through the appropriate port.

This is a common switching architecture for managed Ethernet switches because it allows the switch to make forwarding decisions while helping maintain reliable network operation. The design is well suited to business networks where multiple types of Ethernet devices communicate through the same switching infrastructure.

D-Link DGS-1210-28 Specifications

Business and Office Networking Applications

The D-Link DGS-1210-28 is well suited to offices where a larger number of wired devices need to share a managed network. A typical installation could connect desktop computers, printers, servers, wireless access points, network storage and other Ethernet equipment to the switch.

VLAN functionality allows the network administrator to organise devices into logical groups. QoS can help manage important traffic, while security features provide additional control over access to the network.

For growing organisations, the four combo ports also provide options for connecting the switch to another switch or network infrastructure through copper or compatible fibre connections.

Suitable for CCTV and Surveillance Networks

Although the standard DGS-1210-28 is not a PoE switch, it can still be useful as part of a surveillance network where IP cameras or other PoE devices receive power from separate PoE equipment.

Its VLAN, multicast-management, traffic-control and Gigabit connectivity features can be useful in appropriately designed surveillance infrastructures. Customers requiring the switch itself to power PoE cameras should instead consider a D-Link PoE model such as a DGS-1210-28P or DGS-1210-28MP.

Server and NAS Connectivity

Modern offices increasingly depend on shared storage, NAS systems, servers and cloud-connected applications. A Gigabit managed switch provides the wired infrastructure required to connect these resources to multiple users.

Link aggregation can also be useful when supported by the server or NAS device and when the network design requires multiple physical connections to operate as an aggregated link. This can provide additional aggregate bandwidth and redundancy for appropriate workloads.

Suitable for Educational Institutions

Schools, training centres, colleges and other educational environments can use the DGS-1210-28 to create structured wired networks across classrooms, offices, laboratories and computer rooms.

VLANs can separate administrative devices from student or guest networks, while access-control and authentication features can provide additional management options. The exact configuration should be based on the institution's network policy and security requirements.

Why Managed Switching Matters

A small home network may work perfectly well with an unmanaged switch. As the number of users and devices increases, however, network administrators often need greater visibility and control.

A smart managed switch allows the network to be structured rather than simply connected. VLANs can separate traffic, QoS can prioritise selected applications, link aggregation can combine supported links, spanning-tree protocols can manage redundant paths, and security controls can restrict network access.

This makes the DGS-1210-28 a better fit for organisations that expect their network to require administration, monitoring and controlled expansion.

Advantages of D-Link DGS-1210-28

• 24 dedicated Gigabit Ethernet ports for wired network devices.
• Four Gigabit RJ45/SFP combo ports for flexible uplink connectivity.
• 56 Gbps switching capacity.
• 41.7 Mpps maximum forwarding rate.
• Smart managed functionality for greater network control.
• IEEE 802.1Q VLAN support for network segmentation.
• Up to 256 static VLAN groups.
• Layer 2+ static routing capability.
• 802.3ad link aggregation support.
• STP, RSTP and MSTP support for network-loop management.
• QoS features with multiple priority queues.
• IGMP snooping for multicast traffic management.
• ACL and 802.1X authentication features for network access control.
• SNMP support for network monitoring and management.
• Fanless construction for quiet operation.
• IEEE 802.3az Energy Efficient Ethernet support.
• Rack-mountable 1U form factor.

Things to Consider Before Buying

The DGS-1210-28 is a non-PoE switch. It does not provide electrical power to PoE-compatible access points, IP cameras, VoIP phones or other powered Ethernet devices. If PoE is required, a PoE variant should be selected instead.

The four additional interfaces are combo ports, meaning the supported copper and SFP interfaces share the same port resources rather than providing eight independent additional connections. Network planners should account for this when designing uplinks.

Customers should also distinguish between a Gigabit switch and an internet connection. A 56 Gbps switching capacity does not mean that an internet connection will operate at 56 Gbps. Internet performance remains dependent on the ISP connection, router, firewall, client devices and complete network path.

Who Should Buy the DGS-1210-28?

The D-Link DGS-1210-28 is a strong option for small and medium-sized businesses, offices, educational institutions, computer labs, surveillance installations and other organisations that need more network control than an unmanaged Gigabit switch provides.

It is particularly appropriate for customers who need multiple Gigabit ports together with VLANs, QoS, access control, link aggregation, multicast management and other smart-management features.

For a very small home network with only a few devices, many of these functions may be unnecessary. In that situation, a simpler unmanaged switch can be more appropriate. The DGS-1210-28 becomes more valuable when network organisation, security and administration are genuine requirements.

Why Buy D-Link DGS-1210-28 from Unix Network?

Unix Network is a computer and networking equipment supplier serving customers in Jessore, Jashore and throughout Bangladesh. As a Computer Shop in Jessore and a networking equipment supplier, Unix Network can help customers choose networking hardware based on the number of connected devices, required uplinks, VLAN requirements and overall network architecture.

For businesses planning a new office network or upgrading an existing infrastructure, selecting the right switch is only one part of the project. Port requirements, uplink design, PoE requirements, VLAN structure, cabling, router capacity and future expansion should all be considered together.

Customers can check the availability of the D-Link DGS-1210-28 at Unix Network and discuss whether the standard non-PoE model is suitable for their particular installation.

Buying Guide for D-Link DGS-1210-28

Before purchasing, count the number of wired devices that need direct switch connections and consider how many additional ports will be required in the future. The DGS-1210-28 provides 24 dedicated Gigabit RJ45 ports plus four combo interfaces, giving businesses considerable expansion flexibility.

Next, determine whether PoE is required. If cameras, access points or VoIP phones need to receive power through Ethernet, the standard DGS-1210-28 is not the appropriate powered model. A PoE switch or separate PoE equipment will be necessary.

Finally, review your management requirements. If you need VLAN segmentation, link aggregation, QoS, access control, multicast management or internal static routing, the DGS-1210-28 provides a significantly more capable platform than a basic unmanaged switch.

Warranty Information

D-Link warranty terms can vary by market, distributor and product revision. The applicable warranty for the unit supplied in Bangladesh should therefore be confirmed with Unix Network at the time of purchase.

Customers should retain their invoice and warranty documentation. Network equipment should also be installed and operated within the manufacturer's specified environmental and electrical requirements.

Delivery Across Bangladesh

Unix Network serves customers in Jessore and can provide delivery options for customers in other parts of Bangladesh, subject to current logistics and product availability.

Businesses in Jashore, Khulna, Jhenaidah, Magura, Narail, Satkhira, Kushtia, Chuadanga and other areas can contact Unix Network to check current stock, pricing and delivery arrangements for the D-Link DGS-1210-28.

After-Sales Networking Support

Managed switches require more planning than plug-and-play networking equipment. VLANs, trunk connections, link aggregation, authentication, routing and access-control rules need to be configured correctly for the intended network topology.

Unix Network can help customers understand the product's capabilities and determine whether the DGS-1210-28 matches their network requirements. For larger installations, professional network planning and configuration may be appropriate to ensure that the switch works correctly with the existing router, firewall, servers, access points and other infrastructure.

Frequently Asked Questions About D-Link DGS-1210-28

How many ports does the D-Link DGS-1210-28 have?

The DGS-1210-28 provides 24 × 10/100/1000BASE-T Gigabit Ethernet ports and four Gigabit RJ45/SFP combo ports.

Is the D-Link DGS-1210-28 a managed switch?

Yes. It is a Smart Managed Gigabit switch with advanced Layer 2 management and Layer 2+ static routing capabilities.

Does the DGS-1210-28 support VLAN?

Yes. It supports IEEE 802.1Q VLAN functionality and up to 256 static VLAN groups according to D-Link's specifications.

Does the DGS-1210-28 support SFP?

Yes. It has four Gigabit RJ45/SFP combo ports that can support compatible SFP connectivity or copper Ethernet through the combo interfaces.

What is the switching capacity of the DGS-1210-28?

The DGS-1210-28 has a switching capacity of up to 56 Gbps and a maximum forwarding rate of 41.7 Mpps.

Is the DGS-1210-28 a PoE switch?

No. The standard DGS-1210-28 is a non-PoE model. Customers who need to power network devices through Ethernet should consider an appropriate PoE model instead.

Does the D-Link DGS-1210-28 support link aggregation?

Yes. It supports IEEE 802.3ad link aggregation, allowing compatible network devices to combine multiple physical connections into an aggregated link when correctly configured.

Does the DGS-1210-28 support static routing?

Yes. The switch provides Layer 2+ functionality with static routing capabilities, which can be useful for appropriate internal network-routing designs.

Is the DGS-1210-28 suitable for an office network?

Yes. Its 24 Gigabit Ethernet ports, four combo interfaces, VLAN support, QoS, security controls, monitoring features and Layer 2+ capabilities make it well suited to many small and medium-sized office networks.

Is the DGS-1210-28 fanless?

Yes. The DGS-1210-28 uses a fanless cooling design, making it suitable for network environments where low operating noise is desirable.

Can the DGS-1210-28 be rack mounted?

Yes. The switch uses a rack-friendly 1U form factor with dimensions of approximately 440 × 140 × 44 mm.

Does the DGS-1210-28 support 10/100 Mbps devices?

Yes. Its 10/100/1000BASE-T ports support 10 Mbps, 100 Mbps and 1000 Mbps Ethernet connections, allowing compatible devices operating at different Ethernet speeds to connect to the switch.

Final Verdict on D-Link DGS-1210-28

The D-Link DGS-1210-28 is designed for customers who need considerably more than simple Ethernet connectivity. Its 24 Gigabit RJ45 ports, four RJ45/SFP combo ports, 56 Gbps switching capacity and extensive management features provide a strong foundation for structured business networks.

VLAN support, QoS, link aggregation, spanning-tree protocols, IGMP snooping, access-control features, 802.1X authentication, SNMP and Layer 2+ static routing make it suitable for organisations that need to manage and segment network traffic rather than simply connect devices.

The fanless design and energy-efficient Ethernet support are additional advantages for installations where quiet operation and efficient power usage matter. However, buyers should remember that the standard DGS-1210-28 is not a PoE switch, so powered network devices require separate PoE equipment or a suitable PoE switch variant.

For businesses, offices, educational facilities and other professional environments looking for a 24-port Smart Managed Gigabit switch in Bangladesh, the D-Link DGS-1210-28 is a practical choice when advanced network management, flexible uplinks and future scalability are important. Customers searching for a D-Link DGS-1210-28 from a Computer Shop in Jessore can contact Unix Network for current availability, pricing, warranty information and guidance on selecting the right networking solution.
