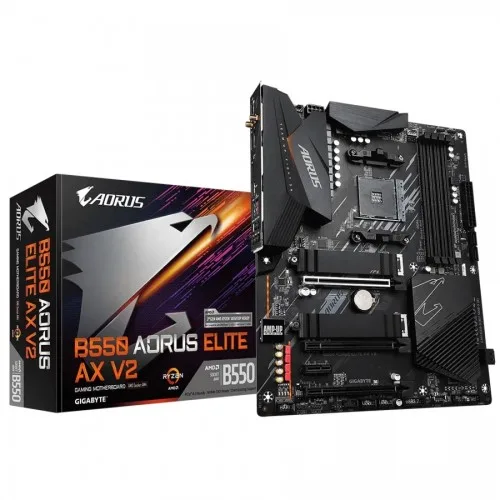

GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard
- Brand: Gigabyte
- Product Code: B550 Aorus Elite AX V2
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor: 30.5cm x 24.4cm |
|---|---|
| Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD B550 |
| Audio | Realtek ALC1200 codec High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Connectivity | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Memory Specifications | |
| Maximum Memory | support up to 128GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM slots |
| Supported Memory | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen : Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10 |
| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 1 port on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless Communication module | Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
Description
Elevate Your Gaming Experience with the GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard
The GIGABYTE B550 Aorus Elite AX V2 AM4 ATX Motherboard is engineered to provide an exceptional foundation for your gaming and productivity needs. This motherboard is designed for AMD Ryzen processors, delivering robust performance and advanced features that cater to both gamers and content creators. With its sleek design and high-quality components, it not only looks great but also ensures stability and reliability under heavy workloads.
Key Features and Benefits:
The B550 Aorus Elite AX V2 integrates the latest technology, including PCIe 4.0 support, which allows for enhanced data transfer speeds and improved performance for next-gen graphics cards. The motherboard supports up to 128GB of DDR4 RAM, ensuring you have ample memory for multitasking and demanding applications. Additionally, the advanced thermal design keeps your system cool during intense gaming sessions, thanks to its Smart Fan 5 technology that allows users to customize fan settings for optimal airflow.
For gamers, the Aorus Elite AX V2 offers a dedicated gaming mode that optimizes the motherboard settings for maximum performance. The integrated Wi-Fi 6 capability ensures you experience faster and more reliable internet connectivity, allowing you to game without interruptions. Furthermore, with robust audio capacitors and a high-quality audio processor, you will enjoy superior sound quality for an immersive gaming experience.
Use Cases:
This motherboard is perfect for gamers looking to build a high-performance rig, content creators needing reliable processing power for video editing, and enthusiasts who want to overclock their systems. It is well-suited for both casual and competitive gaming, making it a versatile choice for anyone seeking to enhance their computing experience.
Why Choose the GIGABYTE B550 Aorus Elite AX V2?
Investing in the GIGABYTE B550 Aorus Elite AX V2 means choosing a product that combines quality, performance, and cutting-edge technology. With its competitive pricing in the Bangladesh market, you can achieve top-tier performance without breaking the bank. Upgrade your PC with this motherboard and experience the difference it makes in your gaming and productivity.
