Key highlights
- Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
- Supported CPU: 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU
- Chipset: Intel B560 Express Chipset
- Slots: 2 x DIMM
- Audio: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Description

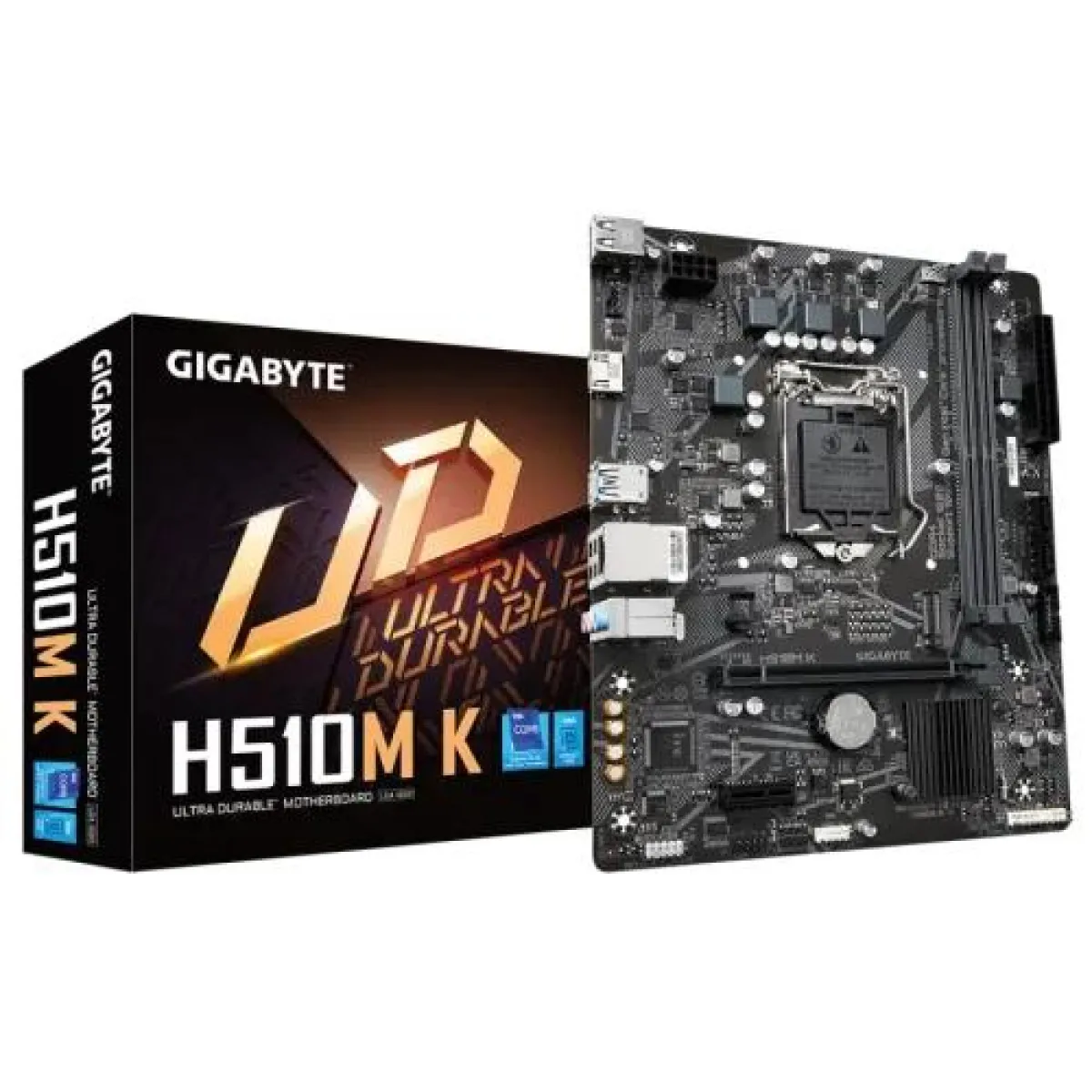

The GIGABYTE Intel Micro ATX Motherboard is a reliable and efficient choice for building a compact and versatile desktop system. Designed to support 11th and 10th Gen Intel Core Processors with an LGA1200 socket, this motherboard offers compatibility with a wide range of CPUs. It supports DDR4 memory with two DIMM slots, allowing for a maximum capacity of up to 64 GB. For graphics output, it features an HDMI port, providing a convenient connection for displays. Equipped with a Realtek GbE LAN chip, the GIGABYTE H510M K offers network speeds of up to 1 Gbps, ensuring fast and stable internet connectivity. The also delivers high-quality audio through its 8-channel HD Audio with high-quality capacitors, making it suitable for immersive sound experiences. It includes an NVMe PCIe Gen3 x4 2280 M.2 connector, allowing for high-speed storage solutions. The Smart Fan 5 technology with multiple temperature sensors and hybrid fan headers, including a FAN STOP feature, ensures efficient cooling and quiet operation. The GIGABYTE APP Center provides an easy-to-use interface for managing various system utilities, enhancing the user experience. Additionally, the anti-sulfur resistor design helps protect against sulfur corrosion, ensuring durability and longevity. Overall, the GIGABYTE H510M K is a solid foundation for a variety of builds, catering to gaming, productivity, and general use. In Bangladesh, you can get the original From Unix Network. We have a large collection of the latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at the lowest price. The GIGABYTE H510M K Intel Micro ATX Motherboard comes with 3 years warranty.
The GIGABYTE H510M K Intel Micro ATX Motherboard is the ideal choice for those looking to build a compact yet powerful PC. This motherboard supports Intel 10th and 11th generation processors, providing excellent performance for gaming, streaming, and multitasking.
With its Micro ATX form factor, this motherboard is perfect for small form factor builds, saving space without sacrificing performance. The H510M K features PCIe 4.0 support, allowing for blazing fast data transfer speeds for graphics cards and SSDs.
Equipped with high-quality components, such as durable capacitors and VRM heatsinks, the H510M K ensures reliable and stable operation under heavy workloads. Additionally, the motherboard features USB 3.2 Gen 1 Type-A and Type-C ports for convenient connectivity to a variety of devices.
Overall, the GIGABYTE H510M K Intel Micro ATX Motherboard is a versatile and reliable option for users looking to build a high-performance PC in a compact form factor.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Supported CPU | 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU |
| Chipset | Intel B560 Express Chipset |
| Slots | 2 x DIMM |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot: Supporting PCIe 4.0 and running at x16 (PCIe 4.0 is only supported by 11th-generation processors.) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
| Memory Specifications | |
| Maximum Memory | 64GB (32 GB single DIMM capacity) |
| Supported Memory | 1th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium®/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector: Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
