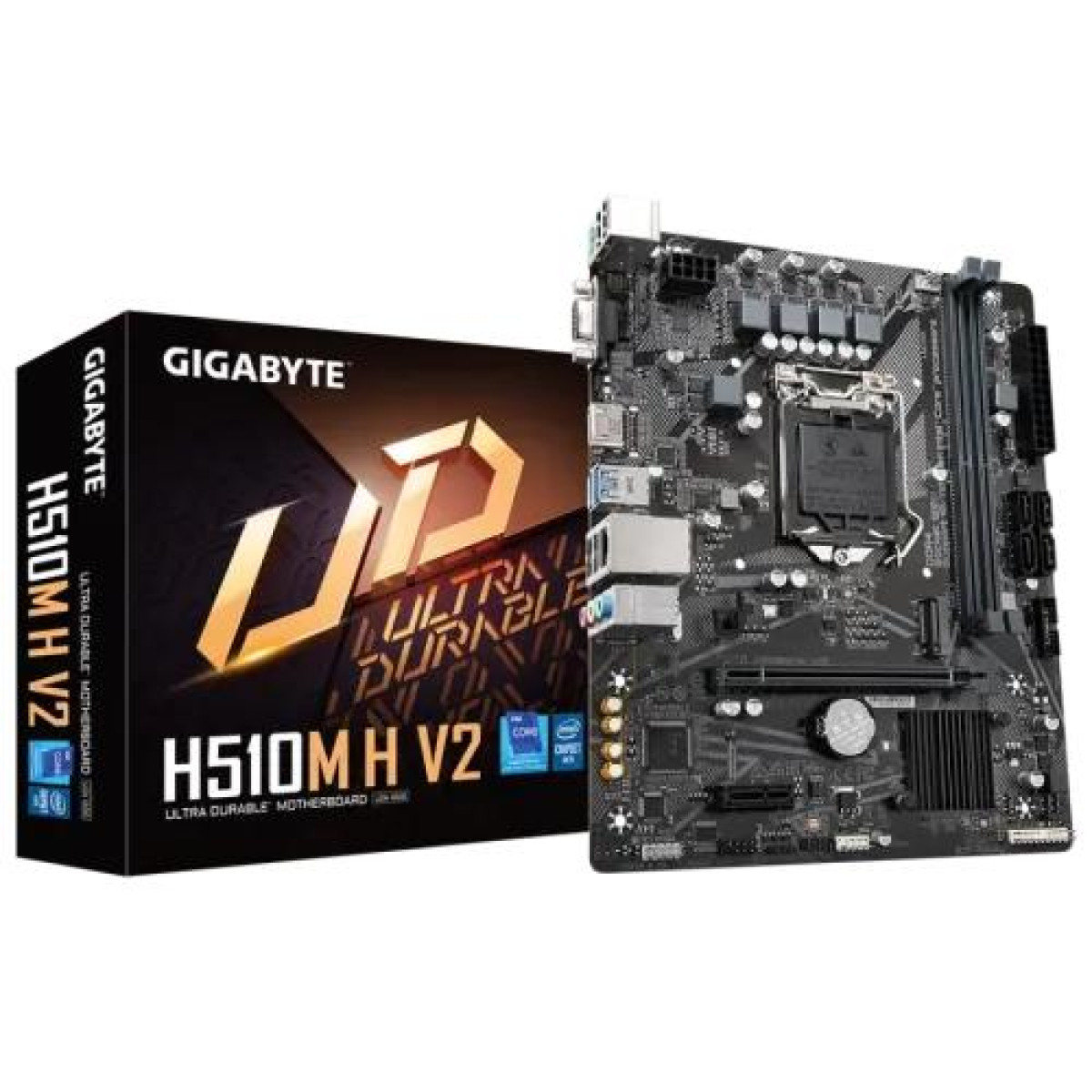

GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard

BASIC INFORMATION
Form Factor	Micro ATX Form Factor: 22.6cm x 18.5cm
Supported CPU	LGA1200 package: 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU
Chipset	Intel H470 Express Chipset
Slots	2 x DIMM
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics Specifications
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Memory Specifications
Maximum Memory	64GB (32 GB single DIMM capacity)
Supported Memory	10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.)
Type	DDR4
PORTS, CONNECTORS & SLOTS
D-Sub (s)	1 x D-Sub port
HDMI	1 x HDMI port
Internal I/O Ports	Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB (s)	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Special
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
WARRANTY
Manufacturing Warranty	03 Years Warranty

The GIGABYTE 10th Gen Micro ATX Motherboard is a compact yet powerful solution tailored to support 10th Gen Intel Core Processors. With a Dual Channel Non-ECC Unbuffered DDR4 design and two DIMM slots, it facilitates efficient and high-speed memory configurations. The motherboard offers versatile display options through 1 x D-Sub and 1 x HDMI ports, ensuring flexibility in connecting monitors and displays. Audio enthusiasts will appreciate the 8-channel HD Audio with High-Quality Audio Capacitors, delivering an immersive sound experience for multimedia and gaming. Its NVMe PCIe Gen3 x4 2280 M.2 Connector ensures swift data transfer for compatible storage devices, contributing to a more responsive system. Equipped with GbE LAN featuring Bandwidth Management, the optimizes network performance for seamless online activities. The Smart Fan 5 technology, incorporating Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP, allows efficient cooling management to maintain optimal temperatures. The user-friendly GIGABYTE APP Center provides easy access to utilities and applications for system customization and management. Additionally, the motherboard is designed with an Anti-Sulfur Resistors feature, enhancing durability and reliability, making it an ideal choice for various computing needs. In summary, the GIGABYTE H510M H V2 combines performance, connectivity, and user-friendly features, providing a solid foundation for building a robust and efficient PC system. In Bangladesh, you can get the original From Unix Network. We have a large collection of the latest to purchase for your . Order Online Or Visit your Nearest Shop to get yours at the lowest price. The GIGABYTE H510M H V2 10th Gen Motherboard comes with 3 years warranty.

Introducing the GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard, a powerhouse of performance and quality that is designed to elevate your computing experience to the next level. This motherboard is the perfect choice for computer users and students alike who demand nothing but the best in terms of speed, reliability, and functionality.

Featuring a Micro ATX form factor, this motherboard is perfect for those looking to build a compact yet powerful system. It is compatible with 10th generation Intel processors, ensuring that you can take advantage of the latest technologies and performance enhancements. With support for DDR4 memory and PCIe 3.0 slots, you can expect lightning-fast speeds and seamless multitasking capabilities.

Quality is at the forefront of the GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard, with premium components and top-notch manufacturing ensuring that this motherboard will withstand the test of time. Whether you are a casual computer user or a student with demanding workload requirements, you can trust that this motherboard will deliver exceptional performance day in and day out.

Designed with the modern user in mind, this motherboard features a range of cutting-edge technologies that enhance usability and efficiency. From advanced cooling solutions to intuitive BIOS interfaces, you can rest assured that this motherboard will meet all of your needs and then some.

Speed is of the essence when it comes to computing, and the GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard delivers on all fronts. Whether you are gaming, streaming, or working on intensive projects, you can count on this motherboard to keep up with your pace and deliver smooth, lag-free performance.

In conclusion, the GIGABYTE H510M H V2 10th Gen Micro ATX Motherboard is a top-of-the-line motherboard that is perfect for computer users and students who demand nothing but the best in terms of quality, performance, and speed. Visit Unix Network in Jashore, Bangladesh, and get your hands on this powerhouse motherboard today!
