Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 20.5cm
- Graphics: Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz
- Supported CPU: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
- Chipset: AMD A520
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Description

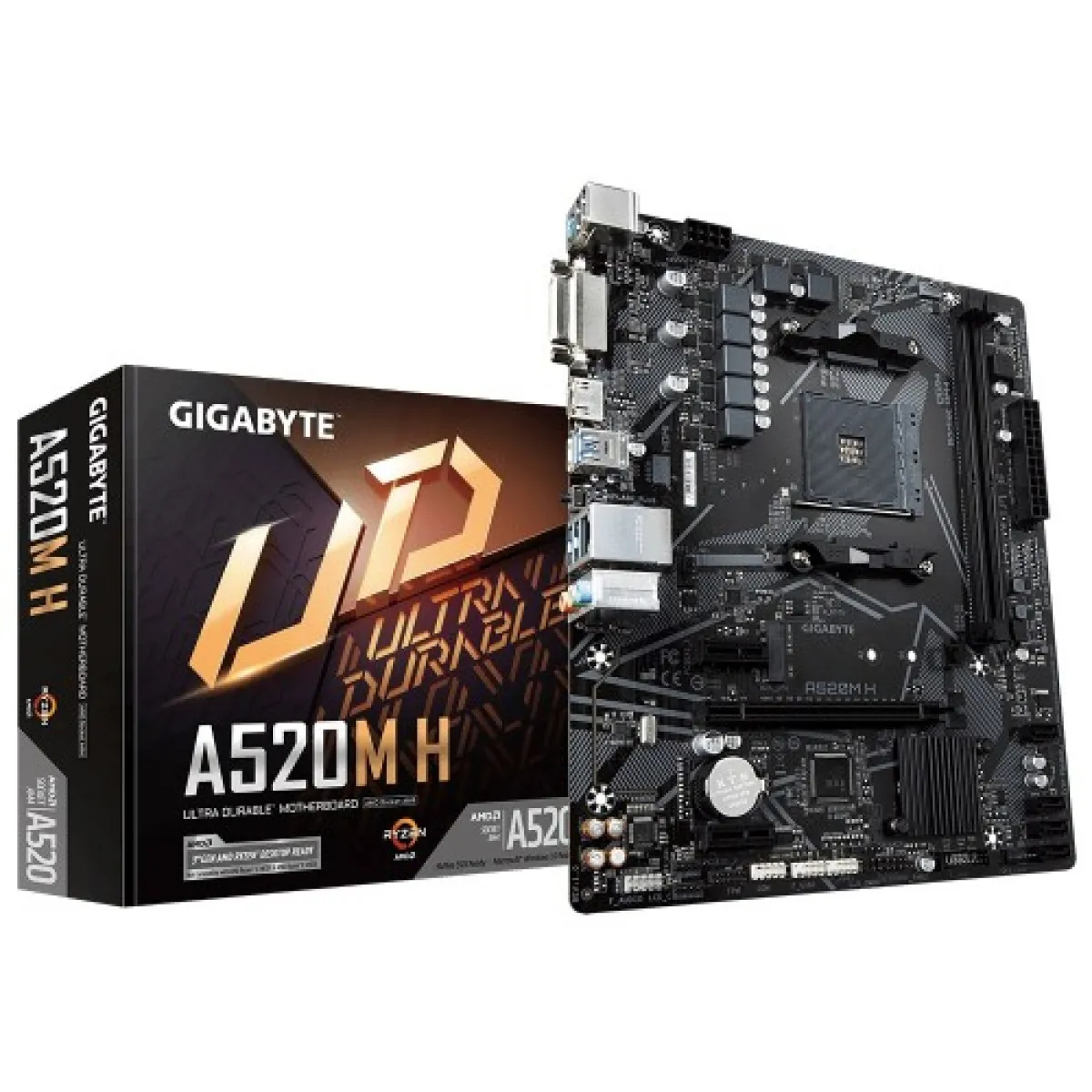

Reliable Performance with GIGABYTE A520M H Motherboard
Discover the Power of GIGABYTE A520M H AM4 Micro ATX Motherboard
The GIGABYTE A520M H AM4 Micro ATX Motherboard is designed to empower your computing experience with its robust features and reliable performance. Built for AMD Ryzen processors, this motherboard supports a wide range of CPUs, ensuring that your system is future-proof and capable of handling demanding applications.
Enhanced Connectivity: With multiple USB ports, including USB 3.2 Gen 1, and HDMI output, this motherboard offers seamless connectivity for your peripherals and displays. Whether you're gaming, working, or streaming, expect fast data transfer speeds and high-quality video output.
Stability and Durability: The A520M H is engineered with high-quality capacitors and a solid pin power connector, delivering stable power and long-lasting durability. This makes it an excellent choice for users who prioritize reliability in their systems.
Optimized for Performance: Featuring Dual Channel DDR4 memory support, this motherboard can handle heavy multitasking with ease. Enjoy smoother performance and faster load times, whether you're gaming or working on intensive applications.
Upgrade your PC with the GIGABYTE A520M H AM4 Micro ATX Motherboard and experience the perfect blend of performance, stability, and connectivity.
Upgrade Your System with GIGABYTE A520M H Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD A520 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Memory Specifications | |
| Maximum Memory | Up to 64GB (32 GB single DIMM capacity) |
| Slots | 2 x DIMM slots |
| Supported Memory | Support for 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper |
| LAN Port (s) | Realtek® GbE LAN chip (1 Gbit/ 100 Mbit) |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
