Key highlights
- Form Factor: ATX Form Factor
- Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Chipset: AMD B450 Chipset
- M.2 Socket: - 1 x M.2 slot (Key M) - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s - Supports 2242/ 2260 /2280/ 22110 storage devices
- PCI: - 1 x PCIe 3.0 x16 slot (PCI_E1) -1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) - 3 x PCIe 2.0 x1 slots
Description
High-Performance ATX Motherboard for AMD Processors

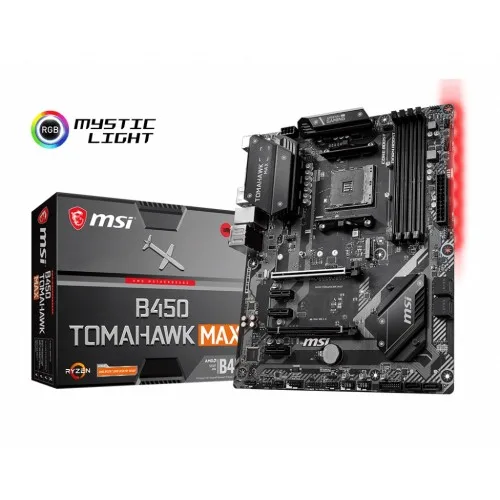

MSI B450 TOMAHAWK MAX: The Ultimate AM4 Motherboard
The MSI B450 TOMAHAWK MAX is a top-tier ATX motherboard designed for AMD processors, offering robust performance and unmatched reliability. With its advanced features, this motherboard is suitable for both gaming enthusiasts and professionals alike. The B450 chipset ensures compatibility with the latest Ryzen processors, allowing for seamless upgrades and future-proofing your build.
One of the standout features is the enhanced thermal solution. With a premium heatsink and dedicated thermal pads, the TOMAHAWK MAX maintains optimal temperatures, ensuring stable performance even under heavy load. Additionally, the motherboard supports DDR4 memory with speeds up to 4133MHz, providing lightning-fast data transfer rates essential for demanding applications.
The multiple PCIe slots allow for extensive expansion options, accommodating multiple graphics cards for superior gaming experiences. Coupled with the Audio Boost technology, you can enjoy immersive sound quality, making it ideal for gamers and content creators alike.
Furthermore, the motherboard is equipped with USB 3.2 Gen 2 ports, ensuring rapid connectivity for your peripherals. With MSI's Mystic Light support, you can customize the LED lighting to match your gaming setup, providing a visually stunning experience.
Unlock Gaming Potential with MSI B450 TOMAHAWK MAX
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Expansion Slots | |
| M.2 Socket | - 1 x M.2 slot (Key M) - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s - Supports 2242/ 2260 /2280/ 22110 storage devices |
| PCI | - 1 x PCIe 3.0 x16 slot (PCI_E1) -1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) - 3 x PCIe 2.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | - Maximum shared memory of 2048 MB |
| Graphics | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2 - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz1,2 - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors |
| Memory Specifications | |
| Maximum Size | Maximum shared memory of 2048 MB |
| Slots | 4 x DDR4 memory slots, support up to 64GB |
| Supported Memory | - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Dual channel memory architecture - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | - 7.1-Channel High Definition Audio - HD Audio Connectors - 1 x Front panel audio connector |
| DVI-D (s) | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz |
| HDMI | - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz |
| LAN Port (s) | - 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD CPU: 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devices AMD B450: 4 x SATA 6Gb/s ports |
| USB (s) | AMD B450: 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU: 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
| Special | |
| Bundled Software | -Support for Windows 10 64-bit -Support for Windows 7 64-bit -To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
