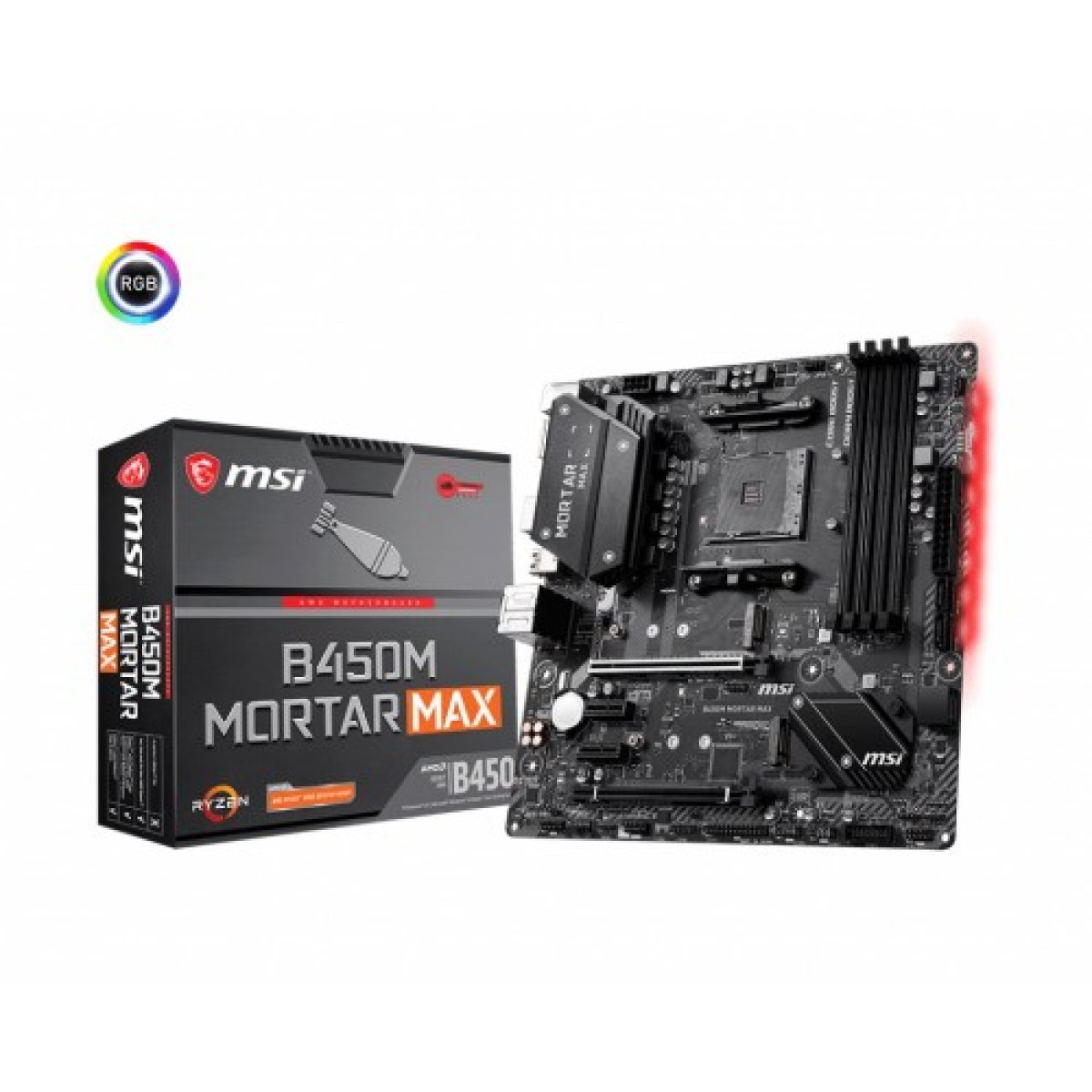

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
৳10,000
Key highlights
- Form Factor: M-ATX Form Factor
- Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- Chipset: AMD B450 Chipset
- BIOS: Flash BIOS Button
- M.2 Socket: AMD B450 Chipset: - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Description
High-Performance AMD M-ATX Board for Gamers
Unleash Your Gaming Potential with MSI B450M MORTAR MAX
The MSI B450M MORTAR MAX is designed for gamers who demand performance and reliability. This military-style AMD M-ATX gaming motherboard not only enhances the aesthetics of your rig but also provides a solid foundation for your gaming setup. With its exceptional build quality and innovative features, it effectively supports the latest Ryzen processors, ensuring you stay ahead in the competitive gaming landscape.
Equipped with DDR4 Boost technology, the motherboard enhances memory performance, allowing for smoother multitasking and faster load times. The Audio Boost feature delivers immersive sound quality, making every gaming session more enjoyable. Plus, with advanced cooling solutions, your system will run efficiently even during intense gaming marathons.
Additionally, the MSI B450M MORTAR MAX boasts multiple connectivity options, including USB 3.2 Gen 1 and M.2 slots, ensuring you have ample speed and flexibility for your devices. Its durable design promises longevity, making it an excellent investment for both casual and hardcore gamers alike.
Durable Military Style Design for Enhanced Gaming
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | M-ATX Form Factor |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| BIOS | Flash BIOS Button |
| Expansion Slots | |
| M.2 Socket | AMD B450 Chipset: - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| PCI | - 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 - 2 x PCIe 2.0 x1 slots2 |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 2048 MB |
| Graphics | Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors |
| Memory Specifications | |
| Maximum Size | - support up to 64GB |
| Slots | - 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) - 2 x PCIe 2.0 x1 slots |
| Supported Memory | - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | - 7.1-Channel High Definition Audio - Supports S/PDIF output |
| Display Port (s) | 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz |
| DVI-D (s) | Yes |
| HDMI | 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
| LAN Port (s) | 1 x Realtek RTL8111H-CG Gigabit LAN controller |
| Supported Storage | AMD B450 Chipset: - 4 x SATA 6Gb/s ports1 - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| USB (s) | AMD B450 Chipset: - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor: - 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |
| Special | |
| Bundled Software | - Support for Windows 10 64-bit - Support for Windows 7 64-bit (To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU) |
| Special Feature | RAID: AMD B450 Chipset - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe RAID |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
