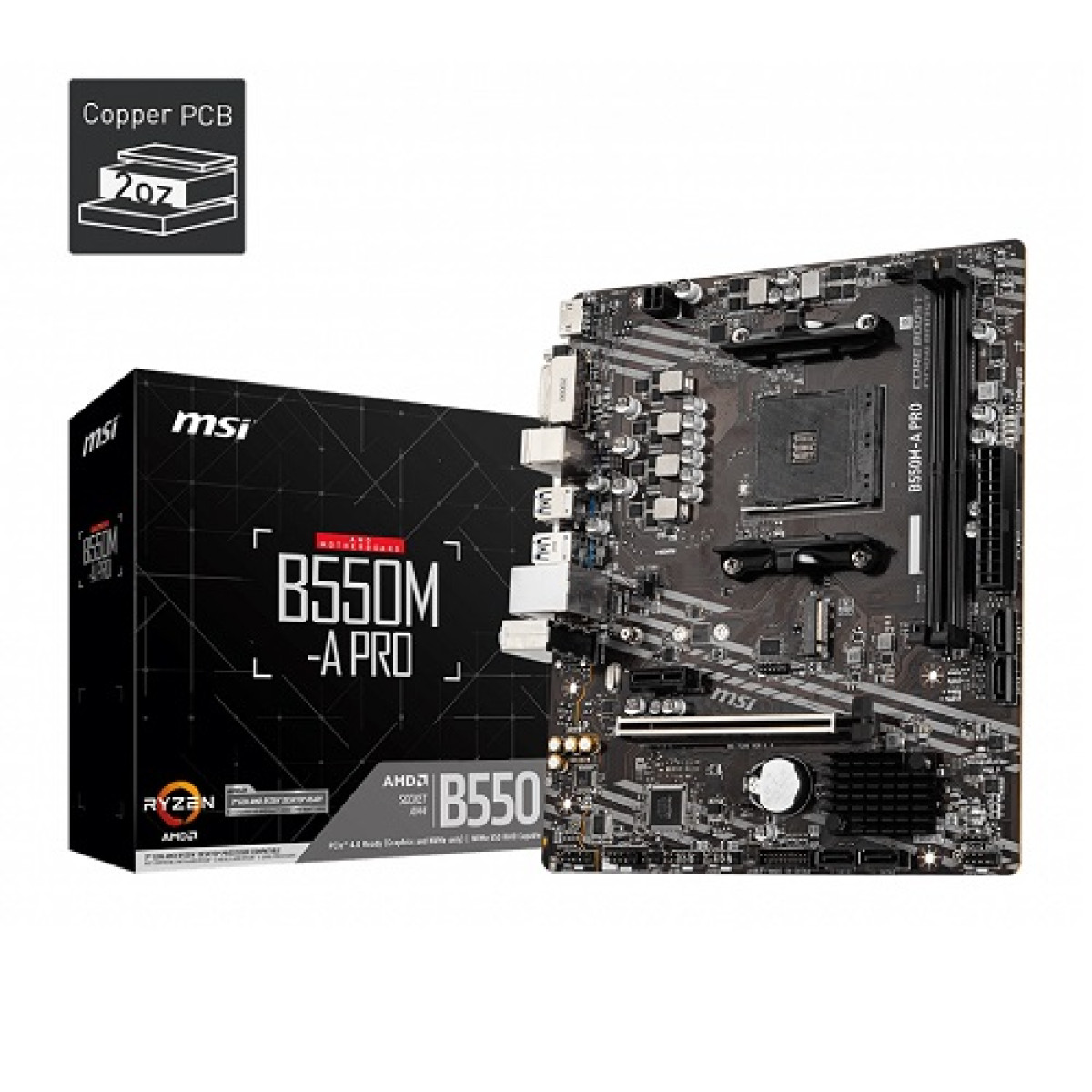

MSI B550M-A PRO AM4 Micro ATX AMD Motherboard
৳9,500
Key highlights
- Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
- Chipset: AMD B550 Chipset
- Memory: 64GB
- Slots: 1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot The supported specification depends on the installed processor.
- Audio: 7.1-Channel High Definition Audio
Description
High Performance MSI B550M-A PRO Motherboard in Jashore
Experience Unmatched Performance with the MSI B550M-A PRO AM4 Micro ATX Motherboard
The MSI B550M-A PRO motherboard is the perfect foundation for your next PC build, offering a blend of performance, durability, and cutting-edge technology. Designed for AMD Ryzen processors, this Micro ATX motherboard is ideal for gamers, content creators, and professionals in Bangladesh looking to maximize their computing experience.
With support for the latest PCIe 4.0 technology, the B550M-A PRO ensures faster data transfer speeds and enhanced graphics performance. The memory support for dual-channel DDR4 up to 4400 MHz (OC) allows users to multitask seamlessly and run demanding applications without lag.
Additionally, the MSI B550M-A PRO features advanced thermal solutions, including multiple fan headers and a robust heatsink design, ensuring your system stays cool under pressure. The inclusion of USB 3.2 Gen 2 ports enhances connectivity options, allowing for quick transfers and easy access to peripherals.
Whether you are building a home office, a gaming rig, or a multimedia workstation, the B550M-A PRO is engineered to meet your needs with its reliable performance and extensive compatibility. Elevate your computing experience today with this exceptional motherboard!
Discover the Features of MSI B550M-A PRO Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Memory | 64GB |
| Slots | 1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot The supported specification depends on the installed processor. |
| Audio | 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket |
| PCI | PCI-E X16 x 1 PCI-E (Gen4 / Gen3) |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Memory Specifications | |
| Supported Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual-channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB (s) | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| WARRANTY | |
| Manufacturing Warranty | 3 Years Warranty |
