| BASIC INFORMATION | |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x HDMI 1.4, supports a maximum resolution of 4096x2160@60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
| Chipset | AMD B550 Chipset |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) B550M PRO Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe x16 slot (PCI_E2) B550M PRO supports PCIe 4.0/3.0 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz VGA (s) 1x VGA port, supports a maximum resolution of 2048 x 1536 @50Hz, 2048 x 1280 @60Hz, 1920 x 1200 @ 60Hz |
| HDMI | 1x HDMI 1.4, supports a maximum resolution of 4096x2160@60Hz |
| LAN Port (s) | 1x Realtek RTL8111H LAN controller |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) B550M PRO Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| USB (s) | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |

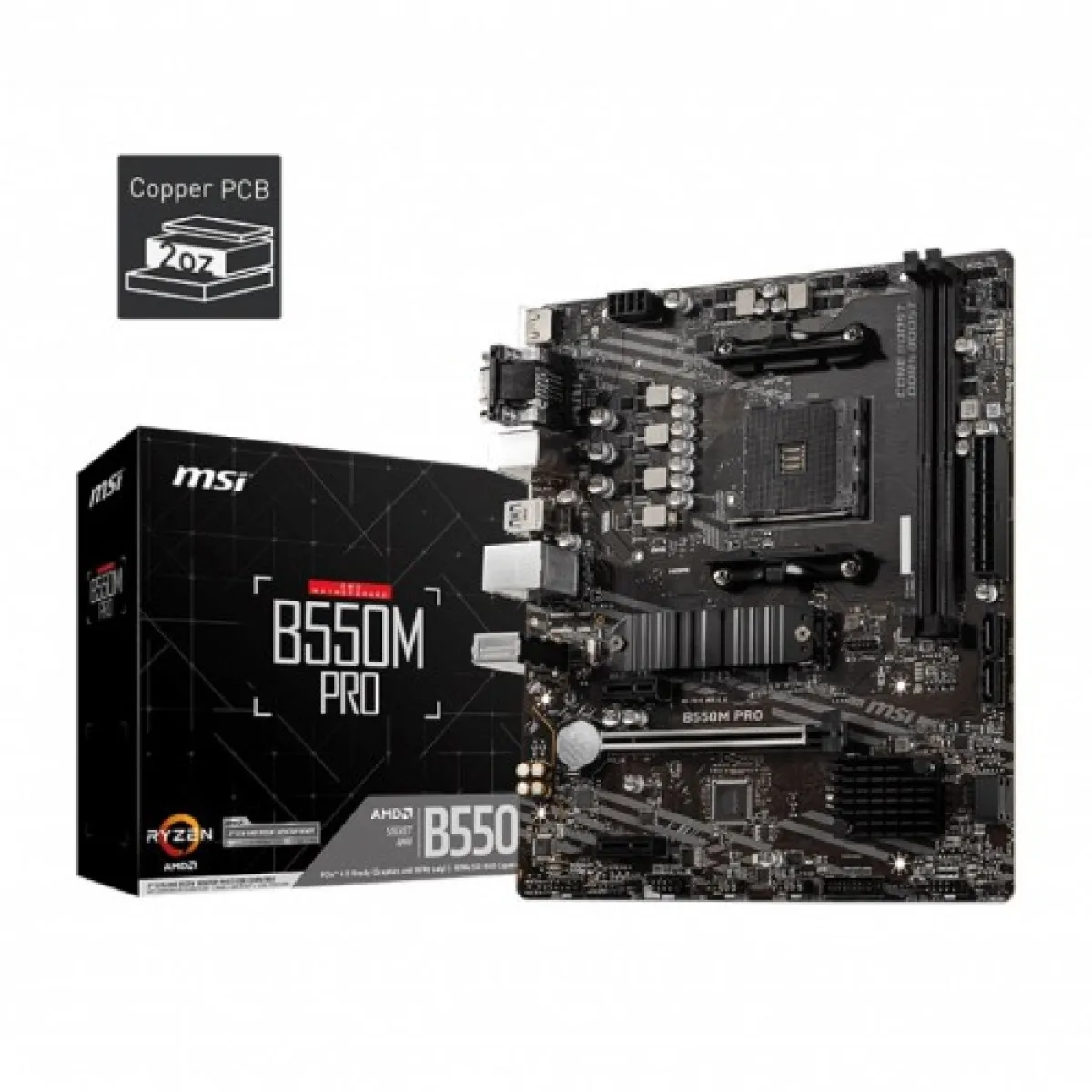

MSI B550M PRO AM4 Micro-ATX Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
CONNECTIVITY
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices. Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
EXPERIENCE MORE
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise. MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Upgrade your computer with the MSI B550M PRO AM4 Micro-ATX Motherboard, now available at Computer Shop Unix Network in Jashore, Bangladesh. This motherboard supports the latest AMD Ryzen processors, allowing for powerful performance and seamless multitasking. With a Micro-ATX form factor, this motherboard is perfect for compact builds without sacrificing performance. Enjoy lightning-fast data transfer speeds with PCIe 4.0 support, as well as high-speed connectivity options like USB 3.2 Gen 2 and dual M.2 slots. The MSI B550M PRO AM4 Micro-ATX Motherboard is a reliable and feature-packed option for your next PC build.
