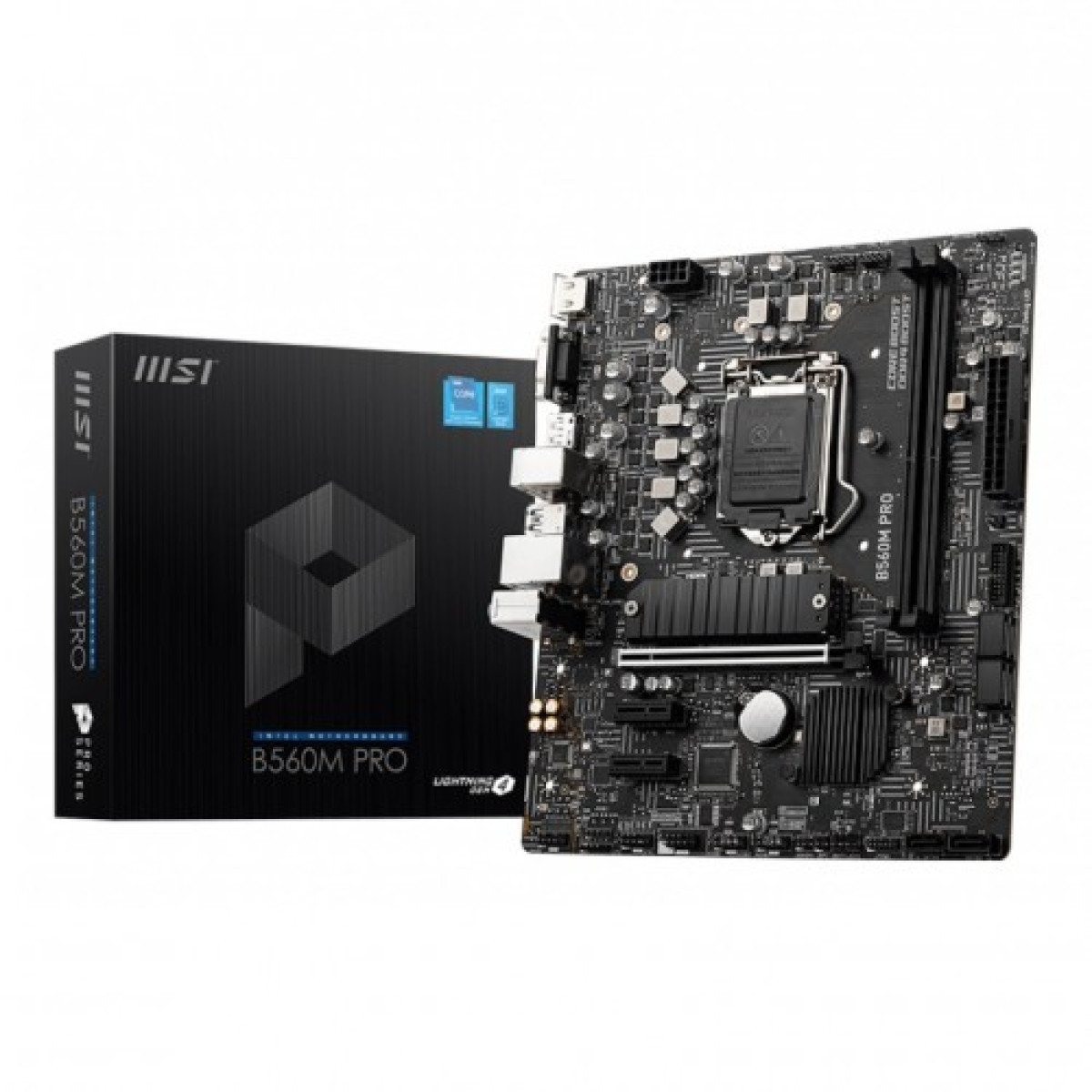

MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard
- Brand: MSI
- Product Code: B560M PRO
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) |
|---|---|
| Others | TPM (Trusted Platform Module ): 1 x TPM module connector |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
| Chipset | Intel B560 chipset |
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio |
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| Connectivity | |
| VGA | 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz, and 1920x1200 @60Hz |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) |
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset) |
| Graphics Specifications | |
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | Up to 64GB |
| Slots | 2x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)1 Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector) |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
Description
MSI B560M PRO Motherboard: Power and Performance
The MSI B560M PRO is a highly versatile Micro ATX motherboard designed for both 10th and 11th Gen Intel processors. Perfect for gamers, content creators, and everyday users, this motherboard combines exceptional performance with advanced features. With its Intel B560 chipset, users can unlock the full potential of their CPUs while enjoying seamless multitasking capabilities.
This motherboard supports dual-channel DDR4 memory, allowing for speeds of up to 3200 MHz, ensuring that your system runs smoothly even under heavy loads. The PCIe 4.0 support enhances data transfer speeds, making it ideal for high-performance graphics cards and NVMe SSDs. Additionally, the USB 3.2 Gen 2 ports provide fast connectivity for a variety of peripherals, enhancing your overall user experience.
With a focus on durability, the MSI B560M PRO features a robust thermal solution, including multiple heatsinks and a well-designed layout for optimal airflow. This ensures that your system remains cool and stable during extended usage. Furthermore, the motherboard includes advanced audio components, delivering high-quality sound for an immersive experience.
