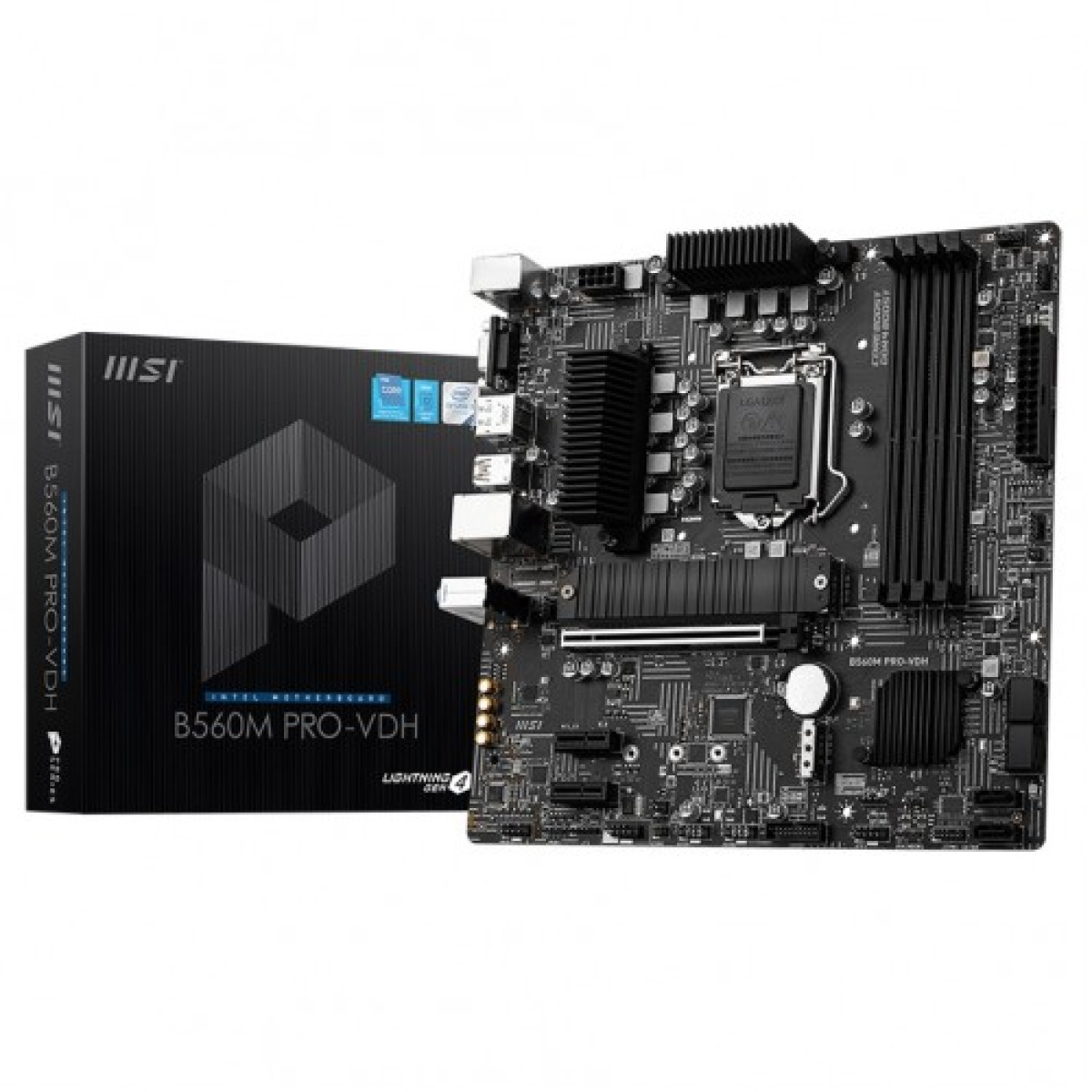

MSI B560M PRO-VDH 10th and 11th Gen Micro ATX Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz, and 1920x1200 @60Hz
- Chipset: Intel B560 chipset
- Audio: Realtek AL897 Codec 7.1-Channel High Definition Audio 1x Front panel audio connector
- BIOS: 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
Description
Affordable Micro ATX Motherboard in Jashore, Bangladesh
Upgrade Your Build with the MSI B560M PRO-VDH Motherboard
The MSI B560M PRO-VDH is a powerhouse micro ATX motherboard designed to support both 10th and 11th Gen Intel processors. With its robust features and advanced specifications, this motherboard ensures optimal performance for gamers, content creators, and professionals alike. The B560M PRO-VDH provides a seamless experience with dual-channel DDR4 memory support up to 64GB, ensuring you can multitask without any hiccups. Its PCIe 4.0 slots allow for faster data transfer rates and enhanced performance with the latest graphics cards.
This motherboard also includes USB 3.2 Gen 1 ports for quick data transfers and a variety of connectivity options, making it a perfect choice for any computer setup. The Military Class 4 components ensure durability and reliability, while the easy-to-use BIOS allows for simple system tuning. With the MSI B560M PRO-VDH, you can rest assured that your system will perform at its best.
Upgrade Your PC with MSI B560M PRO-VDH Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz, and 1920x1200 @60Hz |
| Chipset | Intel B560 chipset |
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio 1x Front panel audio connector |
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| Type | DDR4 |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slot (Key M) |
| Memory Specifications | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN controller |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| USB (s) | 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
