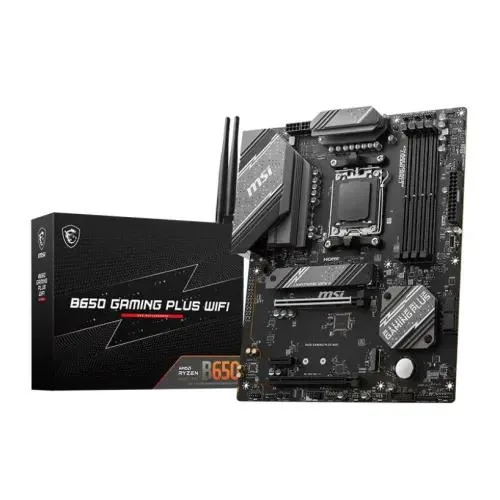

MSI B650 Gaming Plus Wi-Fi AMD AM5 Motherboard
- Brand: MSI
- Product Code: MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
- Availability: Out Of Stock
৳15,750
Out Of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | ATX 243.84mmx304.8mm |
| Supported CPU | Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Slots | 4 DIMMs |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz AMD MULTI-GPU Support |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Supported Memory | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LAN Port (s) | Realtek 8125BG 2.5G LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Introduction
The MSI B650 Gaming Plus WiFi AMD AM5 Motherboard is designed to bring exceptional performance and cutting-edge features to your gaming or workstation build. With support for AMD’s latest Ryzen 7000 series processors and the AM5 socket, this motherboard is ready for the next generation of gaming and content creation. It offers a solid foundation for building a high-performance PC, packed with the latest PCIe 5.0, Wi-Fi 6E connectivity, and DDR5 memory support. Whether you're building a budget-friendly gaming system or a more robust workstation, the MSI B650 Gaming Plus WiFi provides the tools necessary for a smooth, high-speed experience. Its modern design, combined with comprehensive cooling solutions, USB 3.2 Gen 2x2, and M.2 storage support, ensures that your PC performs at its best for years to come. Get ready to experience seamless gaming, rapid multitasking, and the ability to push your system to its limits with the MSI B650 Gaming Plus WiFi motherboard.
People Also Ask (PAA) Section
What is the socket type for the MSI B650 Gaming Plus WiFi motherboard? The MSI B650 Gaming Plus WiFi motherboard uses the AM5 socket, which is compatible with AMD Ryzen 7000 series processors. This next-gen socket allows you to take full advantage of the latest AMD architecture, offering improved performance and power efficiency.
Does the MSI B650 Gaming Plus WiFi support PCIe 5.0? Yes, the MSI B650 Gaming Plus WiFi motherboard supports PCIe 5.0, providing faster data transfer speeds, improved bandwidth, and support for next-gen graphics cards and storage devices. This feature ensures that your system is ready for future advancements in gaming and performance.
Does this motherboard support DDR5 memory? Yes, the MSI B650 Gaming Plus WiFi supports DDR5 memory, offering faster speeds and improved bandwidth compared to DDR4. This makes it ideal for users looking to maximize system performance, especially for gaming, heavy workloads, and multitasking.
Is there built-in Wi-Fi on the MSI B650 Gaming Plus WiFi motherboard? Yes, the MSI B650 Gaming Plus WiFi includes Wi-Fi 6E support, ensuring faster, more stable wireless connections. This allows for seamless online gaming, streaming, and general internet usage without the need for a separate network card.
Can I install multiple GPUs on the MSI B650 Gaming Plus WiFi? Yes, the MSI B650 Gaming Plus WiFi motherboard has dual PCIe x16 slots, allowing for multi-GPU setups in supported configurations. You can use technologies like NVIDIA SLI or AMD CrossFire for enhanced graphical performance, provided you have compatible GPUs.
What cooling options are supported by the MSI B650 Gaming Plus WiFi? The MSI B650 Gaming Plus WiFi comes with multiple fan headers and M.2 heatsinks, providing excellent cooling for your components. It also features a robust power delivery system to keep your CPU cool, even under load, ensuring stable performance for overclocking or heavy gaming.
Use Cases and Benefits
High-End Gaming Systems: The MSI B650 Gaming Plus WiFi motherboard is perfect for building a gaming powerhouse. With support for AMD Ryzen 7000 series CPUs, PCIe 5.0, DDR5 memory, and Wi-Fi 6E, it offers all the features you need for top-tier gaming. It provides ultra-fast data transfer speeds and robust connectivity, ensuring a smooth and responsive gaming experience.
Content Creation and Workstations: For content creators working on demanding projects like video editing, 3D rendering, or graphic design, the MSI B650 Gaming Plus WiFi provides a solid base. The support for high-speed DDR5 memory and PCIe 5.0 ensures that your system runs efficiently while handling multiple tasks. The Wi-Fi 6E support also allows for fast uploads and downloads when working with large files.
Future-Proofed Builds: The MSI B650 Gaming Plus WiFi is an excellent choice for those looking to build a future-proof system. With PCIe 5.0 and DDR5 support, this motherboard is ready for the next generation of hardware, ensuring your system can handle future advancements in gaming, graphics, and storage.
Overclocking Enthusiasts: The MSI B650 Gaming Plus WiFi is equipped with a robust VRM power delivery system, making it ideal for overclocking. If you are looking to get the most out of your AMD Ryzen 7000 series processor, this motherboard provides the necessary features, such as excellent cooling options, stable power, and support for high-speed memory, making it an overclocking-friendly choice.
Seamless Online Gaming and Streaming: The Wi-Fi 6E capability ensures that the MSI B650 Gaming Plus WiFi motherboard is perfect for streamers and competitive gamers who require a stable and low-latency internet connection. Whether you are streaming on platforms like Twitch or playing multiplayer games, the fast wireless speeds keep you connected without interruptions.
Competitive Advantages
The MSI B650 Gaming Plus WiFi motherboard stands out in its class due to its cutting-edge features such as PCIe 5.0, DDR5 support, and Wi-Fi 6E, making it a future-proof choice for both gamers and content creators. Unlike many budget-friendly motherboards, it doesn’t compromise on performance, offering high-speed connectivity, superior cooling solutions, and a solid foundation for overclocking. When compared to other motherboards in the same price range, the MSI B650 Gaming Plus WiFi offers a competitive edge by providing more advanced connectivity, greater power efficiency, and superior RAM support for building powerful, high-performance systems.
Introducing the MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard, a high-performance gaming motherboard designed to take your gaming experience to the next level. This motherboard supports AMD AM5 processors, providing powerful performance for demanding games and applications. Equipped with built-in Wi-Fi capabilities, you can enjoy seamless online gaming without the need for additional adapters.
The MSI B650 GAMING PLUS WIFI motherboard features a sleek and stylish design, with RGB lighting accents that can be customised to match your gaming setup. With support for PCIe 5.0 and multiple M.2 slots, you can easily upgrade your system with high-speed storage and graphics cards.
This motherboard also includes support for the latest connectivity standards, including USB 3.2 Gen 2 and 2.5Gb LAN, ensuring fast and stable connections for all your devices. Whether you're a casual gamer or a hardcore enthusiast, the MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard is the perfect choice for your gaming rig.
