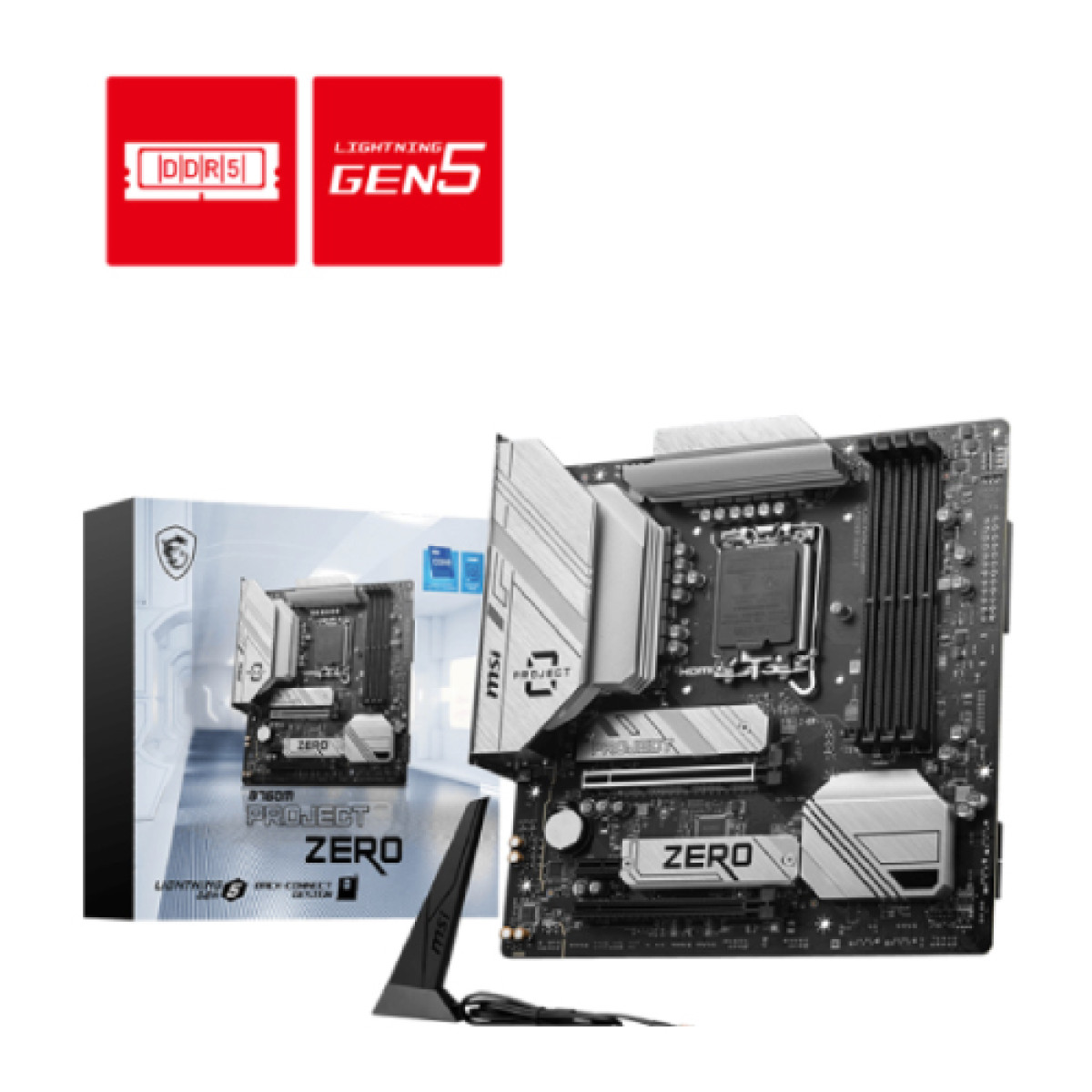

MSI B760M PROJECT ZERO m-ATX Motherboard
- Brand:MSI
- Product Code: B760M PROJECT ZERO
- Availability:In Stock
- Updated:
ক্যাম্পেইনের পণ্যে অন্য কোন অফার থাকলে সম্মানিত ক্রেতারা যেকোন একটি অফার উপভোগ করতে পারবেন।
Specification
| BASIC INFORMATION | |
| Form Factor | mATX 243.84mmx243.84mm |
|---|---|
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Slots | 4x DIMM |
| Audio | Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 1x M.2 |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics Specifications | |
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI 1.4 |
| Internal I/O Ports | Internal I/O Ports: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| LAN Port (s) | Realtek 2.5Gbps LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Special | |
| Special Feature | 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Introducing the MSI B760M PROJECT ZERO m-ATX Motherboard
The MSI B760M PROJECT ZERO m-ATX Motherboard is an exceptional piece of hardware designed to meet the demands of modern computing. Whether you're a gamer, a content creator, or a professional seeking to build a robust workstation, this motherboard offers a perfect blend of performance, reliability, and advanced features. With its sleek design and innovative technology, it not only enhances the aesthetic of your build but also contributes to superior performance.
One of the standout features of the B760M PROJECT ZERO is its support for the latest Intel processors, enabling users to leverage cutting-edge performance for both gaming and productivity tasks. The motherboard is engineered to provide stable power delivery, ensuring that your CPU operates at peak efficiency. Additionally, it supports high-speed DDR4 memory, allowing for faster data transfer rates and improved multitasking capabilities.
This motherboard is also equipped with multiple expansion slots, making it easy for users to add additional components such as GPUs, SSDs, and network cards. The intuitive layout and clear labeling simplify the installation process, making it accessible even for those new to building PCs. Furthermore, the B760M PROJECT ZERO includes advanced cooling solutions that prevent overheating during intensive tasks, thereby enhancing longevity and reliability.
For gamers, this motherboard is a dream come true. It supports high-refresh-rate displays and is optimized for low-latency gaming, ensuring a competitive edge in fast-paced environments. The built-in audio technology delivers immersive sound quality, enhancing your gaming experience.
Investing in the MSI B760M PROJECT ZERO means choosing a motherboard that is not only high-performing but also future-proof. With its extensive features and compatibility, it guarantees exceptional value for money. As a customer in Jashore, Bangladesh, you will appreciate the local support and availability of components, making it easier to upgrade or repair your system when necessary.
In conclusion, the MSI B760M PROJECT ZERO m-ATX Motherboard is an excellent choice for anyone looking to build a powerful and efficient computing system. Its combination of advanced features, user-friendly design, and local market advantages makes it a top contender in the motherboard category.
