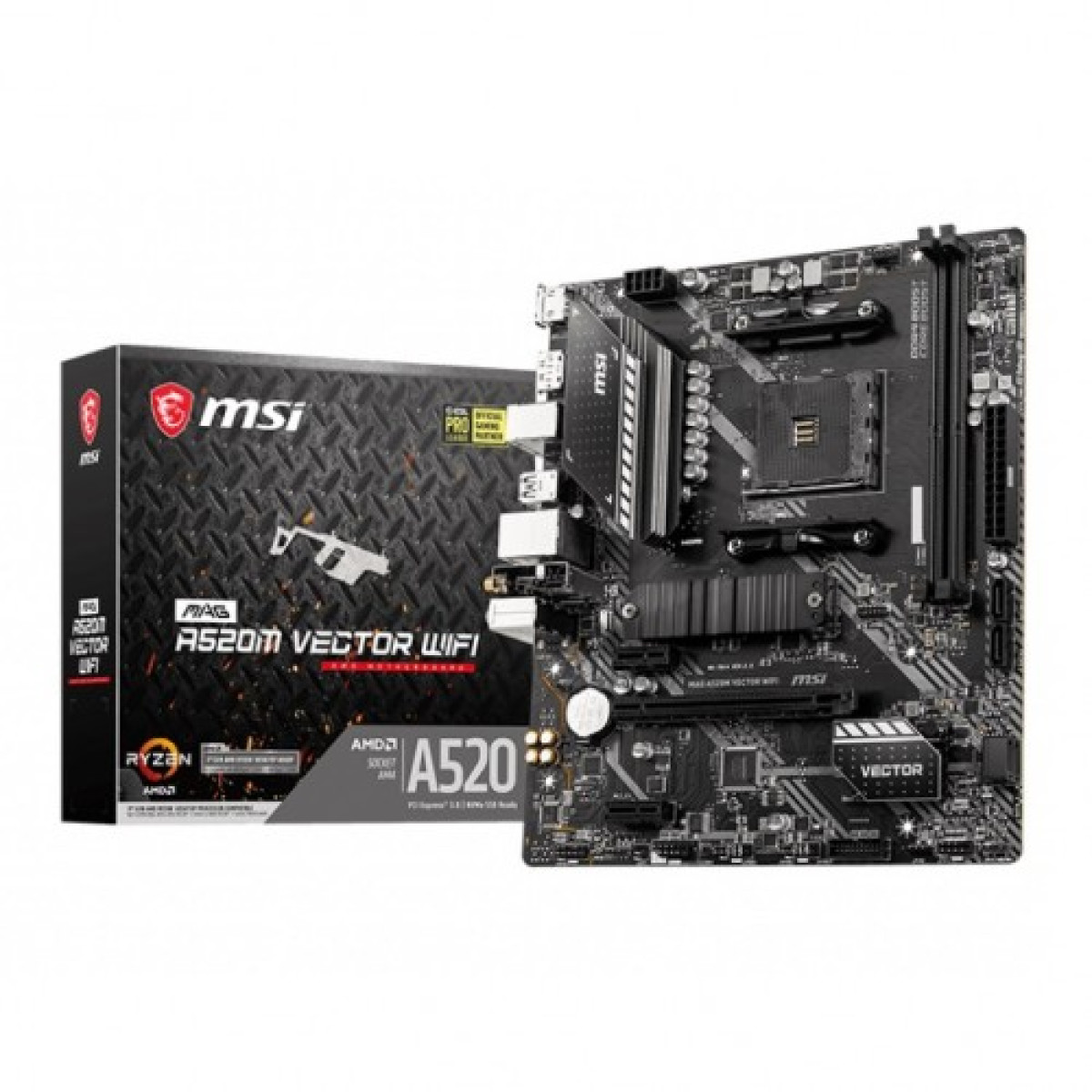

MSI MAG A520M Vector Wi-Fi AM4 Micro-ATX Motherboard showcasing its design and features

Buy MSI MAG A520M Vector Wi-Fi AM4 Motherboard in Jashore

Brand: MSI
Product Code: MSI MAG A520M Vector Wi-Fi
Availability: Out Of Stock

৳0

Out Of Stock

Specification

BASIC INFORMATION
Form Factor	M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD B520
Memory	64GB
Slots	2x DDR4 memory slots
Audio	Realtek ALC892 Codec 7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket	1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
PCI	1x PCIe x16 slot (PCI_E2) 2x PCIe 3.0 x1 slots
Graphics Specifications
Max Shared Memory	2048 MB
Graphics	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Memory Specifications
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Type	Dual-channel memory architecture
PORTS, CONNECTORS & SLOTS
Display Port (s)	1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
LAN Port (s)	1x Realtek RTL8111H LAN controller
Supported Storage	AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper
Special
Special Feature	WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168 -Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. -Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
WARRANTY
Manufacturing Warranty	03 Years Warranty

Description

Experience Unmatched Performance with the MSI MAG A520M Vector Wi-Fi Motherboard

The MSI MAG A520M Vector Wi-Fi AM4 AMD Micro-ATX Motherboard is designed for gamers and PC enthusiasts who demand high performance and reliability. Featuring the latest AMD AM4 socket, this motherboard supports the latest Ryzen processors, allowing you to unleash your system's full potential. Integrated Wi-Fi connectivity ensures that you stay connected without the hassle of additional cables. Plus, with a micro-ATX form factor, it fits perfectly in compact cases while providing ample expansion options.

This motherboard is equipped with high-quality capacitors and a robust design to ensure durability and longevity. The premium thermal solution keeps your system cool even under heavy loads, making it ideal for long gaming sessions. With support for DDR4 memory and advanced overclocking features, you're guaranteed a smooth and responsive experience whether you're gaming, streaming, or multitasking.

Furthermore, the MSI MAG A520M Vector Wi-Fi comes with USB 3.2 Gen 1 ports for high-speed data transfer and multiple display outputs for versatile connectivity options. Enjoy real-time audio enhancements and an immersive gaming experience with the integrated audio solution. Elevate your PC build with this state-of-the-art motherboard that provides everything you need for a powerful and efficient setup.
