Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Raid controller: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Supported CPU: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- Chipset: AMD B550 Chipset
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
High-Performance B550 ATX Motherboard with Wi-Fi

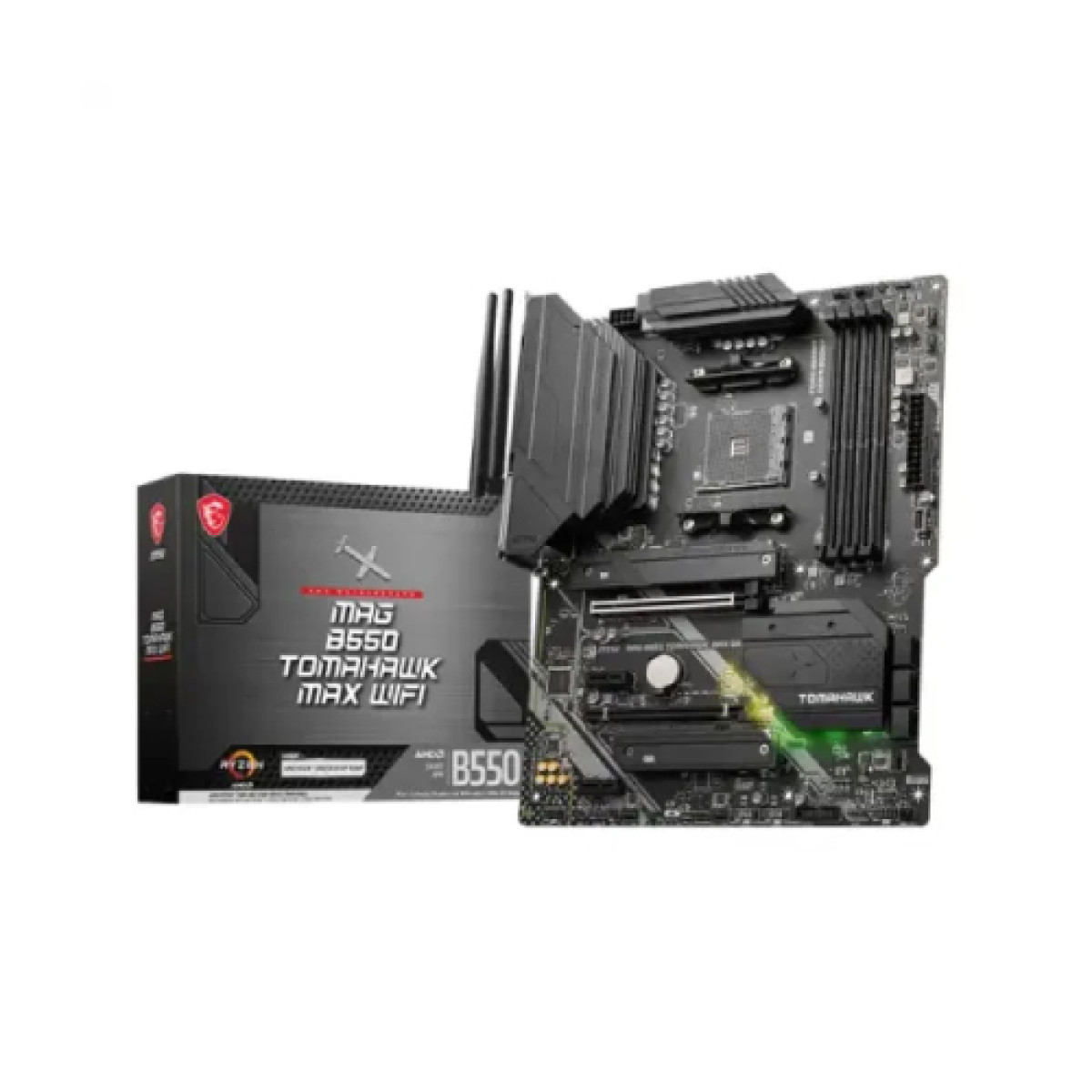

Unleash Your Gaming Potential with MSI MAG B550 TOMAHAWK MAX WIFI
The MSI MAG B550 TOMAHAWK MAX WIFI is a top-tier AMD AM4 ATX motherboard designed specifically for gamers and PC enthusiasts who demand high performance and reliability. With its advanced features and robust build quality, this motherboard is not just a piece of hardware; it is a gateway to an unparalleled gaming experience. Equipped with the latest B550 chipset, this motherboard supports a wide range of Ryzen processors, ensuring that you can harness the full power of AMD's cutting-edge technology.
Key Benefits of MSI MAG B550 TOMAHAWK MAX WIFI:
- High-Speed Connectivity: The integrated Wi-Fi 6 technology ensures lightning-fast internet access, reducing latency and lag during online gaming.
- Enhanced Cooling Solutions: With multiple fan headers and an innovative thermal design, this motherboard maintains optimal temperatures even during intensive gaming sessions.
- Versatile Expansion Options: Featuring PCIe 4.0 slots, multiple USB ports, and support for high-speed M.2 SSDs, users can easily upgrade their systems to meet future demands.
- Robust Audio Experience: The motherboard includes a premium audio solution that delivers crystal-clear sound and enhances the overall gaming experience.
This motherboard is ideal for gamers, content creators, and professionals who require a reliable and powerful platform for their computing needs. The MSI MAG B550 TOMAHAWK MAX WIFI excels in various use cases, including high-performance gaming, video editing, and multitasking. By choosing this motherboard, customers are investing in a product that provides immediate benefits, such as enhanced performance and superior connectivity.
Why You Should Buy This Product: In the competitive landscape of computer hardware, the MSI MAG B550 TOMAHAWK MAX WIFI stands out due to its exceptional build quality, user-friendly features, and comprehensive support for the latest technologies. It is a worthy investment for anyone looking to build or upgrade their PC in Jashore, Bangladesh.
Ultimate Gaming Experience with MSI MAG B550 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Raid controller | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Chipset | AMD B550 Chipset |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Connectivity | |
| HDMI | 1x HDMI |
| Expansion Slots | |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper TPM (Trusted Platform Module ) 1x TPM module connector |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
