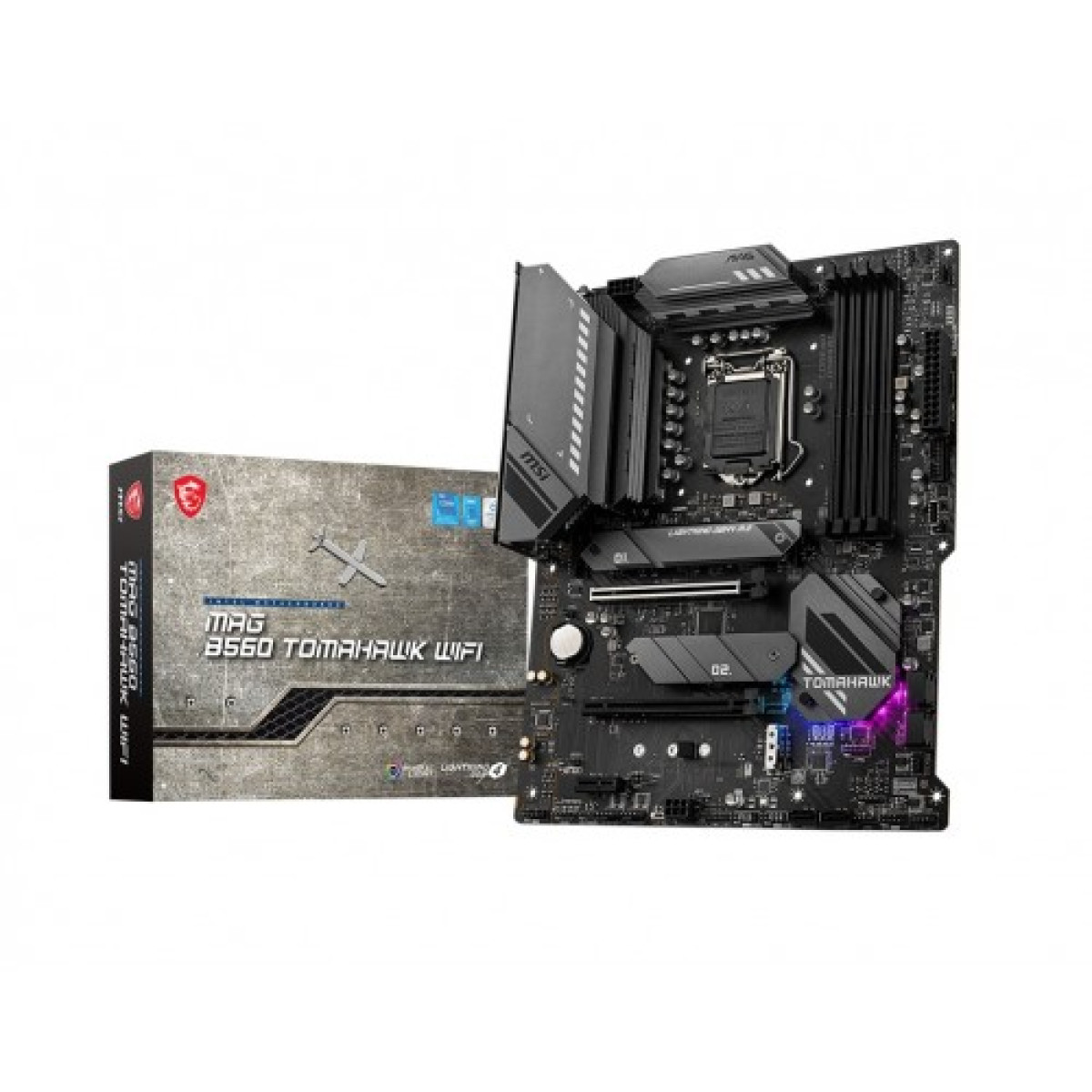

MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
৳18,300
Key highlights
- Form Factor: ATX
- Others: 1x TPM module connector
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processor socket LGA1200
- Chipset: Intel B560 Chipset
- Audio: 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Upgrade Your PC with MSI MAG B560 Tomahawk ATX Motherboard
Elevate Your Gaming Experience with MSI MAG B560 Tomahawk WiFi
The MSI MAG B560 Tomahawk WiFi motherboard is designed for gamers and professionals who seek top-tier performance and stability. Supporting both Intel's 10th and 11th Gen processors, this ATX motherboard is a powerful addition to any build. With its robust construction and cutting-edge features, it provides a reliable foundation for your computing needs.
Key Features:
- WiFi 6 Technology: Enjoy faster internet speeds and improved connectivity with integrated WiFi 6 support.
- Enhanced Cooling Solutions: Multiple fan headers and a heat-pipe design ensure optimal cooling during intense gaming sessions.
- High-Quality Capacitors: The motherboard is equipped with high-quality components that enhance durability and performance.
- Easy BIOS Update: With the Click BIOS 5 feature, updating your BIOS is simple and straightforward.
This motherboard is perfect for gamers looking for reliability and performance while also being compatible with a wide range of components. Its sleek design and customizable RGB lighting make it a visually appealing choice for any build.
Features of MSI MAG B560 Tomahawk Motherboard Explained
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX |
| Others | 1x TPM module connector |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processor socket LGA1200 |
| Chipset | Intel B560 Chipset |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots (Key M) |
| PCI | 2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | up to 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | - Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) - Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) - Max overclocking frequency: - 1DPC 1R Max speed up to 5066 MHz - 1DPC 2R Max speed up to 4600+ MHz - 2DPC 1R Max speed up to 4266+ MHz - 2DPC 2R Max speed up to 4000+ MHz - Supports Dual-Channel mode - Supports non-ECC, un-buffered memory - Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | - 6x SATA 6Gb/s ports (from B560 chipset) 1 - 3x M.2 slots (Key M) - M2_1 slot (from CPU) - Available only on 11th Gen Intel CPU - Supports up to PCIe 4.0 x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices -M2_21 slot (from B560 chipset) - Supports up to PCIe 3.0 x4 - Supports SATA up to 6Gb/s - Supports 2242/ 2260/ 2280 storage devices - M2_3 slot (from B560 chipset) - Supports up to PCIe 3.0 x4 - Supports 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready2 - Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | - 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) - 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) - 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) - 4x USB 2.0 ports on the back panel Hub-GL850G - 4x USB 2.0 ports available through the internal connectors |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
