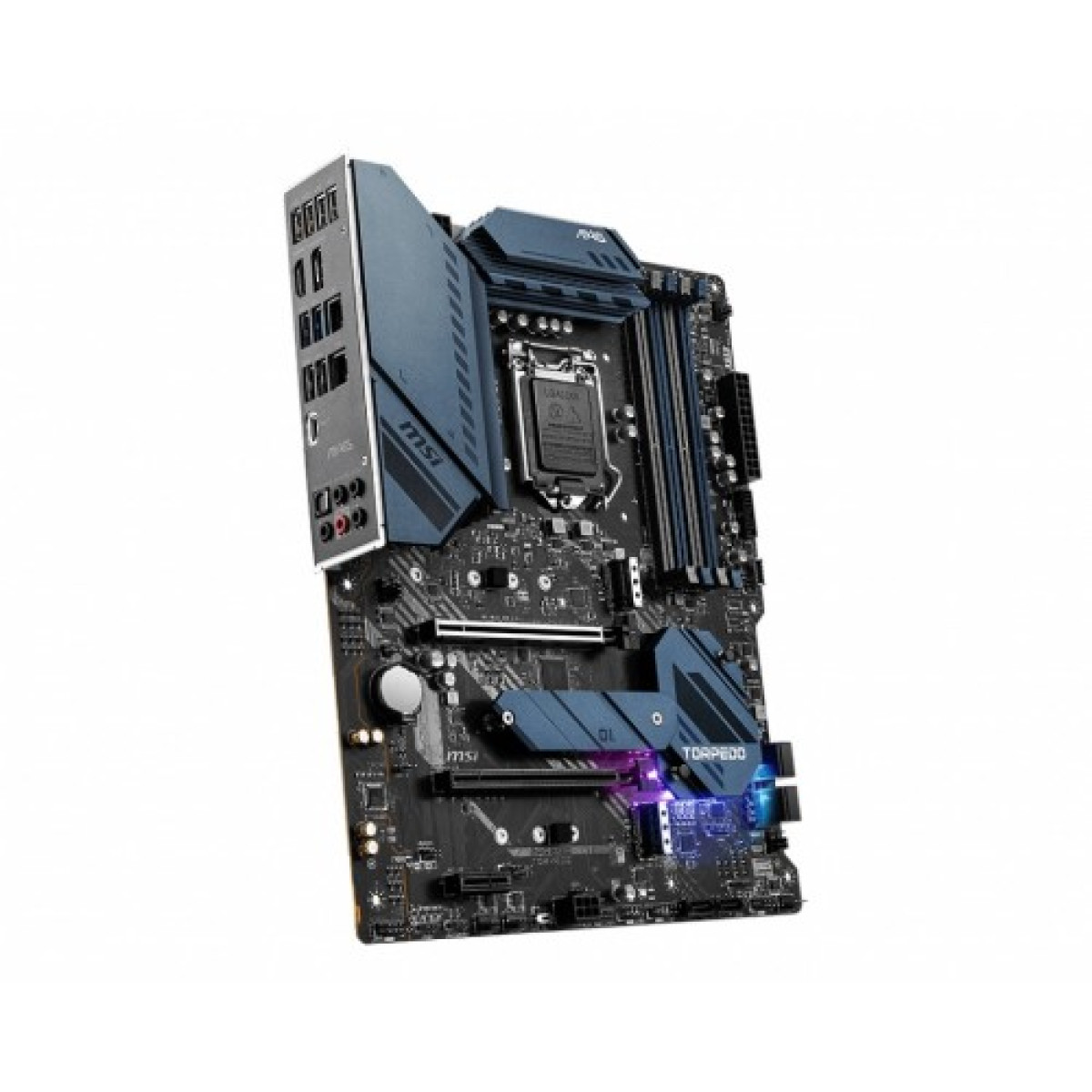

MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor
- Others: 1x TPM module connector
- Supported CPU: Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 Processor socket LGA1200
- Chipset: Intel B560 Chipset
- Audio: 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Top Features of the MSI MAG B560 TORPEDO Motherboard
MSI MAG B560 TORPEDO: The Ultimate Motherboard for Gamers
The MSI MAG B560 TORPEDO is designed to deliver exceptional performance for both Intel 10th and 11th Generation processors. This ATX motherboard is perfect for gamers and PC enthusiasts in Bangladesh looking to build a powerful, yet affordable gaming rig. With its advanced features, including PCIe 4.0 support, high-speed memory compatibility, and a robust cooling solution, the MAG B560 TORPEDO ensures that your system runs smoothly even during the most intense gaming sessions.
One of the standout features of this motherboard is its Lightning Gen 4 M.2 slots, which provide lightning-fast data transfer speeds, crucial for loading games and applications quickly. The board also integrates MSI's Audio Boost technology, delivering superior audio quality for an immersive gaming experience. With its Durable Steel Armor PCIe slots, you can rest assured that your components are well protected against heavy graphics cards.
Additionally, the MAG B560 TORPEDO supports USB 3.2 Gen 2 for fast connectivity options, making it easier to connect your devices without lag. Whether you’re a casual gamer or a hardcore PC builder, this motherboard offers great value and reliability.
Upgrade Your PC with MSI MAG B560 TORPEDO ATX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor |
| Others | 1x TPM module connector |
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 Processor socket LGA1200 |
| Chipset | Intel B560 Chipset |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots (Key M) |
| PCI | 2x PCIe x16 slots 1x PCIe 3.0 x1 slot (from B560 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Slots | 4x DDR4 memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1x Front panel audio connector |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller 1x Intel I219V 1Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (from B560 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
| USB (s) | 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panelG Hub-GL850G 4x USB 2.0 ports available through the internal connectors |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
