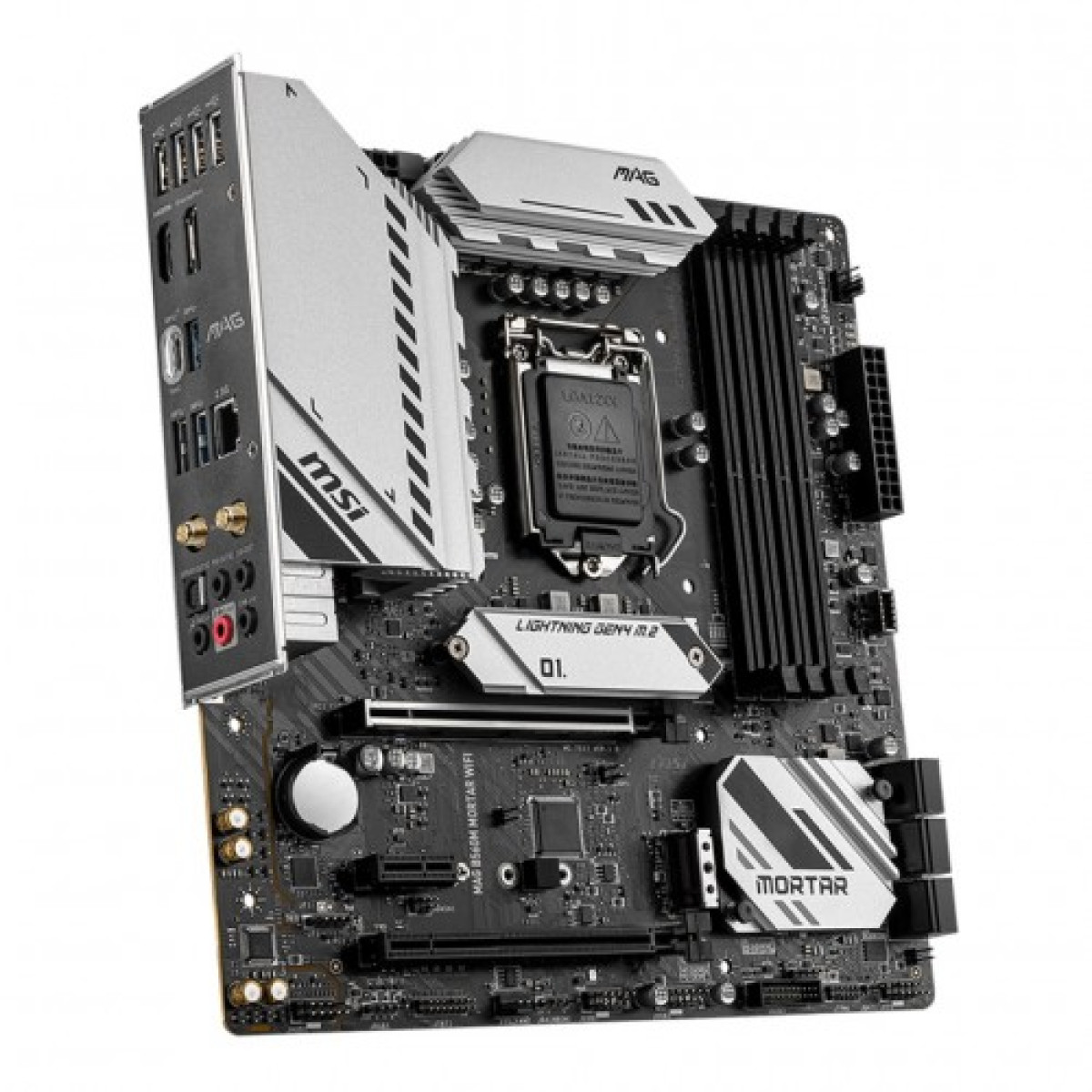

MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor
- Others: 1x TPM module connector
- Wireless: Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
- Supported CPU: Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket
- Chipset: Intel B560 Chipset
Description
Explore 10th and 11th Gen Micro ATX Motherboard Features
MSI MAG B560M MORTAR WIFI Motherboard
Experience exceptional performance with the MSI MAG B560M MORTAR WIFI Micro ATX Motherboard, engineered for both 10th and 11th Gen Intel processors. This motherboard brings cutting-edge technology to your gaming or productivity setup, featuring robust power delivery, advanced cooling solutions, and unmatched connectivity options. Stay connected with built-in Wi-Fi 6, ensuring fast and reliable internet access for online gaming or streaming. Expand your horizons with multiple USB ports and PCIe slots, allowing for customization and upgrades as your needs evolve.
The MSI MAG B560M MORTAR WIFI excels in heat dissipation thanks to its high-quality thermal solution, which keeps your system running smoothly even during intense workloads. With a sleek design and military-grade components, this motherboard not only performs well but looks great in any build. Whether you're a gamer, content creator, or professional, this motherboard will help you achieve your goals with efficiency and style.
Upgrade Your Build with MSI MAG B560M MORTAR WIFI
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor |
| Others | 1x TPM module connector |
| Wireless | Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| Supported CPU | Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket |
| Chipset | Intel B560 Chipset |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) |
| PCI | 2x PCIe x16 slots Support x16/ x4 |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Memory | Up to 128GB |
| Slots | 4 x DIMM slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | 1x Front panel audio connector |
| Display Port (s) | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) -M2 slot 1: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices -M2 slot 2 (From B560 chipset): Supports up to PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready |
| USB (s) | Intel B560 Chipset: 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector 4x USB 2.0 ports on the back panel USB Hubs ASM1074: 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Hub-GL850G: 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning Controller Connector 1x TBT connector (Supports RTD3) |
| WARRANTY | |
| Manufacturing Warranty | 03 years Warranty |
