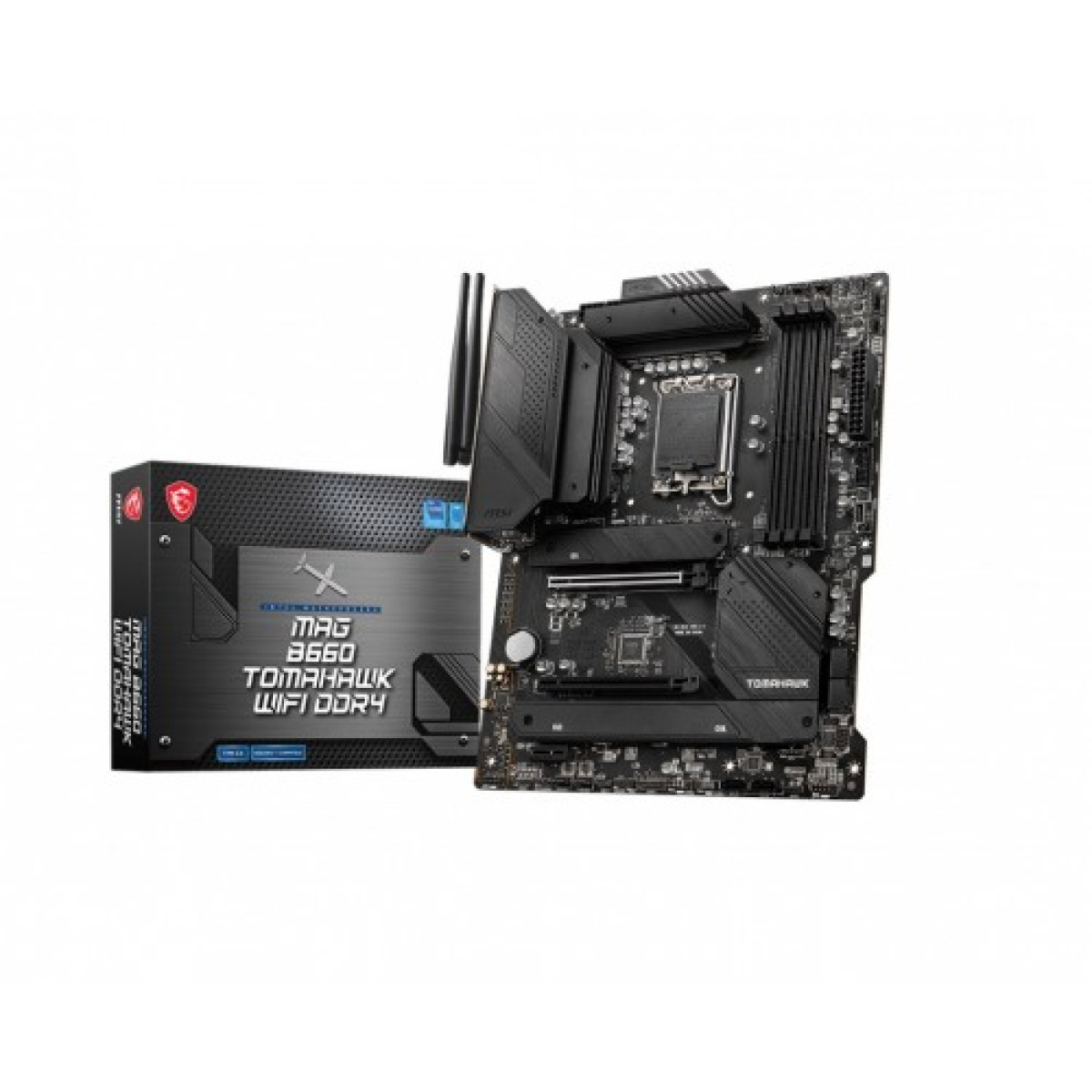

MSI MAG B660 TOMAHAWK WIFI DDR4 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology
- Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700
- Chipset: Processor socket LGA1700
- Audio: HD Audio Connectors 1x Front panel audio connector
Description
High-Performance ATX Motherboard for 12th Gen Intel CPUs
Elevate Your Gaming Experience with MSI MAG B660 TOMAHAWK WIFI
The MSI MAG B660 TOMAHAWK WIFI motherboard is engineered to deliver top-tier performance and reliability for gamers and PC builders alike. Designed with the 12th Gen Intel Core processors in mind, this ATX motherboard supports cutting-edge technology and high-speed connectivity. With its robust build quality, the TOMAHAWK series stands out for its durability and performance under pressure.
This motherboard features Wi-Fi 6 technology, which ensures lightning-fast internet speeds and stability during online gaming sessions. Additionally, the DDR4 RAM support allows for faster data transfer rates, enhancing overall system performance. Enhanced thermal management with dedicated heat sinks ensures that your components stay cool even during intense gaming marathons.
Equipped with multiple M.2 slots and USB 3.2 Gen 2 ports, the MSI MAG B660 TOMAHAWK WIFI provides ample options for expansion and connectivity. Whether you’re a casual gamer or a hardcore enthusiast, this motherboard offers the features you need to build a powerful and efficient gaming rig.
Discover Top Features of MSI MAG B660 TOMAHAWK WIFI
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700 |
| Chipset | Processor socket LGA1700 |
| Audio | HD Audio Connectors 1x Front panel audio connector |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 2x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 4.0 PCI_E2 (From B660 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4x DDR4 memory slots |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | HDMI 2.1 Port |
| LAN Port (s) | 1x Realtek RTL8125B-CG 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From B660 chipset) M2_2 supports up to PCIe 4.0 x4 M2_3 supports up to PCIe 4.0 x2 1 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
| Wireless Communication module | The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
