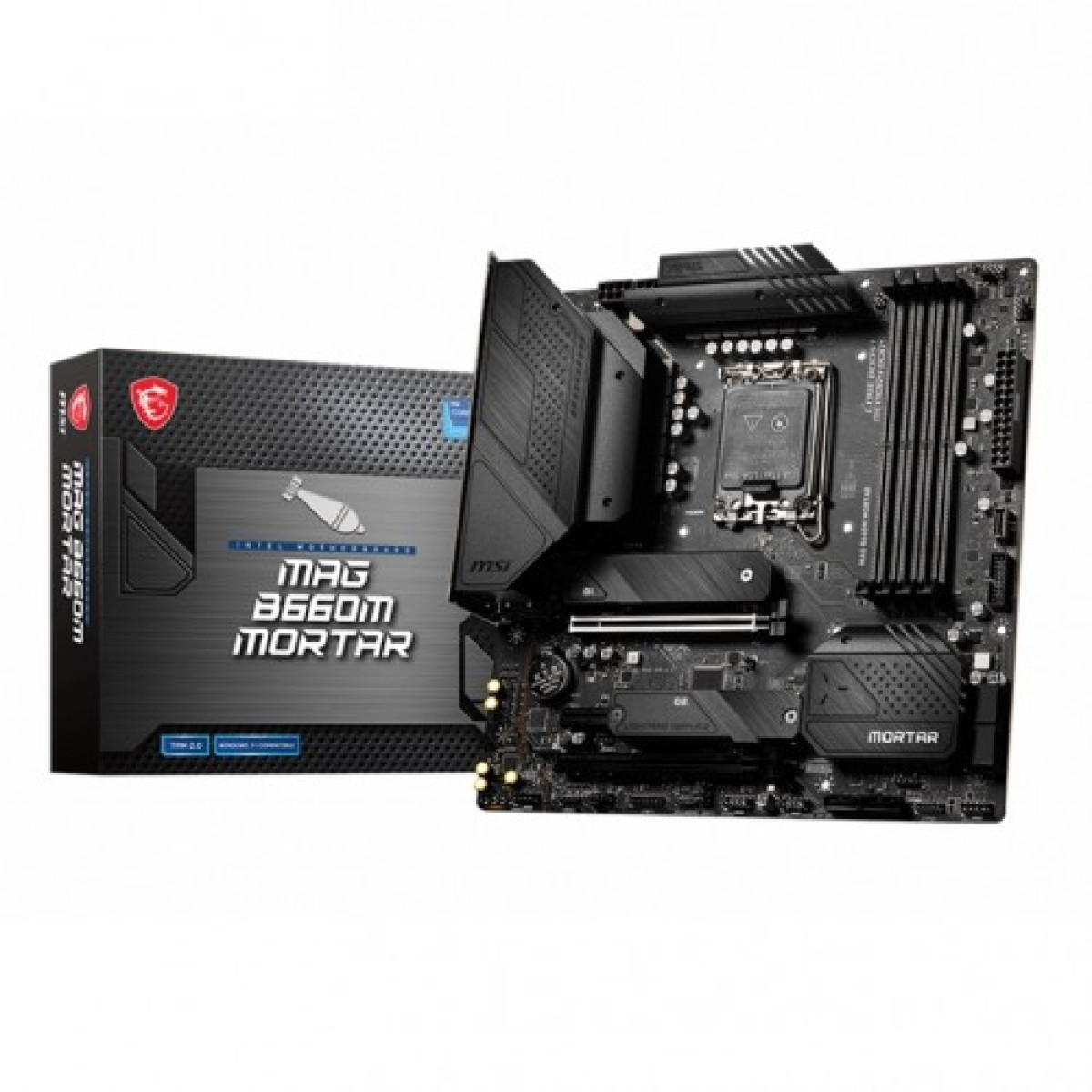

MSI MAG B660M MORTAR DDR5 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology
- SpecialFeatures: 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors
- Chipset: Intel B660 Chipset
- Audio: Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
High-Performance Micro-ATX Motherboard for Gamers
MSI MAG B660M MORTAR DDR5 12th Gen Micro-ATX Motherboard
The MSI MAG B660M MORTAR DDR5 motherboard is a high-performance solution designed for gamers and PC enthusiasts who demand the best in technology.
With support for the latest 12th Gen Intel processors, this Micro-ATX motherboard brings cutting-edge features and functionality to your build. One of its standout features is the support for DDR5 memory, which offers faster speeds and improved efficiency, allowing for enhanced performance in gaming and multitasking.
Equipped with multiple PCIe slots, the B660M MORTAR allows for extensive upgrade options, ensuring your system remains relevant for years to come. With advanced thermal solutions, including heatsinks and fan headers, this motherboard ensures optimal cooling, even during intense gaming sessions.
Additionally, the motherboard is compatible with the latest storage technologies, featuring M.2 slots for NVMe SSDs, providing lightning-fast data transfer speeds. With MSI’s Mystic Light technology, you can customize your system's aesthetics with RGB lighting, making it not just powerful but also visually stunning.
Whether you're building a new gaming rig or upgrading your existing setup, the MSI MAG B660M MORTAR DDR5 motherboard is the ideal choice for Bangladeshi customers looking for performance, reliability, and style.
Upgrade Your PC with MSI MAG B660M MORTAR DDR5
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
| SpecialFeatures | 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors |
| Chipset | Intel B660 Chipset |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR5 |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Slots | 4x DDR5 memory slots |
| Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 port with HBR3 |
| HDMI | 1x HDMI 2.1 with HDR port |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| LAN Port (s) | 1x Realtek 8125BG 2.5Gbps LAN controller |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
