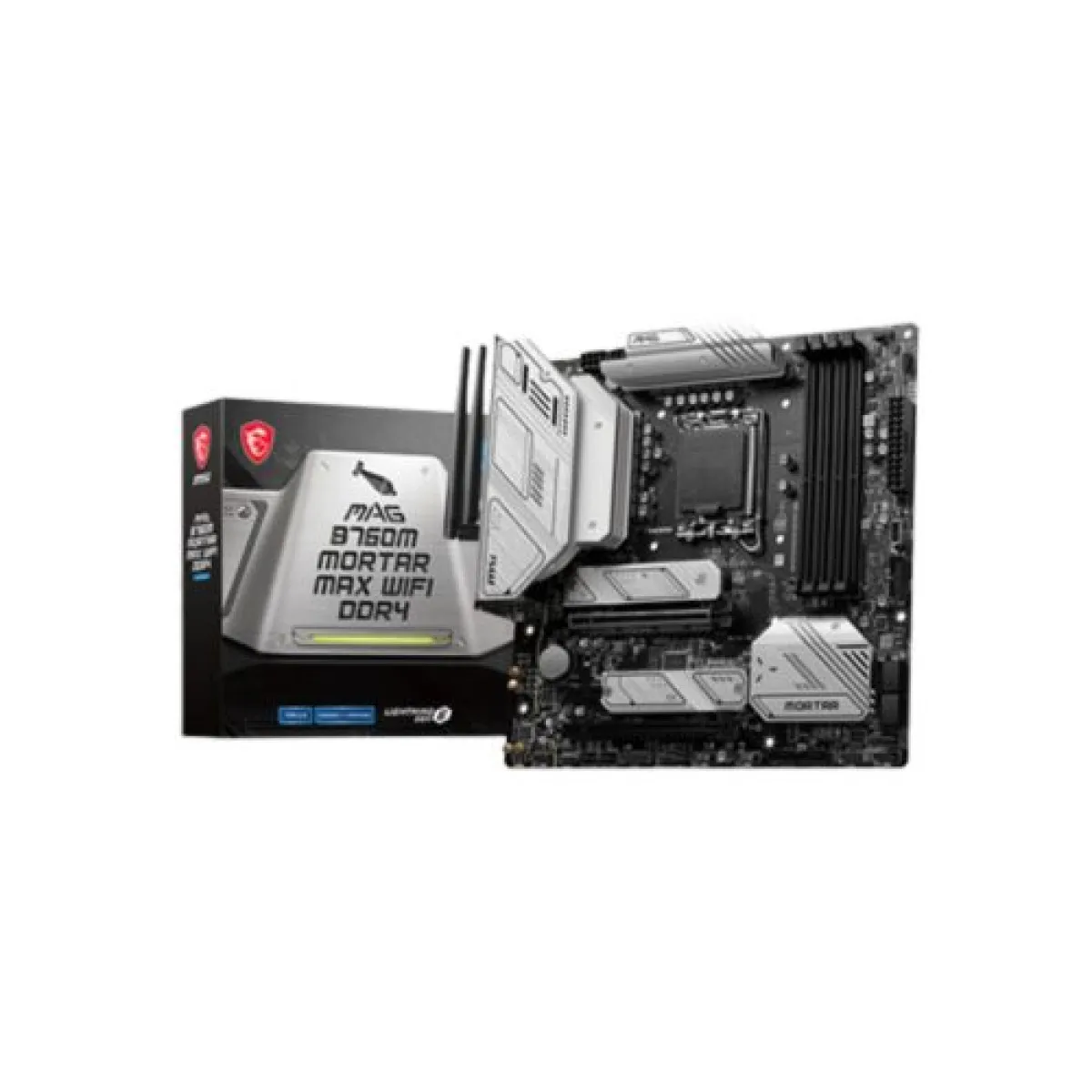

MSI MAG B760M MORTAR DDR4 13th Gen & 12th Gen mATX Motherboard

  • Brand: MSI
  • Product Code: MAG B760M MORTAR DDR4
  • Availability: Out of Stock
  • Updated:
৳22,000
Out of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email

Specification

BASIC INFORMATION
Form FactormATX 243.84mmx243.84mm
Graphics1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Raid controllerSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supported CPUSupports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
ChipsetINTEL B760
Slots4
AudioHD Audio Connectors
TypeDDR4
Connectivity
HDMI1x HDMI
Expansion Slots
PCI2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory Specifications
Maximum Memory128GB
Supported MemoryMemory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
PORTS, CONNECTORS & SLOTS
Display Port (s)2x DisplayPort
Internal I/O Ports1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Supported Storage2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
USB (s)4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
WARRANTY
Manufacturing Warranty3 years

Description

Introducing the MSI MAG B760M MORTAR DDR4 Motherboard

The MSI MAG B760M MORTAR DDR4 motherboard is engineered to provide unparalleled performance and stability for both gamers and content creators alike. Designed to support the latest 13th Gen and 12th Gen Intel processors, this micro ATX motherboard not only meets the demands of high-performance computing but also ensures a seamless experience for everyday tasks. With its robust build quality, advanced features, and cutting-edge technology, the MSI MAG B760M MORTAR is a perfect choice for anyone looking to build a powerful and reliable system.

Key Features:

  • High-Performance CPU Support: Compatible with Intel's 13th and 12th Gen processors, this motherboard allows users to harness the full potential of their CPUs, ensuring smooth multitasking and enhanced gaming performance.
  • Advanced Cooling Solutions: Equipped with multiple fan headers and an efficient thermal design, the MSI MAG B760M MORTAR ensures optimal cooling even under heavy loads, which is crucial for long gaming sessions or demanding workloads.
  • DDR4 Memory Support: The motherboard supports DDR4 RAM with speeds of up to 3200 MHz, allowing for faster data transfer rates and improved overall system performance.
  • Comprehensive Connectivity: Featuring multiple USB ports, M.2 slots for NVMe SSDs, and HDMI outputs, the motherboard provides extensive connectivity options for peripherals and displays, making it a versatile choice for any user.
  • Durable Build Quality: The MSI MAG B760M MORTAR is constructed with high-quality components and has undergone rigorous testing to ensure reliability and longevity, making it a worthy investment for your build.

Why Choose MSI MAG B760M MORTAR?

This motherboard is not only designed for gamers but also for creators who need a robust platform for video editing, 3D rendering, and other demanding applications. Its rich feature set and solid performance make it ideal for a wide range of use cases. Whether you're building a new PC from scratch or upgrading an existing one, the MSI MAG B760M MORTAR provides the performance and reliability you need. Additionally, with its competitive price point, this motherboard offers outstanding value compared to similar products on the market.

Investing in the MSI MAG B760M MORTAR motherboard means you’re choosing a product backed by MSI’s reputation for quality and innovation. Join the growing community of satisfied users who have transformed their computing experience with this exceptional motherboard.
