Key highlights
- Audio: Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output
- BIOS: 1 x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SM BIOS 2.8 Multi-language
- PCI: 1 x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen support PCIe 3.0x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x 8 mode 1 x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode 2 x PCIe 3.0 x1 slots
- Max Shared Memory: Maximum shared memory of 2048 MB
- Graphics: Supports 2-Way AMD CrossFire Technology
Description
High-Performance AMD Motherboard for Gamers

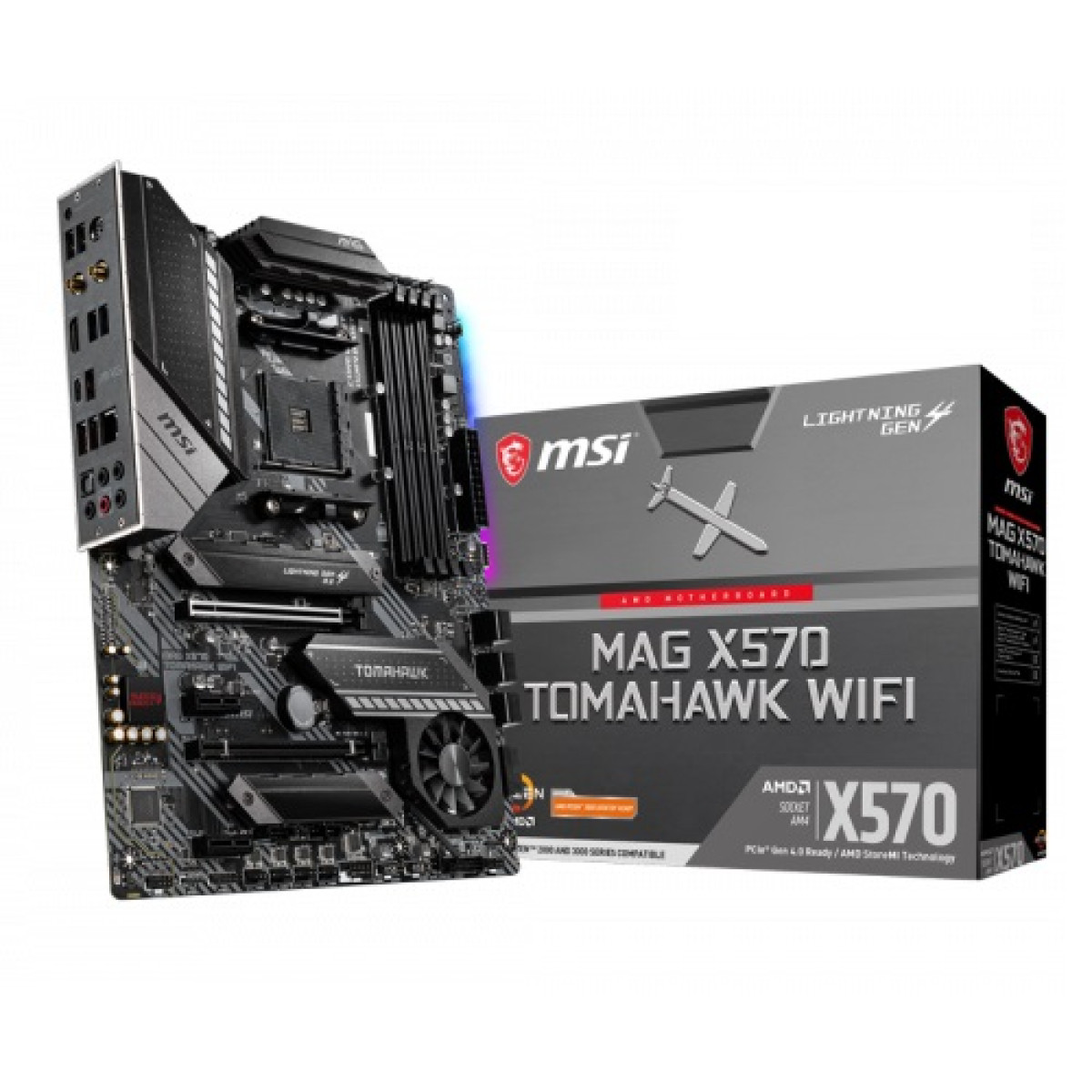

Elevate Your Gaming Experience with MSI MAG X570 TOMAHAWK WiFi
The MSI MAG X570 TOMAHAWK WiFi is engineered for gamers and PC enthusiasts looking for robust performance and advanced features. This motherboard supports AMD Ryzen processors, ensuring lightning-fast processing speeds and exceptional multitasking capabilities. With its WiFi 6 technology, you can enjoy seamless online gaming and streaming without interruptions.
Designed with premium thermal solutions, this motherboard keeps your system cool even during intense gaming sessions. The dual M.2 slots offer support for NVMe SSDs, providing rapid data transfer speeds that enhance your gaming experience. The RGB Mystic Light feature allows you to customize your system’s aesthetics, making your setup as unique as your gameplay.
Furthermore, the MSI MAG X570 TOMAHAWK is built with military-grade components, ensuring durability and reliability. With a user-friendly BIOS interface, you can easily overclock your CPU and memory for optimal performance. Choose the MSI MAG X570 TOMAHAWK WiFi and take your gaming to the next level!
Upgrade Your PC with the MSI MAG X570 TOMAHAWK
Specification
| BASIC INFORMATION | |
|---|---|
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| BIOS | 1 x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SM BIOS 2.8 Multi-language |
| Expansion Slots | |
| PCI | 1 x PCIe 4.0/3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen support PCIe 3.0x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x 8 mode 1 x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 2048 MB |
| Graphics | Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | support up to 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI |
| LAN Port (s) | 1 x Realtek 8125B 2.5Gbps LAN Controller |
| Supported Storage | 6 x SATA 6Gb/s ports (from AMD® X570 Chipset) 2 x M.2 slots (Key M) 1 M2-1 slot (from AMD Processor) Supports PCIe 4.0 x 4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x 4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | 3 x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4 x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1 x USB 3.2 Gen 2 10Gbps Type-C Port 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs |
| Special | |
| Special Feature | Intel Wi-Fi 6 AX200- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5.1 The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
