Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Supported CPU: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4
- Chipset: AMD X570 Chipset
- Slots: 4 x DDR4 memory slots
- Audio: Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description

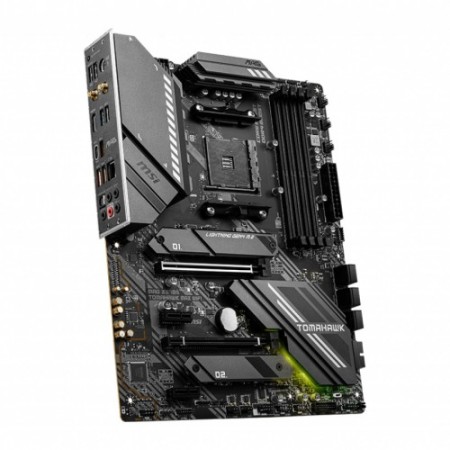

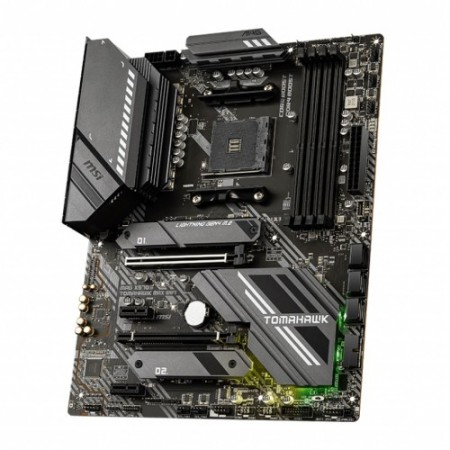

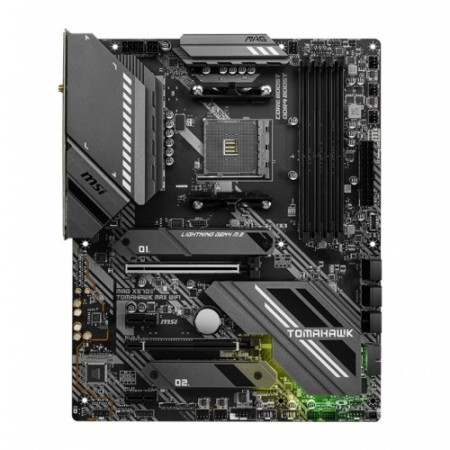

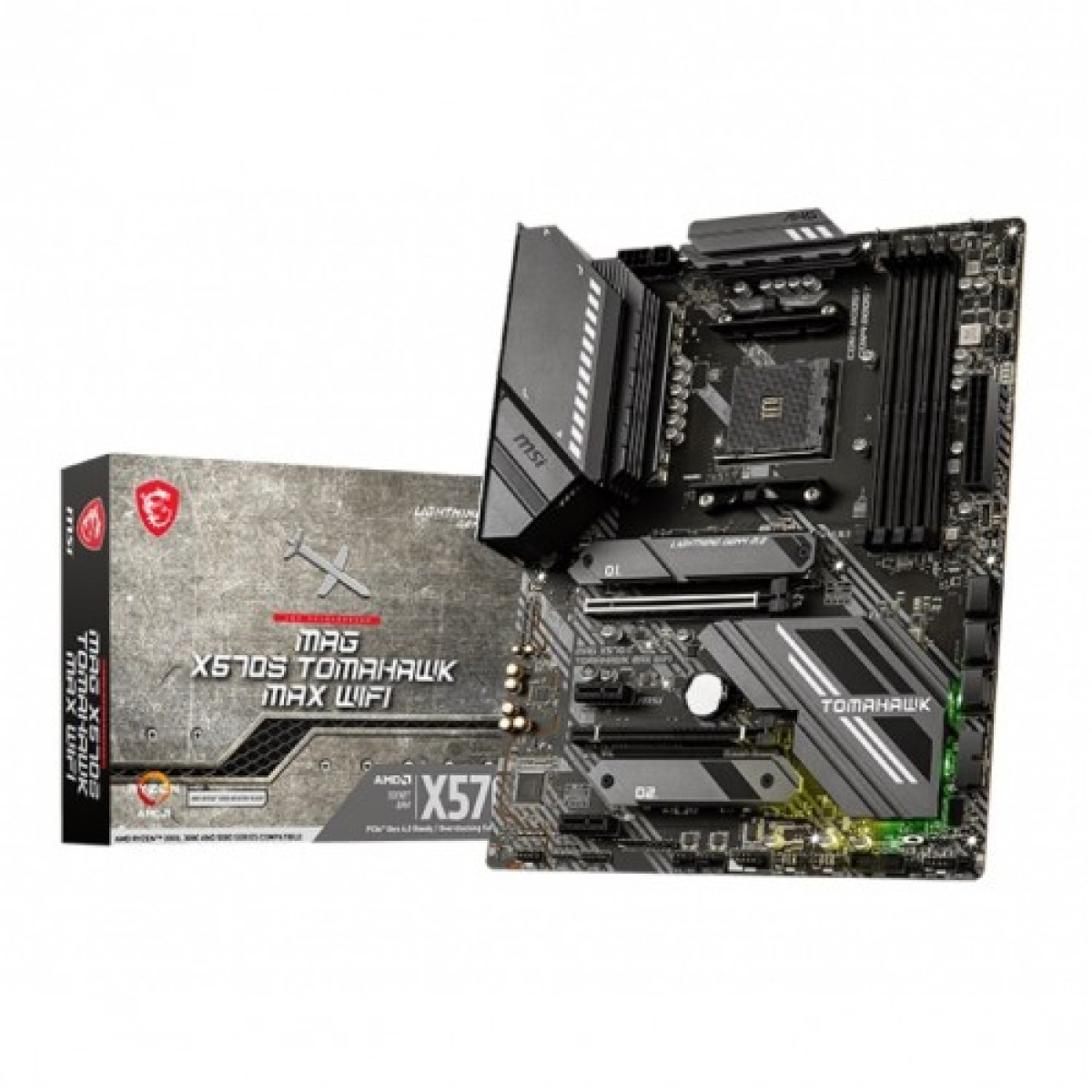

Upgrade Your Build with MSI MAG X570S TOMAHAWK MAX
MSI MAG X570S TOMAHAWK MAX WIFI: Unleashing the Power of AMD at Your Fingertips
The MSI MAG X570S TOMAHAWK MAX WIFI motherboard is meticulously designed to provide an exceptional computing experience for gamers, content creators, and tech enthusiasts alike. Built on the AM4 socket, this ATX motherboard supports the latest AMD Ryzen processors, ensuring that you have the processing power necessary to tackle even the most demanding applications. With its advanced features and robust build quality, the TOMAHAWK MAX WIFI is perfect for anyone looking to build a high-performance PC.
The X570S TOMAHAWK MAX WIFI boasts a sleek and durable design, incorporating military-grade components that ensure longevity and reliability. It features cutting-edge thermal solutions, including an extended heatsink and M.2 Shield Frozr technology, which keep your components cool even during intense gaming sessions. The motherboard is also equipped with the latest Wi-Fi 6 technology, providing faster and more stable wireless connectivity, which is essential for online gaming or streaming.
One of the significant benefits of this motherboard is its versatility in supporting dual-channel DDR4 memory with speeds up to 4400 MHz, allowing for greater multitasking capabilities and enhanced performance. Additionally, the motherboard comes with multiple PCIe slots, enabling users to expand their systems with additional graphics cards or other peripherals as needed.
Whether you are a casual gamer or a professional, the MSI MAG X570S TOMAHAWK MAX WIFI can meet your needs. Its user-friendly BIOS interface and compatibility with the latest AMD Ryzen 5000 series processors make it an excellent choice for both novice and experienced builders. By choosing this motherboard, you're investing in a product that not only enhances your system's performance but also provides a foundation for future upgrades.
In summary, the MSI MAG X570S TOMAHAWK MAX WIFI is an outstanding choice for those who demand high performance and reliability. Its combination of advanced features, superior build quality, and competitive pricing makes it a must-have for anyone looking to build a powerful and efficient PC.
High-Performance AMD AM4 ATX Motherboard with WIFI
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| Slots | 4 x DDR4 memory slots |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| Memory Specifications | |
| Maximum Memory | Up to 128GB |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI 2.1 |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
| LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN Controller |
| Supported Storage | 6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
