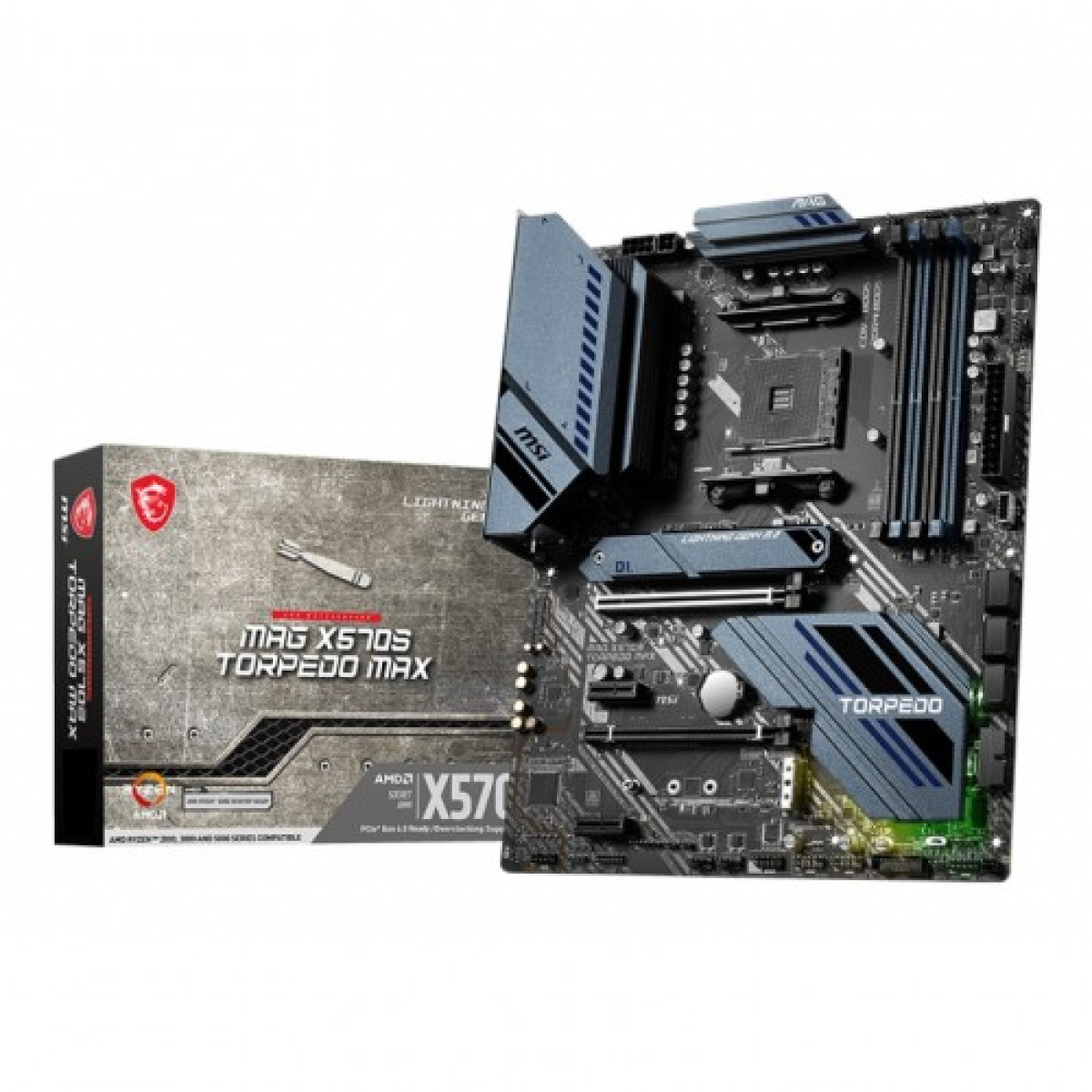

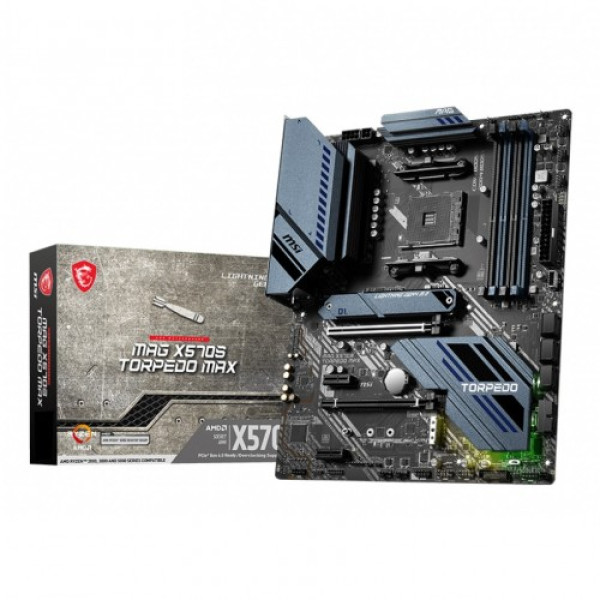

MSI MAG X570S TORPEDO MAX AMD AM4 ATX Motherboard
৳29,100
Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Supported CPU: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4
- Chipset: AMD X570 Chipset
- Slots: 4 x DDR4 memory slots
- Audio: Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Upgrade Your Gaming Setup with MSI MAG X570S Motherboard
Introducing the MSI MAG X570S TORPEDO MAX AMD AM4 ATX Motherboard
The MSI MAG X570S TORPEDO MAX is an advanced motherboard designed for the modern gamer and PC builder. With AMD's AM4 socket, this motherboard is tailored to support the latest Ryzen processors, offering a perfect blend of performance and reliability. With its ATX form factor, it provides ample space for expansion and connectivity, making it an ideal choice for both gaming and productivity setups. The motherboard features a robust power delivery system, ensuring stable performance even during intense gaming sessions or heavy workloads.
Key Benefits: The MAG X570S TORPEDO MAX boasts several features that set it apart from its competitors. First, it includes a high-quality thermal solution with extended heatsinks and M.2 Shield Frozr technology to keep your components cool during long hours of use. This ensures that your system remains stable and performs optimally. Additionally, the motherboard supports PCIe 4.0, offering lightning-fast data transfer speeds which are essential for gamers and content creators alike.
Use Cases: This motherboard is perfect for gamers looking to create a high-performance gaming rig, as well as for professionals who require a reliable platform for demanding applications. Whether you are building a workstation for video editing, 3D rendering, or gaming, the MAG X570S TORPEDO MAX has you covered. Its versatile nature allows it to fit into various build types, from budget to high-end systems.
Why You Should Buy: Choosing the MSI MAG X570S TORPEDO MAX means investing in quality and longevity. With MSI's commitment to durability and performance, this motherboard is built to last. Additionally, you will benefit from the extensive MSI ecosystem, including software utilities for system monitoring and optimization. In the competitive Bangladeshi market, this motherboard offers an excellent balance of price and performance, making it a smart choice for tech enthusiasts in Jashore.
Top Features of MSI MAG X570S TORPEDO MAX for Gamers
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| Slots | 4 x DDR4 memory slots |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| Memory Specifications | |
| Maximum Memory | Up to 128GB |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI 2.1 |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
| Supported Storage | 6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices |
| Wireless Communication module | Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
