Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
- Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
- Chipset: AMD B550 Chipset
- Memory: 128GB
- Slots: 4x DDR4 memory slots
Description
High-Performance MSI Motherboard for Gaming and Work

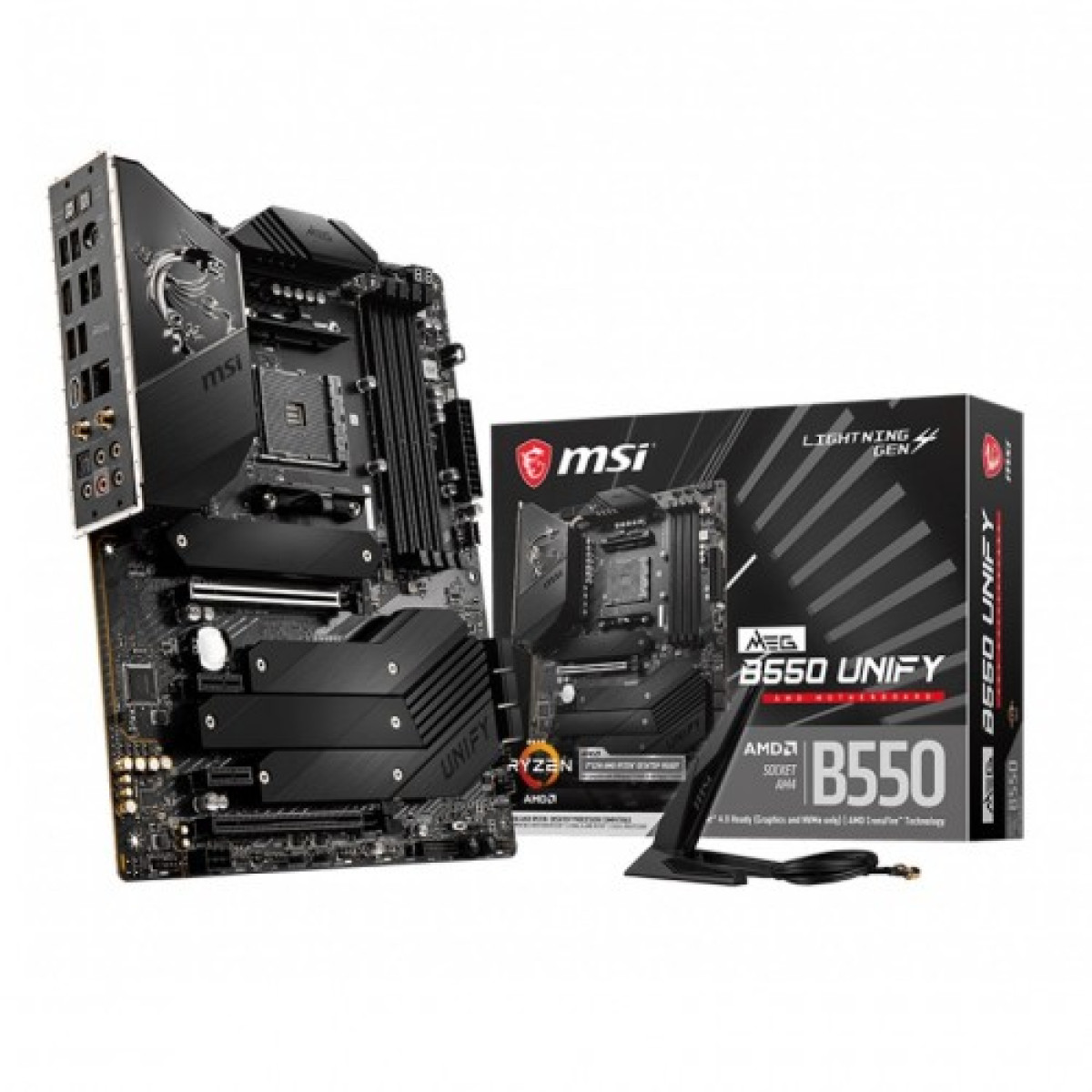

Experience Unmatched Performance with MSI MEG B550 UNIFY
The MSI MEG B550 UNIFY AM4 ATX AMD Motherboard is engineered for gamers and PC enthusiasts seeking unparalleled performance and reliability. This advanced motherboard supports the latest AMD Ryzen processors, harnessing cutting-edge technology to deliver lightning-fast speeds and exceptional multitasking capabilities. With its sleek black design and premium components, the MEG B550 UNIFY not only looks stunning but also offers robust performance under heavy loads.
Equipped with Triple M.2 slots and PCIe 4.0 support, you can maximize your storage performance and enjoy faster data transfer rates. The motherboard also features advanced cooling solutions, including Frozr Heatsink Design and dedicated thermal pads, ensuring optimal temperatures even during intense gaming sessions. Additionally, the Wi-Fi 6 capability provides high-speed wireless connectivity, perfect for online gaming and streaming.
Gamers will appreciate the customizable RGB lighting, allowing you to match your build’s aesthetics while maintaining full control over your system's performance. The MSI MEG B550 UNIFY also supports DDR4 memory with overclocking capabilities, providing the power needed for the most demanding applications. With a robust 12+2+1 Duet Rail Power System and premium capacitors, this motherboard ensures stable power delivery for peak performance.
Explore Features of MSI MEG B550 UNIFY Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.4 cm x 24.4 cm) |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Memory | 128GB |
| Slots | 4x DDR4 memory slots |
| Audio | Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 4x M.2 slots (Key M) |
| PCI | AMD Processor 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) AMD B550 Chipset 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 speed 2x PCIe 3.0 x1 slots (PCI_E2 & PCI_E3) |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Graphics | 1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC AMD Ryzen 4000 G-Series processors support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ (Max. 5600) MHz by A-XMP OC MODE 3rd Gen AMD Ryzen processors supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE AMD Ryzen 4000 G-Series processors 1DPC 1R max speed 5100 MHz (QVL), Max. 5600 MHz 1DPC 2R max speed 4266 MHz 2DPC 1R max speed 4400 MHz 2DPC 2R max speed 3600 MHz 3rd Gen AMD Ryzen processors 1DPC 1R max speed 5100 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1 x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @120 Hz |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports 4x M.2 slots (Key M) M2_1 slot (from CPU)\ Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2280/ 22110 storage devices M2_2 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 Supports 2280 storage devices M2_3 slot Chipset support mode (default, from Chipset ) - supports PCIe 3.0 x2 CPU support mode (From CPU) - supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2280/ 22110 storage devices M2_4 slot Supports PCIe 3.0 x4 Supports 2280 storage devices |
| USB (s) | AMD Processor 4x USB 3.2 Gen 2 10Gbps ports(3 Type-A ports and 1 Type-C port) on the back panel AMD B550 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 4x USB 2.0 ports on the back channel AMD B550 chipset + USB 2.0 Hubs 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x Clear CMOS jumper 1x Power button 1x Reset button |
| Special | |
| Special Feature | WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6 AX200 The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1 |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
