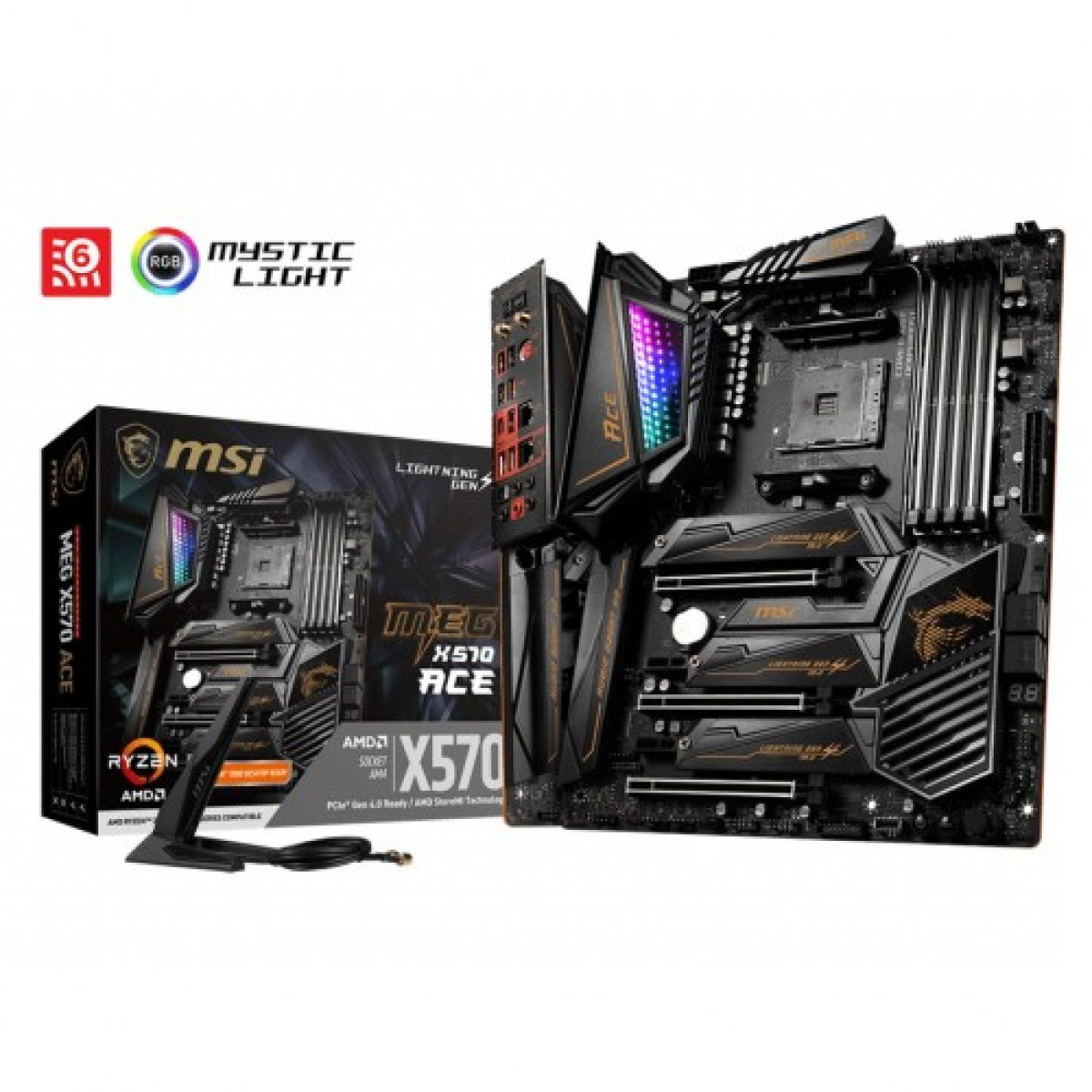

MSI MEG X570 ACE DDR4 2nd and 3rd Gen AMD AM4 Socket Motherboard
- Brand: MSI
- Product Code: M22090728
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
|---|---|
| Supported CPU | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon™ Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X570 Chipset |
| Expansion Slots | |
| M.2 Socket | AMD X570 Chipset 2x M.2 slots (M2_2/ M2_3, Key M) Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s Support 2242/ 2260 /2280 storage devices AMD Processor 1x M.2 slot (M2_1, Key M) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/ 2260 /2280/ 22110 storage devices |
| PCI | 2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode) 2x PCIe 4.0/ 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | MULTI-GPU Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 |
| Supported Memory | 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | DDR4 Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN Port (s) | 1x Intel WGI211AT Gigabit LAN controller 1x Realtek RTL8125 2.5 Gbps LAN controller WIFI & BLUETOOTH Intel Wi-Fi 6 AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5 The Wireless module is pre-install in the M2_4 (Key-E) slot |
| Supported Storage | AMD X570 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (M2_2/ M2_3, Key M)1 Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s Support 2242/ 2260 /2280 storage devices AMD Processor 1x M.2 slot (M2_1, Key M) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/ 2260 /2280/ 22110 storage devices |
| USB (s) | AMD X570 Chipset 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports) 1x USB 3.2 Gen 2 Type-C Port 1x 4-pin CPU fan connector 5x 4-pin system fan connectors 1x 4-pin water-pump connector 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 1x Power button 1x Reset button 1x Game Boost knob 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x 2-pin LED power input 1x Debug Code LED 4x EZ Debug LEDs |
| Special | |
| Special Feature | MOUNTING 9 mounting holes |
| WARRANTY | |
| Manufacturing Warranty | 03 year warranty |
Description
Unleash Your Gaming Potential with MSI MEG X570 ACE
The MSI MEG X570 ACE motherboard is a powerhouse designed for 2nd and 3rd Gen AMD Ryzen processors, offering unmatched performance for gamers and PC enthusiasts alike. With its AM4 socket, this motherboard provides excellent compatibility and support for high-speed DDR4 memory, making it an ideal choice for building a high-performance gaming rig.
Exceptional Cooling Technology is integrated into the design, featuring an advanced thermal solution that keeps your system cool during intense gaming sessions. The Extended Heatsink Design ensures optimal heat dissipation, while the Premium Thermal Pads enhance heat transfer from the components.
Next-Gen Connectivity is at your fingertips with the MEG X570 ACE, featuring PCIe 4.0 support for lightning-fast data transfer speeds. This motherboard is equipped with multiple M.2 slots for NVMe SSDs, allowing for rapid game loading times and smooth multitasking. Additionally, the integrated Wi-Fi 6 ensures that you stay connected with minimal latency.
The MSI Click BIOS 5 provides an intuitive user interface, making overclocking and system monitoring a breeze, even for beginners. With its robust build quality and premium components, the MSI MEG X570 ACE is engineered for durability and longevity, making it a wise investment for your computing needs.
