Key highlights
- Form Factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
- Supported CPU: Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4
- Chipset: AMD X570 Chipset
- M.2 Socket: 2x M.2 slots (M2_2/ M2_3, Key M) Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s Support 2242/ 2260 /2280 storage devices 1x M.2 slot (M2_1, Key M) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/ 2260 /2280/ 22110 storage devices
- PCI: 2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode) 2x PCIe 4.0/ 3.0 x1 slots
Description

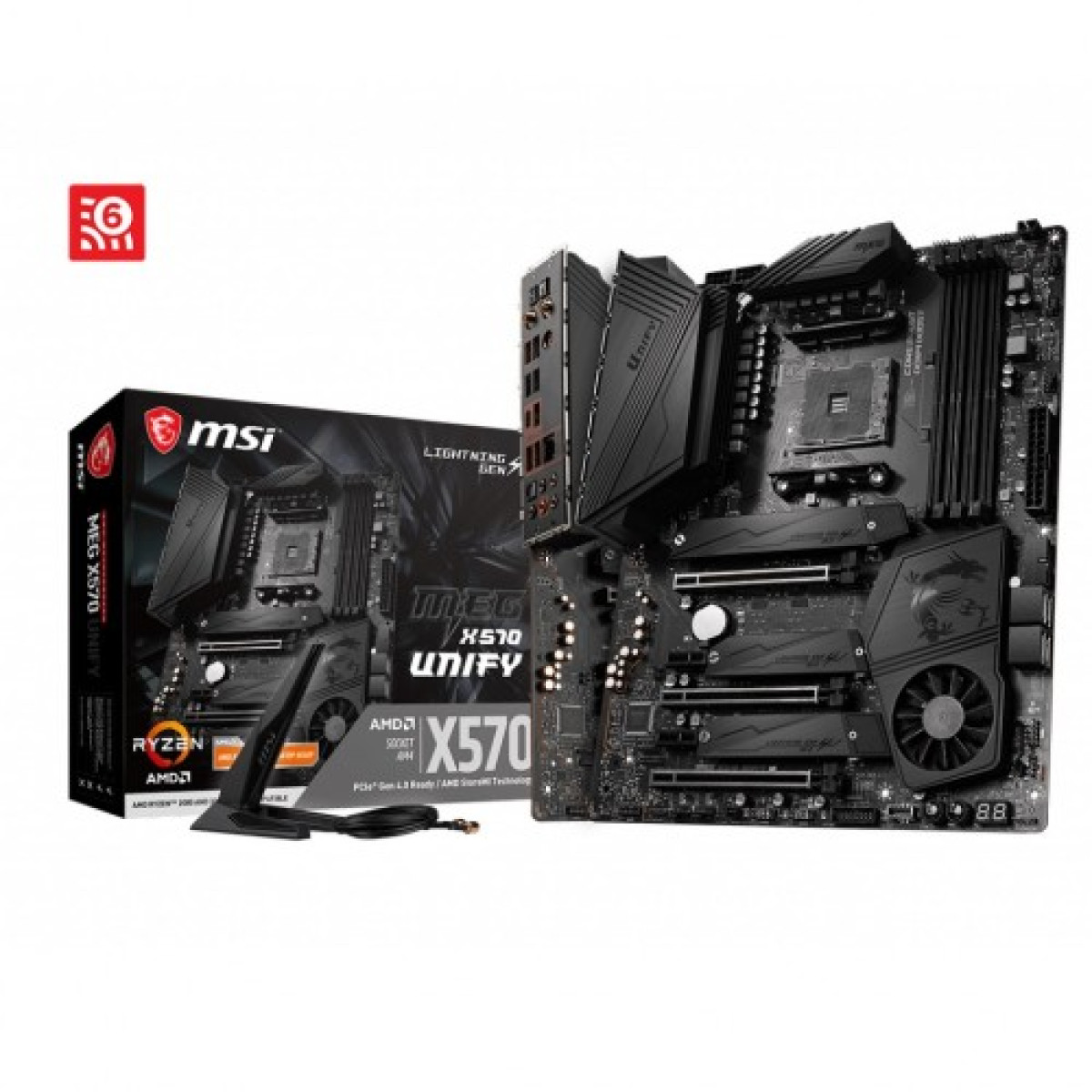

Top Features of MSI Meg X570 Unify WiFi Motherboard
Elevate Your Gaming Experience with the MSI Meg X570 Unify WiFi
The MSI Meg X570 Unify WiFi motherboard is designed for gamers and PC enthusiasts who demand the best performance and reliability. With its advanced features, this motherboard ensures seamless connectivity and powerful processing capabilities. The integrated WiFi allows you to connect to the internet without the hassle of cables, providing a clean and organized workspace. Equipped with AMD Ryzen processors, it offers exceptional multitasking and gaming performance.
Featuring a robust thermal design, the Meg X570 Unify utilizes high-quality components to maintain optimal temperatures during intense gaming sessions. The PCIe 4.0 support enables lightning-fast data transfer speeds, making it perfect for high-speed SSDs and graphics cards. Additionally, the motherboard comes with customizable RGB lighting, allowing you to personalize your build's aesthetics.
Whether you are building a gaming rig or a high-performance workstation, the MSI Meg X570 Unify WiFi stands out as a top choice. Its user-friendly BIOS and easy installation make it accessible for both beginners and seasoned builders. Experience the difference with MSI!
Why Choose MSI Meg X570 Unify for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| Supported CPU | Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD X570 Chipset |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (M2_2/ M2_3, Key M) Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s Support 2242/ 2260 /2280 storage devices 1x M.2 slot (M2_1, Key M) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/ 2260 /2280/ 22110 storage devices |
| PCI | 2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3) 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode) 2x PCIe 4.0/ 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | support up to 128GB |
| Slots | 4x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /5000+ Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN Port (s) | 1x Realtek RTL8125 2.5 Gbps LAN controller |
| Supported Storage | AMD X570 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (M2_2/ M2_3, Key M) Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s Support 2242/ 2260 /2280 storage devices AMD Processor 1x M.2 slot (M2_1, Key M) Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Supports 2242/ 2260 /2280/ 22110 storage devices |
| USB (s) | AMD X570 Chipset 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports) 1x USB 3.2 Gen 2 Type-C Port 1x 4-pin CPU fan connector 5x 4-pin system fan connectors 1x 4-pin water-pump connector 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Clear CMOS jumper 1x Chassis Intrusion connector 1x Power button 1x Reset button 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x 2-pin LED power input 1x Debug Code LED 4x EZ Debug LEDs |
| Special | |
| Special Feature | Intel Wi-Fi 6 AX200 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5.1 The Wireless module is pre-install in the M2_4 (Key-E) slot |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
