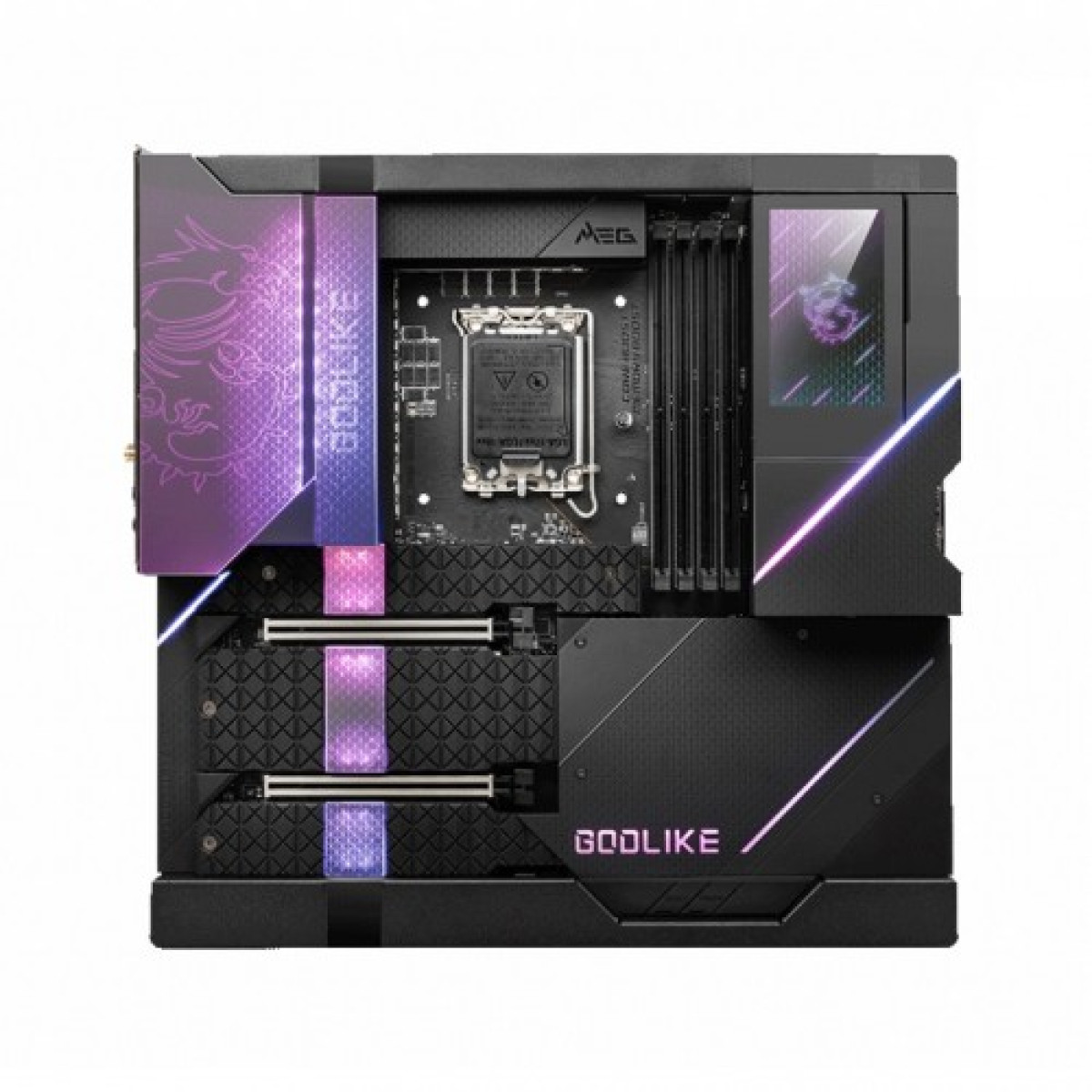

MSI MEG Z690 GODLIKE 12th Gen E-ATX Motherboard
Key highlights
- Form Factor: 12 in. x 12 in. (30.5 cm x 31.0 cm) E-ATX Form Factor
- Graphics: Supports AMD CrossFire Technology Supports NVIDIA SLI Technology
- Supported CPU: Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700
- Chipset: Intel Z690 Chipset
- Audio: Realtek ALC4082 Codec + ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
Description
Elevate Your Gaming with MSI MEG Z690 GODLIKE
Unleash Your Gaming Potential with MSI MEG Z690 GODLIKE
The MSI MEG Z690 GODLIKE motherboard is engineered for gamers and creators seeking unparalleled performance. Equipped with the latest 12th Generation Intel technology, it supports Intel's Alder Lake processors, ensuring exceptional speed and efficiency. With its E-ATX form factor, this motherboard provides ample space for advanced cooling solutions and multiple graphics cards, making it ideal for high-performance gaming setups.
Featuring cutting-edge PCIe 5.0 slots, the MEG Z690 GODLIKE supports the fastest GPUs on the market, delivering ultra-responsive gameplay and stunning graphics. Additionally, the DDR5 memory support allows for faster data processing and improved multitasking capabilities, perfect for heavy applications and gaming.
The motherboard also comes with advanced connectivity options, including Wi-Fi 6E and Bluetooth 5.2, ensuring fast and reliable internet access. With a robust power delivery system and premium capacitors, users can enjoy stable performance even during intense gaming sessions. The striking LED lighting customizable via MSI Mystic Light adds flair to any build, making it not only powerful but visually appealing.
Top Features of MSI MEG Z690 GODLIKE Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 12 in. x 12 in. (30.5 cm x 31.0 cm) E-ATX Form Factor |
| Graphics | Supports AMD CrossFire Technology Supports NVIDIA SLI Technology |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Audio | Realtek ALC4082 Codec + ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 (From Z690 chipset) ▫Supports up to PCIe 4.0 x4 |
| Memory Specifications | |
| Maximum Memory | supporting up to 128GB |
| Slots | 4x DDR5 memory slots |
| Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 6x M.2 slots (M-Key) 2x USB 3.2 Gen 2x2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x Water Flow meter connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x Tuning Controller connector |
| LAN Port (s) | 1x Aquantia AQC113CS 10Gbps LAN controller 1x Intel I225-V 2.5Gbps LAN controller |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel Z690 Chipset 2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors 4x USB 3.2 Gen 2 10Gbps ports on the back panel Hub-GL3590 4x USB 3.2 Gen 2 10Gbps ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors Hub-GL850G 4x USB 2.0 ports through internal USB connectors Intel JHL8540 Thunderbolt 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panel Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
