Key highlights
- Form Factor: ATX Form Factor
- Supported CPU: Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
- Chipset: AMD B550 Chipset
- Audio: Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
- PCI: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 3x PCIe 3.0 x1 slots
Description
High-Performance MSI B550 Motherboard for Gamers

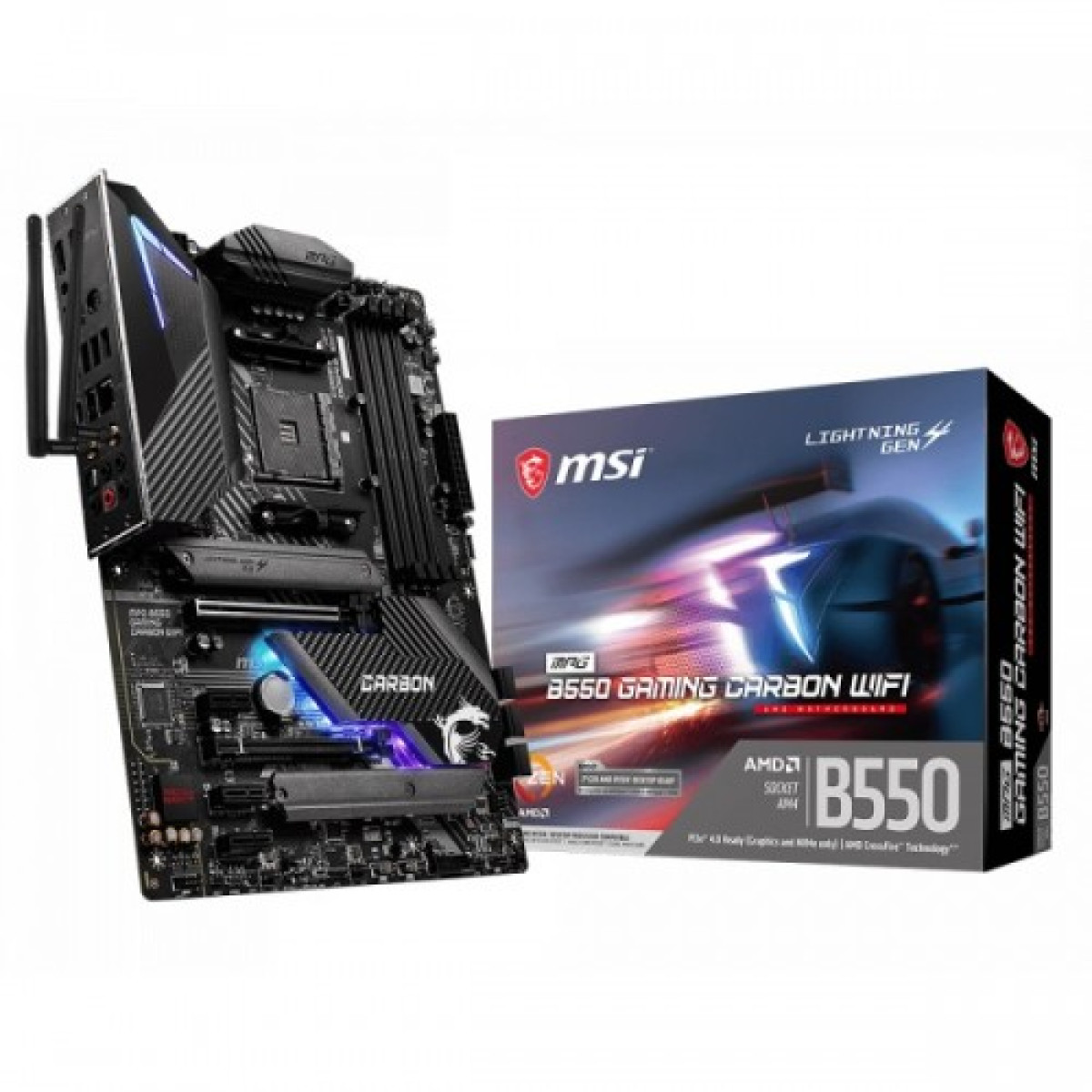

Unleash Your Gaming Potential with MSI MPG B550 GAMING CARBON WIFI
The MSI MPG B550 GAMING CARBON WIFI motherboard is engineered for gamers and PC enthusiasts who demand performance without compromise. With its sleek carbon fiber design, this motherboard not only looks stunning but also offers exceptional functionality to elevate your gaming experience. Equipped with the latest AMD B550 chipset, it supports the new generation of Ryzen processors, ensuring unmatched processing power and efficiency.
One of the standout features of this motherboard is its Wi-Fi 6 capability, which provides faster wireless speeds and improved connectivity. Additionally, the USB 3.2 Gen 2 ports allow for rapid data transfer, making it ideal for gamers who require quick response times. The advanced thermal design, including extended heatsinks and smart cooling solutions, ensures that your system stays cool even during intense gaming sessions.
Furthermore, the MSI MPG B550 GAMING CARBON WIFI is equipped with customizable RGB lighting, allowing you to personalize your setup and add a unique touch to your gaming environment. With its robust build quality and superior performance, this motherboard is perfect for gamers in Bangladesh looking to build a high-performance gaming rig.
Explore Features of MSI MPG B550 Motherboard Today
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor |
| Supported CPU | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 Chipset |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 3x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 16GB |
| Graphics | Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz |
| HDMI | 1 x HDMI port, supports a maximum resolution of 4096x2160 @24Hz |
| LAN Port (s) | 1 x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | AMD B550 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slots (Key M) M2-1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2-2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | 3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8 x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2 x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x RGB CORSAIR connector 1x TPM module connector 1x Clear CMOS jumper |
| Special | |
| Special Feature | Intel Wi-Fi 6 AX200: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1 |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
