Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Supported CPU: Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
- Chipset: AMD B550 Chipset
- M.2 Socket: 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
- PCI: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots
Description
High-Performance ATX Motherboard for Gaming PCs

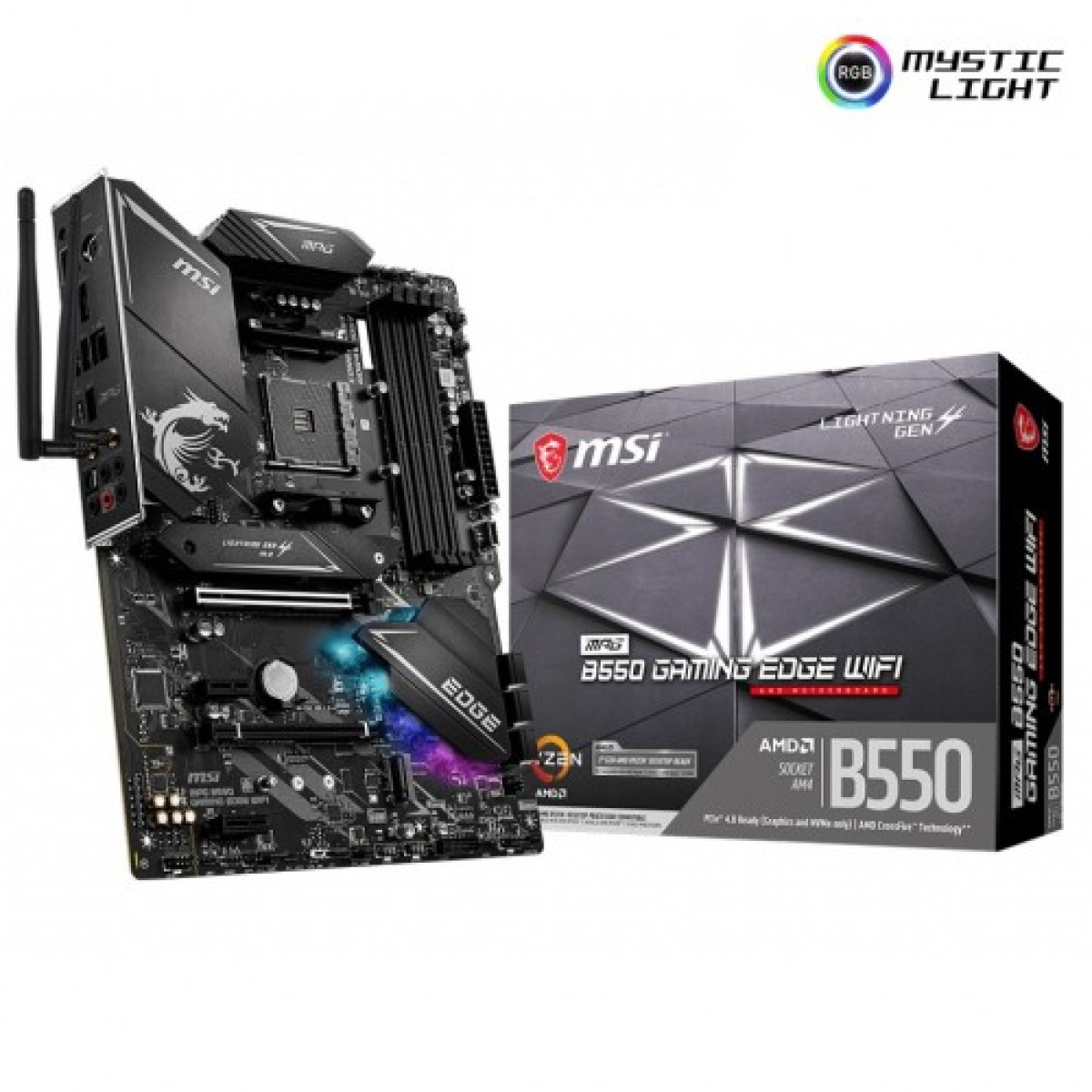

Unleash Your Gaming Potential with MSI MPG B550 Gaming Edge WiFi
The MSI MPG B550 Gaming Edge WiFi AM4 ATX motherboard is designed for gamers who demand superior performance and reliability. With its robust features, this motherboard offers exceptional connectivity, high-speed data transfer, and optimized gaming experience. The advanced cooling solutions ensure that your system remains stable during intense gaming sessions.
Equipped with the latest PCIe 4.0 technology, the MPG B550 Gaming Edge WiFi provides lightning-fast speeds for your graphics card and storage devices. The integrated WiFi 6 allows for seamless online gaming and streaming, making it the perfect choice for competitive gamers. Additionally, the customizable RGB lighting enhances your gaming setup's aesthetics.
With a user-friendly BIOS interface and support for AMD Ryzen processors, building your gaming rig has never been easier. Plus, the motherboard's high-quality components ensure durability and long-lasting performance. Experience the pinnacle of gaming technology with the MSI MPG B550 Gaming Edge WiFi motherboard.
Features of the MSI MPG B550 Gaming Edge WiFi
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Supported CPU | Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update |
| Chipset | AMD B550 Chipset |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Type | Dual channel memory architecture |
| PORTS, CONNECTORS & SLOTS | |
| Audio Jack Combo | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Display Port (s) | 1x DisplayPort maximum resolution of 4096x2160 @60Hz |
| HDMI | 1x HDMI maximum resolution of 4096x2160 @24Hz |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
| USB (s) | 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper |
| Special | |
| Special Feature | Intel Wi-Fi 6 AX200: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1 |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
