Key highlights
- Form Factor: Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
- Graphics: 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz
- Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
- Chipset: AMD B550 Chipset
- Type: DDR4
Description
Compact Mini-ITX Motherboard for Gaming Performance

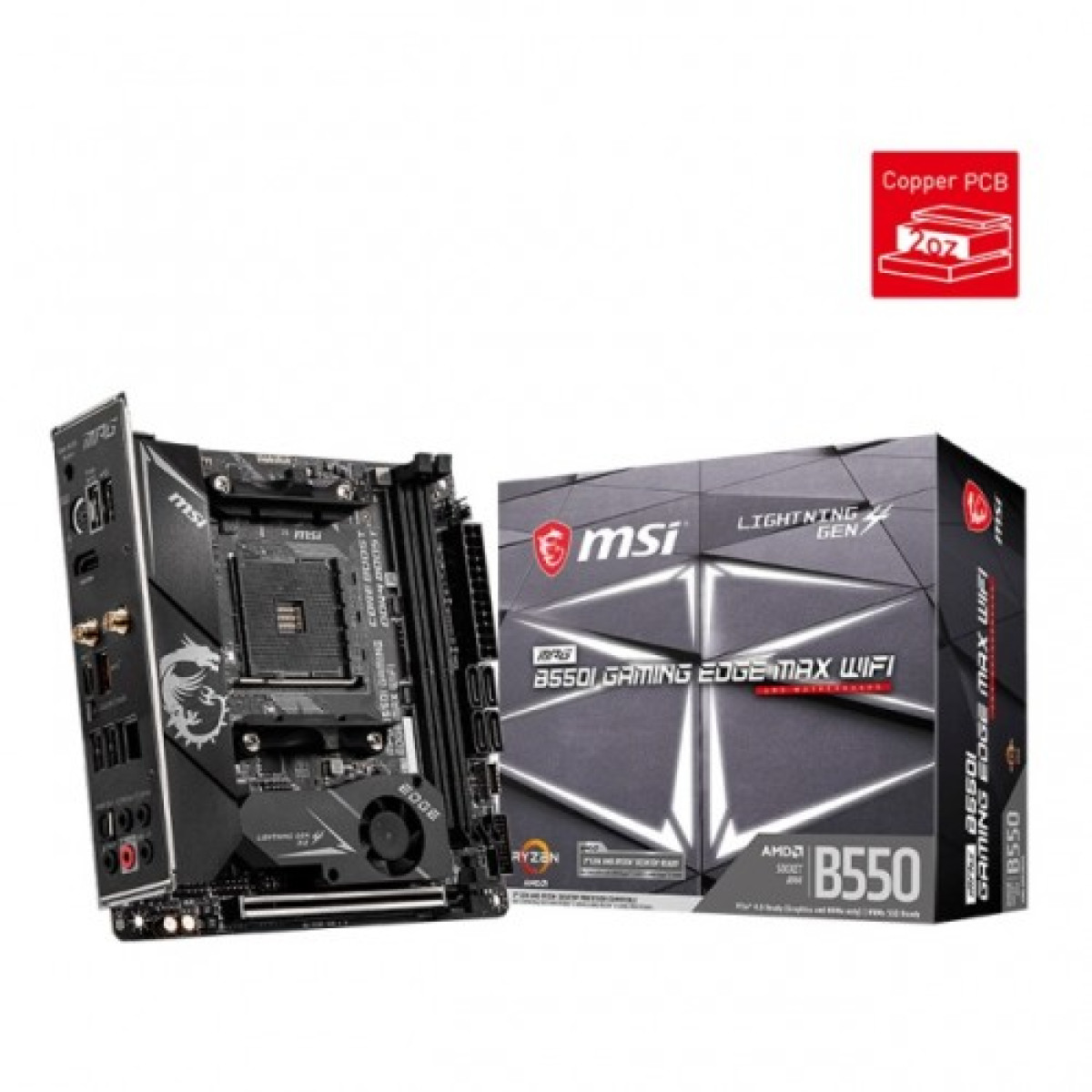

Unleash Your Gaming Potential with MSI MPG B550I GAMING EDGE MAX
The MSI MPG B550I GAMING EDGE MAX AM4 Mini-ITX Motherboard is engineered for gamers and PC enthusiasts seeking unmatched performance and reliability. With support for the latest AMD Ryzen processors, this motherboard delivers high-speed computing and flawless gaming experiences. The compact Mini-ITX form factor allows for easy integration into small builds without sacrificing essential features.
Equipped with advanced thermal solutions, including heatsinks and fan headers, this motherboard ensures optimal cooling during intense gaming sessions. The Mystic Light feature adds a touch of personalization with customizable RGB lighting, letting you create a unique aesthetic that matches your gaming setup. Additionally, the Game Boost technology allows for one-click overclocking, enhancing performance without the hassle of manual adjustments.
With ultra-fast connectivity options like PCIe 4.0 and lightning-fast USB 3.2 Gen 2 support, you can expect quicker load times and seamless multitasking. The robust build quality, backed by MSI's rigorous testing, ensures durability and longevity for years to come. The MPG B550I GAMING EDGE MAX is not just a motherboard; it is a gateway to an ultimate gaming experience.
Explore Features of MSI B550I GAMING EDGE MAX
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz |
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 1x PCIe 4.0 / 3.0 x16 slot |
| Graphics Specifications | |
| Max Shared Memory | 2048 MB |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Slots | 2 x memory slots |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHZ 1DPC 2R max speed 4000 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 4x EZ Debug LED |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots [Key M] M2 1 slot [from AMD Processor] Supports PCIe 4.0/3.0 x4 1 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2 slot [from AMD B550 chipset] Supports PCIe 3.0x4 Supports 2280 storage devices |
| TPM (Trusted Platform Module ) | N/A |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector] 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector] AMD Processor 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Wireless Communication module | Intel AX200 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1 |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
