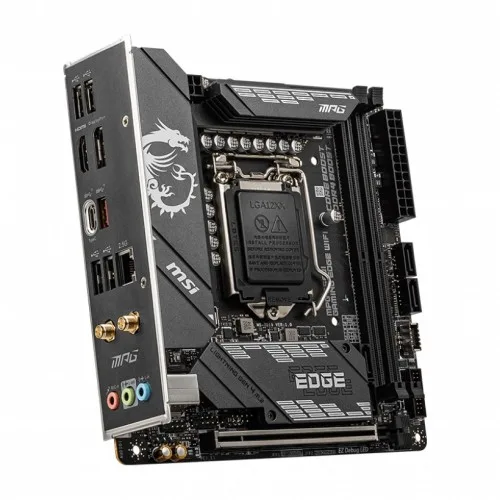

Buy MSI MPG B560I GAMING EDGE WIFI Motherboard in Jashore

  • Brand: MSI
  • Product Code: MPG B560I GAMING EDGE WIFI
  • Availability: Out Of Stock
৳20,650
Out Of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email
Unisoft ERP Accounting Software – Free Smartphone Offer Unisoft ERP Accounting Software – Free Smartphone Offer

Specification

BASIC INFORMATION
Form FactorMini-ITX Form Factor 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
Others1x TPM module connector
WirelessIntel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* [160MHz] up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
ChipsetIntel B560 Chipset
Slots2x DDR4 memory slots
Audio1x Front panel audio connector
Expansion Slots
M.2 Socket2x M.2 slots [from B560 chipset] 2x M.2 slots [Key M] M2 1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU [From CPU] Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU [From B560 chipset] Supports 2280 storage devices M2 2 slot [from B560 chipset] Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready
PCI1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU
Graphics Specifications
Graphics1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz
Memory Specifications
Maximum MemorySupport up to 64GB
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU [by JEDEC & POR]1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU [by JEDEC & POR]1 Max frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
TypeDDR4
PORTS, CONNECTORS & SLOTS
Audio Jack ComboRealtek ALC897 Codec 7.1-Channel High Definition Audio
Display Port (s)1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz
HDMI1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
LAN Port (s)1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage4x SATA 6Gb/s ports [from B560 chipset] 2x M.2 slots [from B560 chipset] 2x M.2 slots [Key M] M2 1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU [From CPU] Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU [From B560 chipset] Supports 2280 storage devices M2 2 slot [from B560 chipset] Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
USB (s)Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port on the back panel] 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C port and 2 Type-A ports are available through the internal USB 3.2 Gen 1 5Gbps connectors] 6x USB 2.0 ports [4 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector]
Internal I/O Connectors1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
WARRANTY
Manufacturing Warranty03 Years

Description

Elevate Your Gaming Experience with MSI MPG B560I GAMING EDGE WIFI

The MSI MPG B560I GAMING EDGE WIFI is the ultimate Mini-ITX motherboard designed for gamers and PC enthusiasts who demand top-tier performance from their systems. Compatible with both 10th and 11th Generation Intel processors, this motherboard is engineered to maximize your gaming potential while ensuring a compact and powerful build. With its Wi-Fi 6 connectivity, enjoy lightning-fast internet speeds that keep you ahead of the competition. The onboard RGB Mystic Light allows for customizable lighting effects, enhancing your gaming rig’s aesthetics.

Featuring dual-channel DDR4 memory support of up to 64GB, your system can handle the most demanding applications and games without any lag. The PCIe 4.0 slot ensures compatibility with the latest graphics cards, providing a seamless gaming experience. Additionally, the premium thermal solutions keep your system cool, even during intensive gaming sessions.

With a robust audio boost technology, experience immersive sound quality that brings your games to life. The MSI MPG B560I GAMING EDGE WIFI is not just a motherboard; it’s a gateway to unparalleled gaming experiences.
