Key highlights
- Raid controller: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
- Supported CPU: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
- Chipset: Intel Z790 Chipset
- Audio: Audio Connectors
- M.2 Socket: 5x M.2 slots
Description

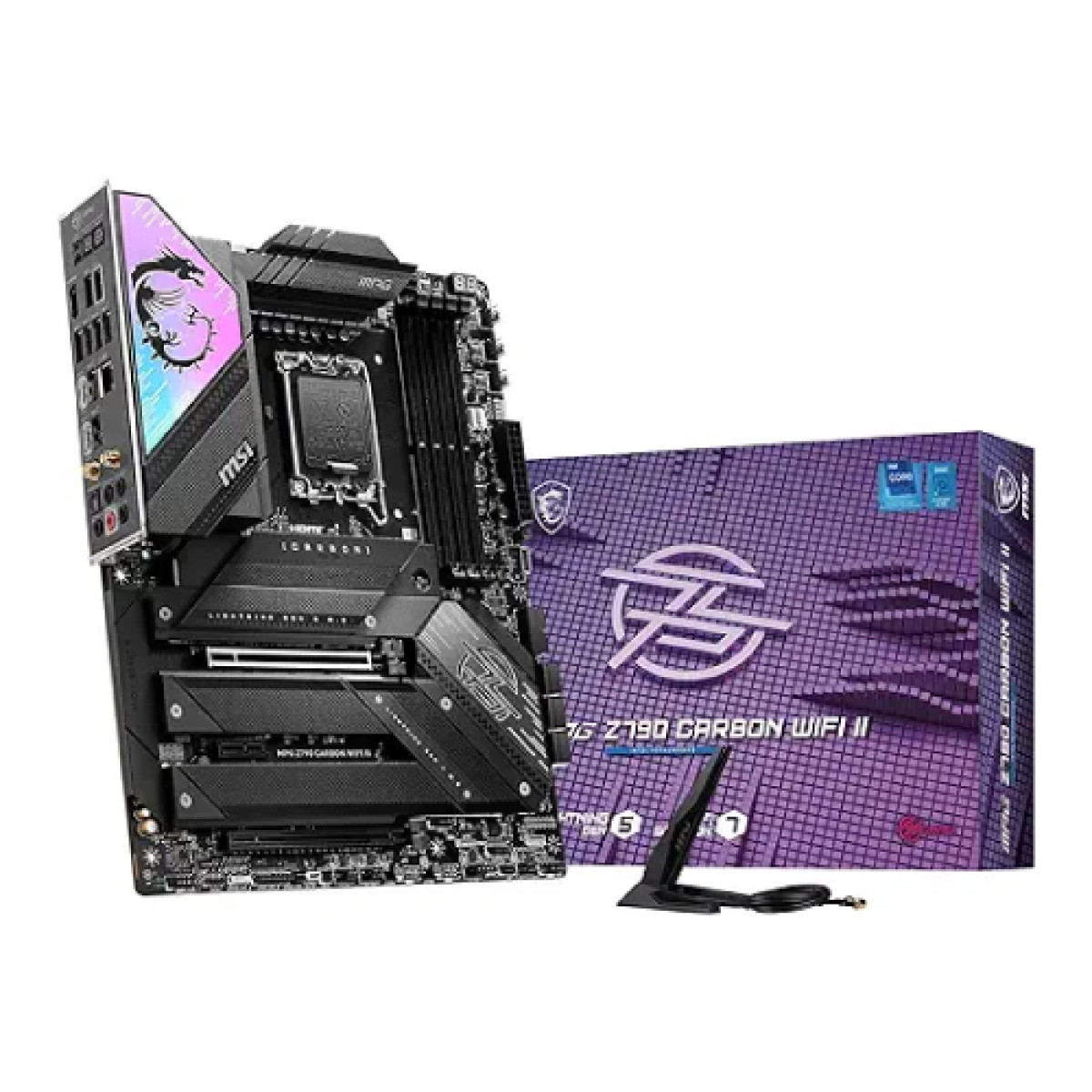

MSI MPG Z790 CARBON WIFI II DDR5 ATX Motherboard: Unleashing the Power of Next-Gen Gaming
The MSI MPG Z790 CARBON WIFI II DDR5 ATX Motherboard is a pinnacle of cutting-edge technology designed for gamers and content creators alike. This motherboard combines robust features with exceptional performance, making it an ideal choice for users looking to build a high-end PC. With support for the latest Intel 13th Gen processors and DDR5 memory, it promises to take your gaming and multitasking experience to unprecedented levels.
One of the standout features of this motherboard is its advanced thermal management system. Equipped with a premium thermal solution, including extended heat sinks and M.2 Shield Frozr, the MPG Z790 CARBON ensures that your system runs cool even during intense gaming sessions. This not only enhances performance but also prolongs the lifespan of your components.
Benefits: The motherboard supports high-speed PCIe 5.0 slots, allowing for ultra-fast graphics cards and storage devices. This means quicker load times and smoother frame rates in even the most demanding games. Additionally, with built-in Wi-Fi 6E and Bluetooth 5.2, you can enjoy seamless connectivity without the clutter of cables, making it perfect for modern setups.
Use Cases: Whether you are a hardcore gamer, a content creator, or someone who simply enjoys multitasking, the MPG Z790 CARBON is tailored to meet your needs. With its plethora of USB ports and support for multiple displays, your workflow will be more efficient than ever.
Why Buy This Product: Investing in the MSI MPG Z790 CARBON WIFI II means investing in a product that is built to last. Backed by a comprehensive warranty and support network in Bangladesh, you can rest assured that you are making a wise investment in your computing future. With its combination of performance, aesthetics, and durability, this motherboard is a must-have for anyone serious about their PC build.
Specification
| BASIC INFORMATION | |
|---|---|
| Raid controller | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | Intel Z790 Chipset |
| Audio | Audio Connectors |
| Expansion Slots | |
| M.2 Socket | 5x M.2 slots |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | 256GB |
| Slots | 4 x UDIMM |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LAN Port (s) | Realtek 2.5Gbps LAN |
| Supported Storage | 5x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 6x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) Others |
| USB (s) | 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.4, MLO, 4KQAM |
| Special | |
| Special Feature | LED FEATURE: 4x EZ Debug LED |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
