MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard
Now
৳46,300
Add one of these to unlock a lower price on this item
Key highlights
- Graphics: 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
- SpecialFeatures: 1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED
- Supported CPU: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
- Chipset: INTEL Z790 Form Factor
- Slots: 4 x DIMM
Description

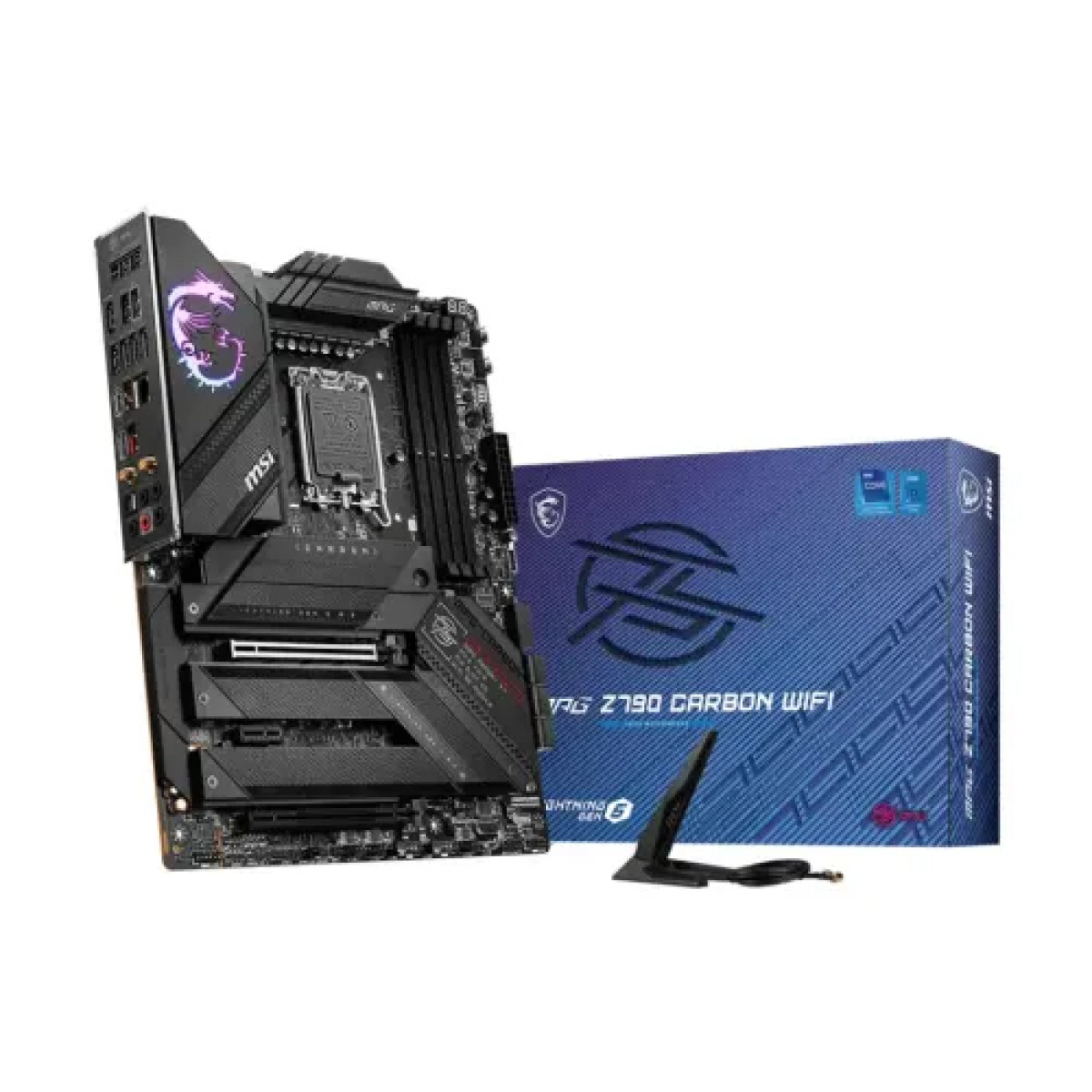

Experience Unmatched Performance with MSI MPG Z790 CARBON WIFI
The MSI MPG Z790 CARBON WIFI ATX motherboard is engineered for both the 13th and 12th Gen Intel processors, making it a top choice for gamers and content creators alike. This motherboard combines cutting-edge technology with exceptional performance, ensuring that your system runs smoothly and efficiently.
With its advanced thermal design featuring multiple heatsinks and a dedicated fan header, the MPG Z790 CARBON maintains optimal temperatures even during intense gaming sessions. The motherboard is equipped with DDR5 memory support, allowing for faster data transfer speeds and improved multitasking capabilities.
Networking is seamless thanks to the built-in WiFi 6E and Bluetooth 5.2 connectivity options, enabling you to enjoy lag-free gaming and smooth streaming. The motherboard also features USB 3.2 Gen 2x2 Type-C ports for rapid data transfer and compatibility with the latest peripherals.
Designed with gamers in mind, the MSI MPG Z790 CARBON WIFI includes customizable RGB lighting and a robust audio solution to enhance your gaming experience. Its premium build quality ensures durability and longevity, making it a wise investment for any PC builder.
Specification
| BASIC INFORMATION | |
|---|---|
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz |
| SpecialFeatures | 1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 Form Factor |
| Slots | 4 x DIMM |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC) /4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI |
| LAN Port (s) | Intel 2.5Gbps LAN |
| USB (s) | 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 6x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
