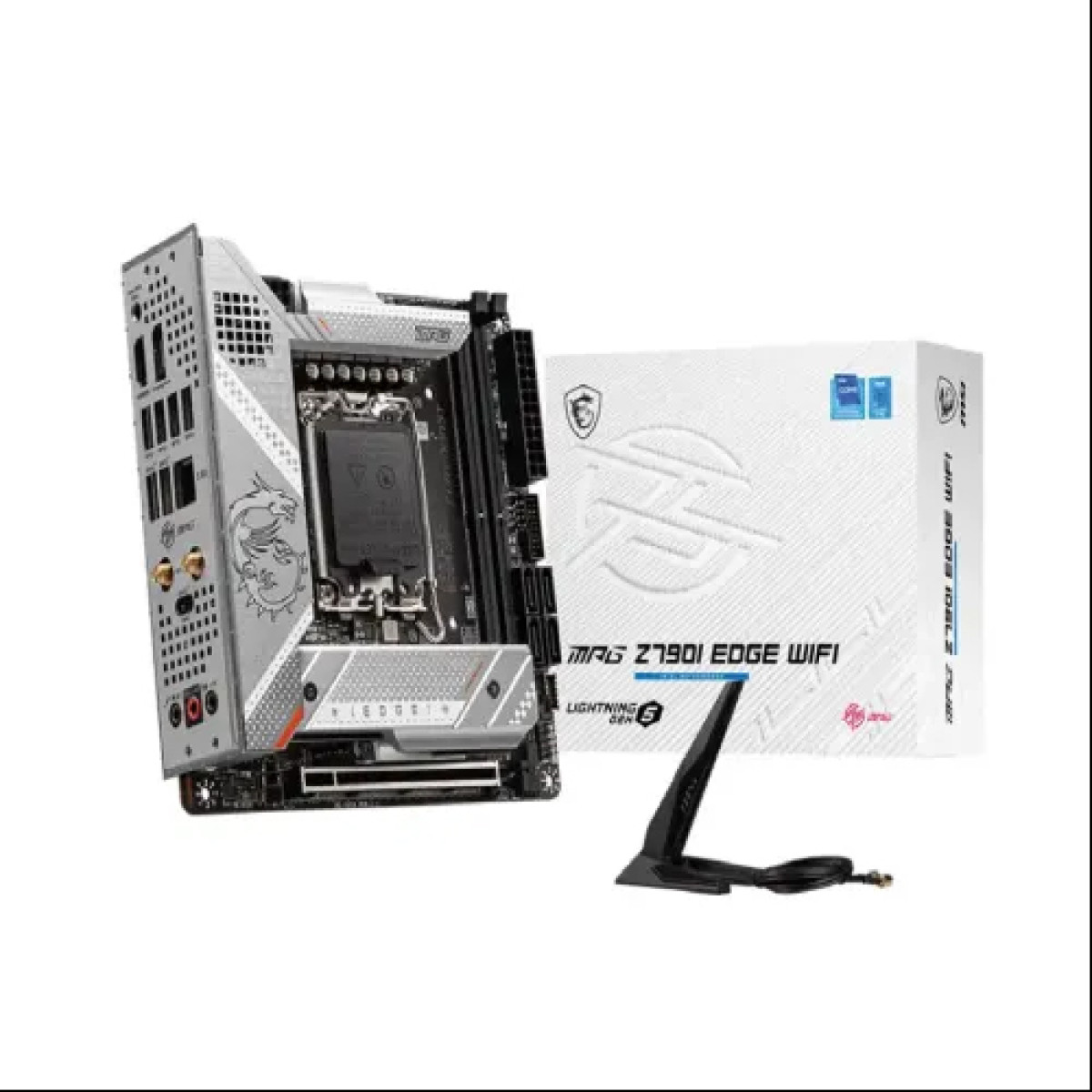

MSI MPG Z790I EDGE WIFI 13th and 12th Gen Mini-ITX Motherboard
Key highlights
- Form Factor: Mini-ITX 170mmx170mm
- Graphics: 1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz
- SpecialFeatures: 4x EZ Debug LED
- Supported CPU: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
- Chipset: INTEL Z790
Description
MSI MPG Z790I EDGE WIFI: Unleash Your Gaming Potential
The MSI MPG Z790I EDGE WIFI is a cutting-edge Mini-ITX motherboard designed to cater to the needs of modern gamers and tech enthusiasts. Built for both 12th and 13th Gen Intel processors, this motherboard offers exceptional performance and connectivity options. With its compact size, it fits perfectly in small form factor builds without sacrificing functionality.
Equipped with Wi-Fi 6E technology, the MPG Z790I EDGE ensures ultra-fast wireless connectivity, making it ideal for online gaming and streaming. Its PCIe 5.0 support provides blazing data transfer speeds, allowing for faster loading times and improved performance in demanding applications.
The motherboard also features advanced cooling solutions, including multiple fan headers and heatsinks, ensuring your system remains cool even during intense gaming sessions. With support for DDR5 memory, you can enjoy higher bandwidth and better performance, making it perfect for multitasking and high-performance gaming.
In addition, the MPG Z790I EDGE WIFI is equipped with robust audio components, providing an immersive sound experience that enhances your gaming and media consumption. The Mystic Light feature also allows for customizable RGB lighting, giving your build a unique aesthetic.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Mini-ITX 170mmx170mm |
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz |
| SpecialFeatures | 4x EZ Debug LED |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Slots | 2 x DIMM |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on the front panel |
| Type | DDR5 |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Supported Memory | 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 7200+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| LAN Port (s) | Intel 2.5Gbps LAN |
| USB (s) | 2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
