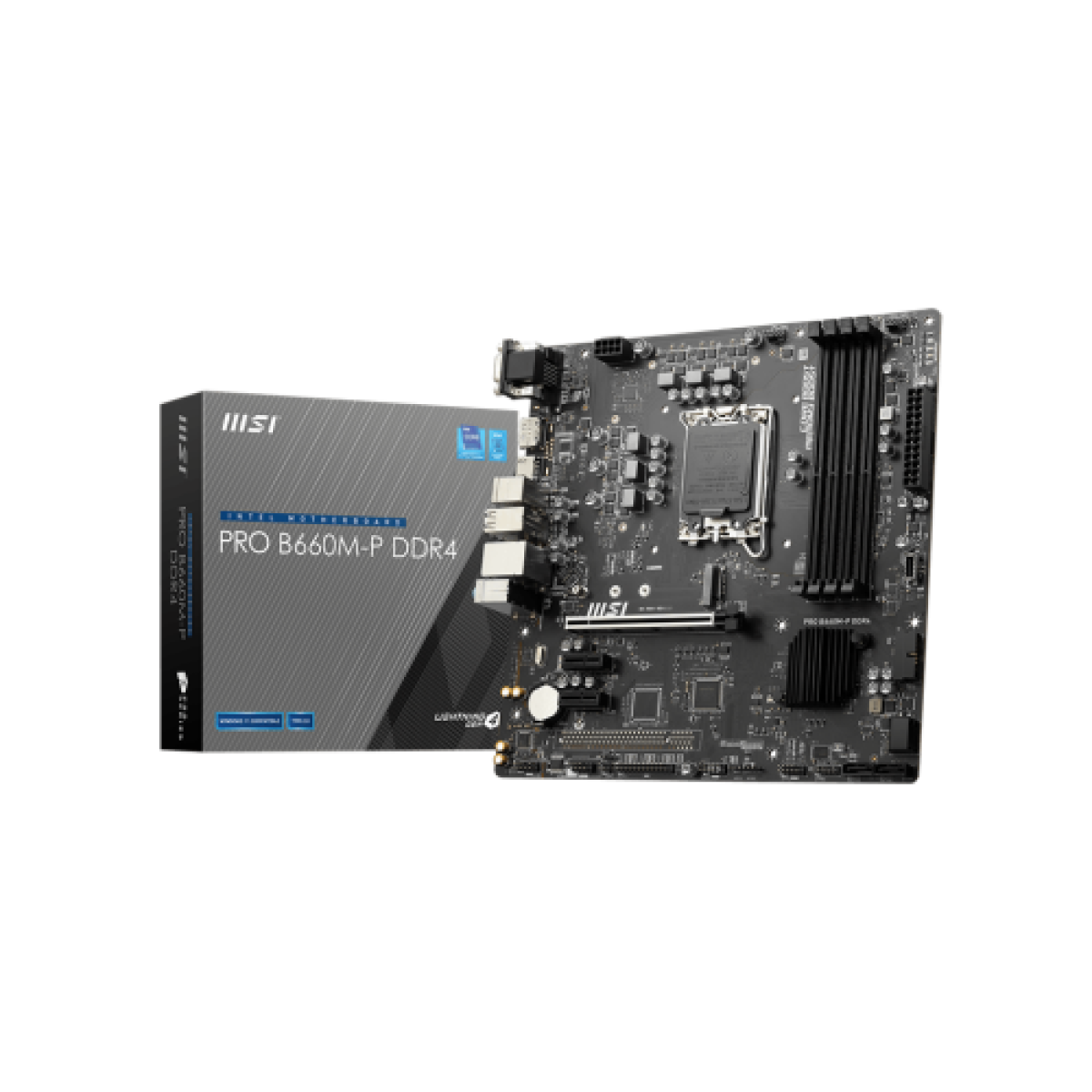

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- Chipset: Intel B660 Chipset
- BIOS: BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language
- Type: DDR4
Description
Shop High-Performance 12th Gen Micro-ATX Motherboard Now
Unleash Your Potential with the MSI PRO B660M-P DDR4 Motherboard
The MSI PRO B660M-P DDR4 Micro-ATX motherboard is designed for users seeking a reliable and high-performance platform for Intel's 12th generation processors. This motherboard is engineered to optimize your computing experience with its advanced features and robust build quality.
Equipped with DDR4 memory support, the MSI PRO B660M-P allows for enhanced multitasking capabilities, enabling you to run multiple applications smoothly. The motherboard supports up to 64GB of RAM, making it an excellent choice for gamers, content creators, and professionals alike.
With multiple PCIe slots, you can easily expand your system's capabilities with additional graphics cards or storage options. The motherboard also features USB 3.2 Gen 2 ports, providing ultra-fast data transfer speeds for your external devices.
Additionally, the MSI PRO B660M-P ensures superior thermal performance, thanks to its efficient heatsinks and cooling solutions, keeping your system stable even during intensive workloads. Whether you are building a gaming rig or a workstation, this motherboard is a perfect fit for your needs.
Upgrade Your PC with MSI PRO B660M-P Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Chipset | Intel B660 Chipset |
| BIOS | BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0 |
| Memory Specifications | |
| Maximum Memory | supporting up to 128GB |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz |
| LAN Port (s) | 1x Realtek RTL8111H 1Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
