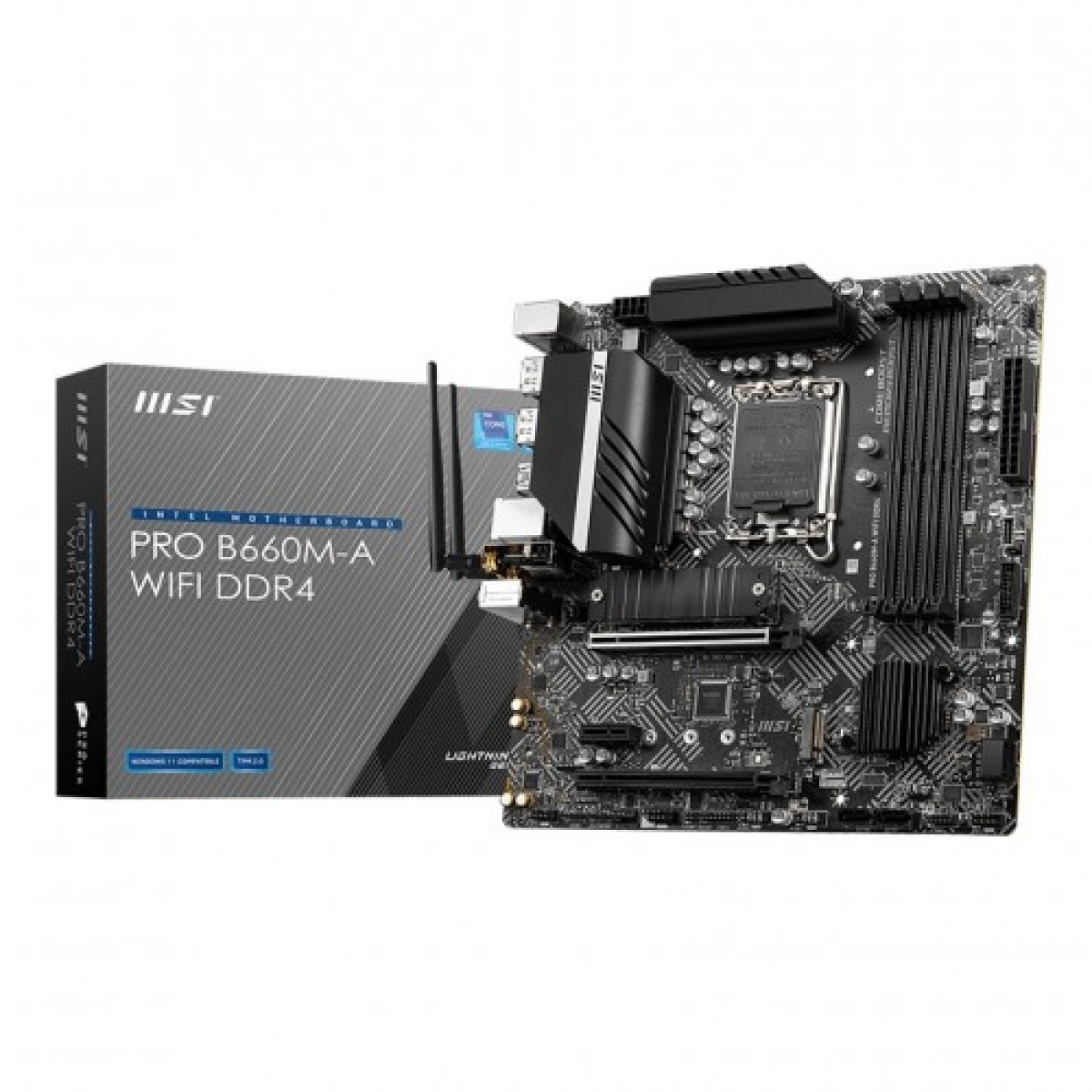

MSI PRO B660M-A WIFI DDR4 12th Gen Micro-ATX Motherboard
Key highlights
- Form Factor: Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
- Graphics: 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Type: DDR4
- PCI: 2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset)
Description
12th Gen Micro-ATX Motherboard for Enhanced Performance
Experience Unmatched Performance with MSI PRO B660M-A WIFI DDR4
The MSI PRO B660M-A WIFI DDR4 motherboard is designed for the 12th generation Intel processors, delivering exceptional performance for both gamers and professionals. With its Micro-ATX form factor, it fits perfectly in compact builds while offering an array of features that enhance your computing experience. The advanced Wi-Fi 6 technology ensures fast and reliable internet connectivity, making it ideal for online gaming and streaming.
This motherboard supports DDR4 memory with speeds up to 4800 MHz, allowing for quick data transfer and improved system responsiveness. Its multiple USB ports and PCIe slots provide flexibility for expansion, enabling you to customize your setup according to your needs. Moreover, the Core Boost technology optimizes power delivery, ensuring stable performance even under heavy loads.
Additionally, the MSI PRO B660M-A features a robust thermal solution, keeping your system cool during intense gaming sessions. With MSI's Dragon Center software, you can easily monitor and manage system performance, making it an excellent choice for tech enthusiasts and professionals.
Explore MSI PRO B660M-A Features and Specifications
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Graphics | 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset) |
| Memory Specifications | |
| Maximum Memory | Support up to 128GB |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | HDMI (BACK PANEL PORTS) |
| Internal I/O Ports | INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector BACK PANEL PORTS: Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A |
| LAN Port (s) | 1x Realtek RTL8125BG 2.5Gbps LAN controller |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector |
