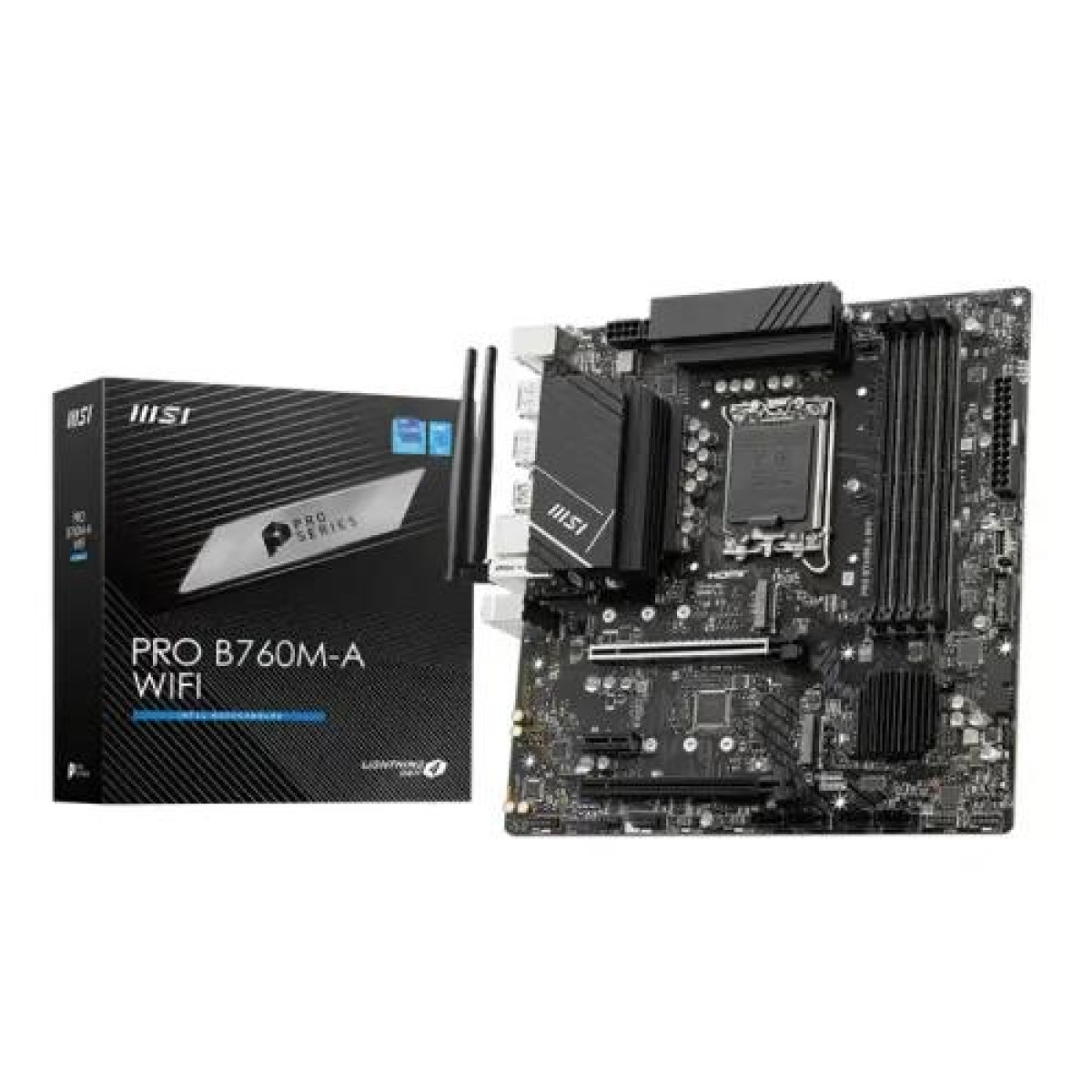

MSI PRO B760M-A WIFI mATX Motherboard
- Brand:MSI
- Product Code: MSI PRO B760M-A WIFI mATX Motherboard
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | mATX 243.84mmx243.84mm |
|---|---|
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Slots | 4 |
| Audio | 3x Audio Connectors |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Graphics Specifications | |
| Graphics | 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | 192GB |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 2x DisplayPort |
| HDMI | 2x HDMI |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
MSI PRO B760M-A WIFI mATX Motherboard Overview
The MSI PRO B760M-A WIFI mATX Motherboard is a powerful and versatile motherboard designed for both enthusiasts and professionals seeking to build a reliable and high-performing computer system. This motherboard is equipped with the latest technology, providing a robust platform for your next build. The B760 chipset ensures compatibility with Intel's 12th and 13th generation processors, offering exceptional processing power and efficiency.
Key Benefits:
- Wi-Fi Connectivity: The integrated Wi-Fi module allows for seamless internet connectivity, making it ideal for online gaming, streaming, or remote work setups.
- Ample Expansion Slots: With multiple PCIe slots, users can easily expand their system with additional graphics cards, storage drives, or other peripherals.
- High-Quality Audio: The motherboard features high-definition audio components that deliver an immersive sound experience, perfect for gamers and media creators alike.
- Durability and Reliability: Built with top-notch materials and advanced cooling solutions, the MSI PRO B760M-A ensures long-lasting performance even under heavy loads.
Use Cases:
This motherboard is perfect for various applications, including gaming, content creation, and everyday computing tasks. Whether you're a gamer looking to build a high-performance rig or a professional needing a reliable workstation, the MSI PRO B760M-A can meet your needs.
Why Buy This Product:
Investing in the MSI PRO B760M-A WIFI mATX Motherboard means choosing quality, performance, and reliability. Its advanced features, coupled with a user-friendly design, make it an excellent choice for both first-time builders and seasoned professionals. With this motherboard, you are not just purchasing a product; you are investing in a platform that will support your computing needs for years to come.
