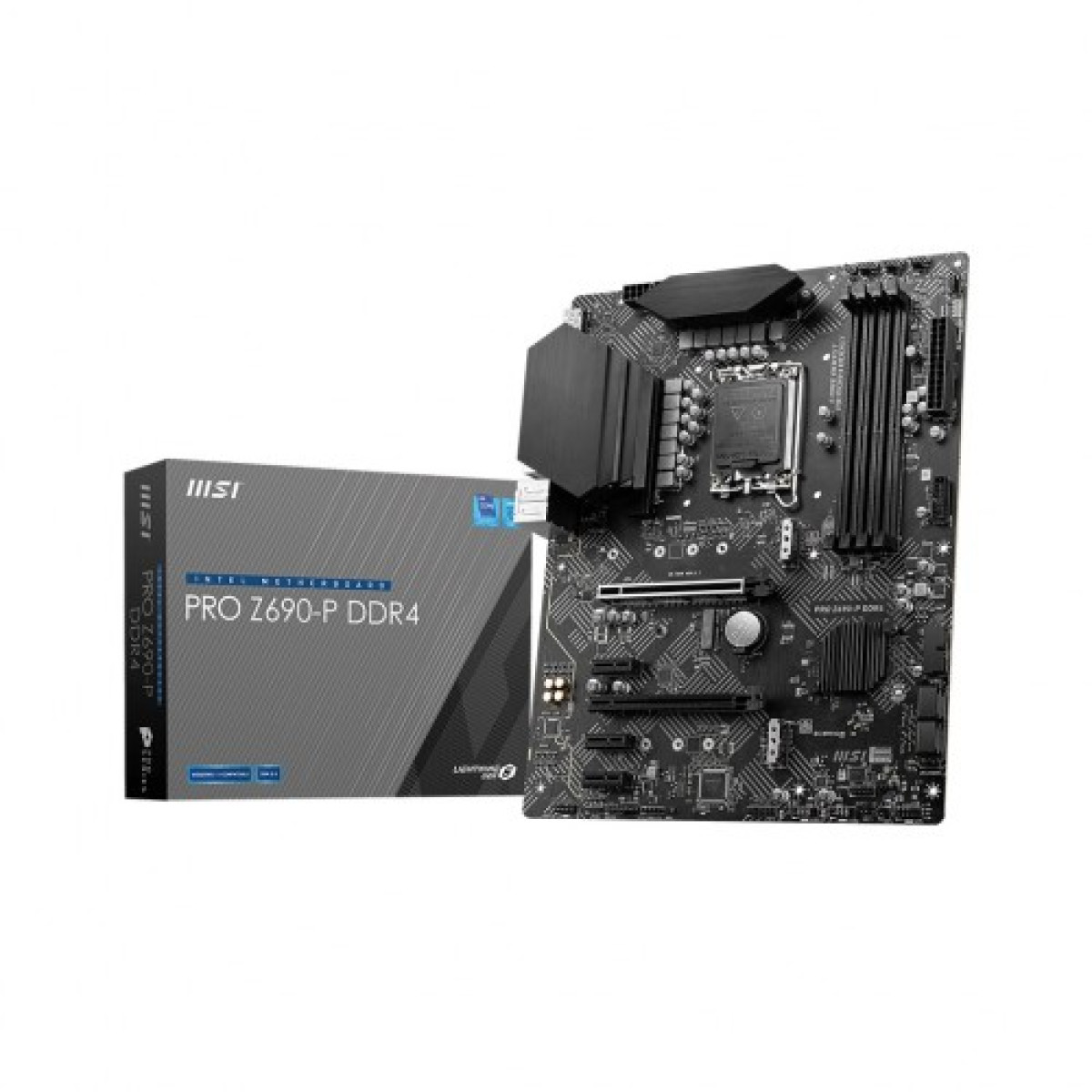

MSI PRO Z690-P DDR4 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Supported CPU: Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700
- Chipset: Intel Z690 Chipset
- Audio: 1x Front panel audio connector
- M.2 Socket: 1x M.2 slot with E key for Intel Wireless-AX CNVi and PCIe WiFi module
Description
High-Performance ATX Motherboard for Gaming and Productivity
Upgrade Your Build with the MSI PRO Z690-P DDR4 Motherboard
The MSI PRO Z690-P DDR4 12th Gen ATX Motherboard is designed for those who seek reliability and performance in their computing experience. Built to support the latest 12th generation Intel processors, this motherboard is perfect for gamers, content creators, and professionals alike. With its advanced thermal design, you can ensure stable performance even during the most intense workloads.
This motherboard features multiple connectivity options, including PCIe 5.0 slots for the latest GPUs, ensuring you stay ahead in the gaming and tech world. The DDR4 memory support allows for high-speed data transfer and multitasking capabilities, making it an ideal choice for demanding applications. Additionally, the robust build quality ensures longevity and reliability, making it a worthy investment for your PC build.
Experience enhanced audio quality with the integrated audio chipset, providing a rich sound experience for gaming and media consumption. With MSI's Click BIOS, navigating through BIOS settings has never been easier, allowing users to tweak their systems for optimal performance. The MSI PRO Z690-P DDR4 motherboard is not just about performance but also about providing a seamless user experience.
Upgrade Your PC with MSI PRO Z690-P DDR4 Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Audio | 1x Front panel audio connector |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot with E key for Intel Wireless-AX CNVi and PCIe WiFi module |
| PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Support PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support PCIe 3.0 x4 3x PCIe 3.0 x1 slots (Fom Z690 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMI 1.4b with HDR port |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (Supports RTD3) |
| LAN Port (s) | 1x Realtek RTL8125BG 2.5Gbps LAN controller |
| Supported Storage | 4x SATA 6Gb/s ports (From Z690 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel Z690 Chipset 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors) 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors) 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
