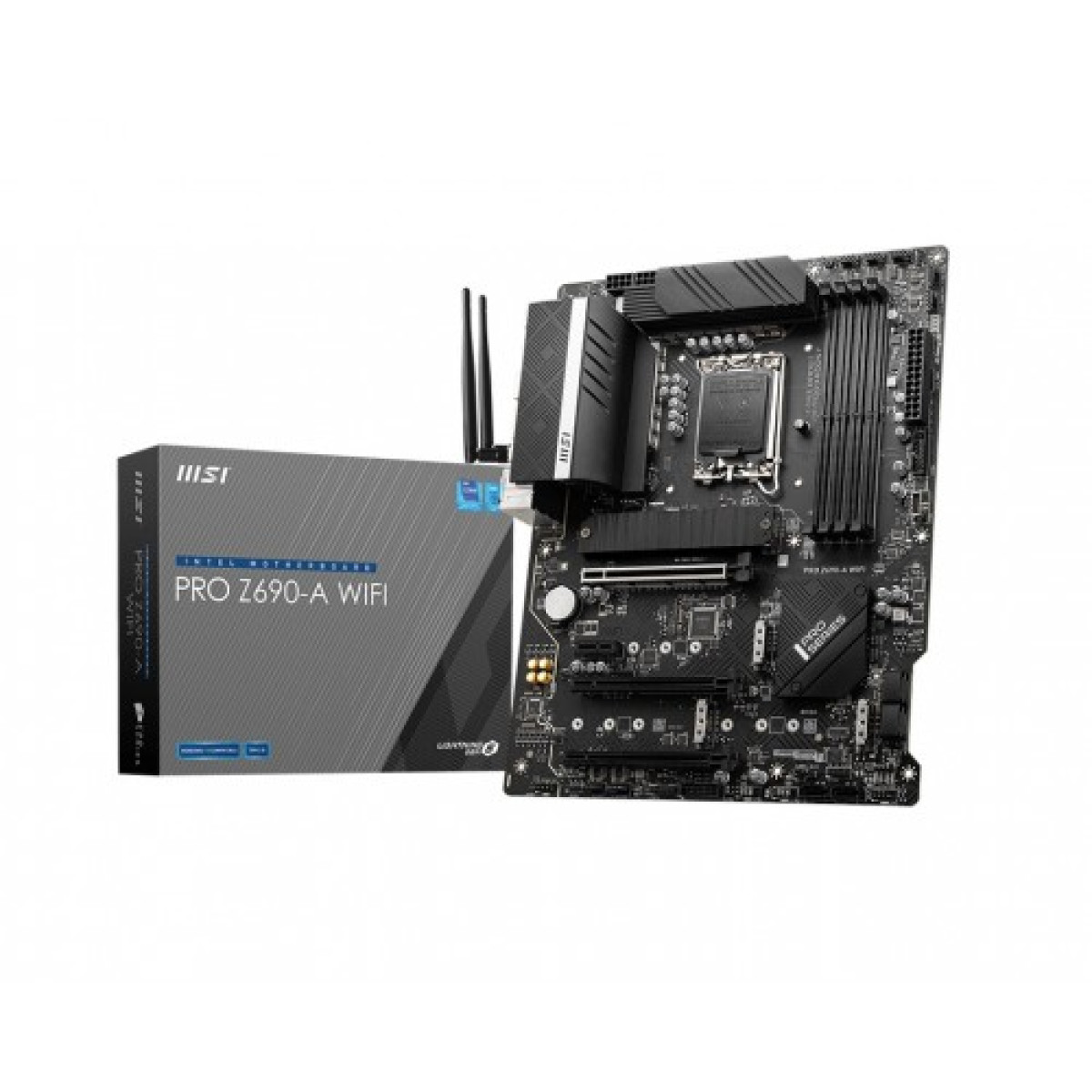

MSI PRO Z690-A WiFi DDR5 12th Gen ATX Motherboard
Key highlights
- Form Factor: ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700
- Chipset: Intel Z690 Chipset
- Audio: 7.1-Channel High Definition Audio
- BIOS: Flash BIOS Button
Description
Latest 12th Gen ATX Motherboard with WiFi Connectivity
Experience Unmatched Performance with the MSI PRO Z690-A WiFi DDR5 Motherboard
The MSI PRO Z690-A WiFi DDR5 motherboard is designed for the discerning user who demands top-tier performance and reliability. Ideal for professionals and gaming enthusiasts alike, this ATX motherboard supports Intel's 12th generation processors, providing the power and efficiency needed for intensive tasks and seamless multitasking. With support for DDR5 memory, you can expect faster data transfer rates and improved bandwidth, ensuring that your system runs smoothly even under heavy loads.
This motherboard is equipped with WiFi 6 technology, offering ultra-fast wireless connectivity, which is perfect for those who prefer a cable-free workspace. The dual M.2 slots provide ample storage options, allowing you to take advantage of the lightning-fast speeds of NVMe SSDs. Additionally, the premium capacitors and PCB design ensure durability and longevity, making it a smart investment for your computing needs.
Furthermore, the MSI PRO Z690-A is compatible with a wide range of components, making it easy to build your dream setup. With advanced cooling solutions and customizable RGB lighting, you can create a visually stunning build that performs as good as it looks.
Enhance Your PC Build with MSI PRO Z690-A Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Audio | 7.1-Channel High Definition Audio |
| BIOS | Flash BIOS Button |
| Expansion Slots | |
| M.2 Socket | 4 x M.2 slots (M-Key) |
| PCI | 3x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (from Z690 chipset) Supports up to PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (from Z690 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | up to 128GB |
| Slots | 4 x DDR5 memory slots |
| Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| LAN Port (s) | 1x Intel I225-V 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset Support Intel Smart Response Technology for Intel Core processors |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| USB (s) | Intel Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 years warranty |
