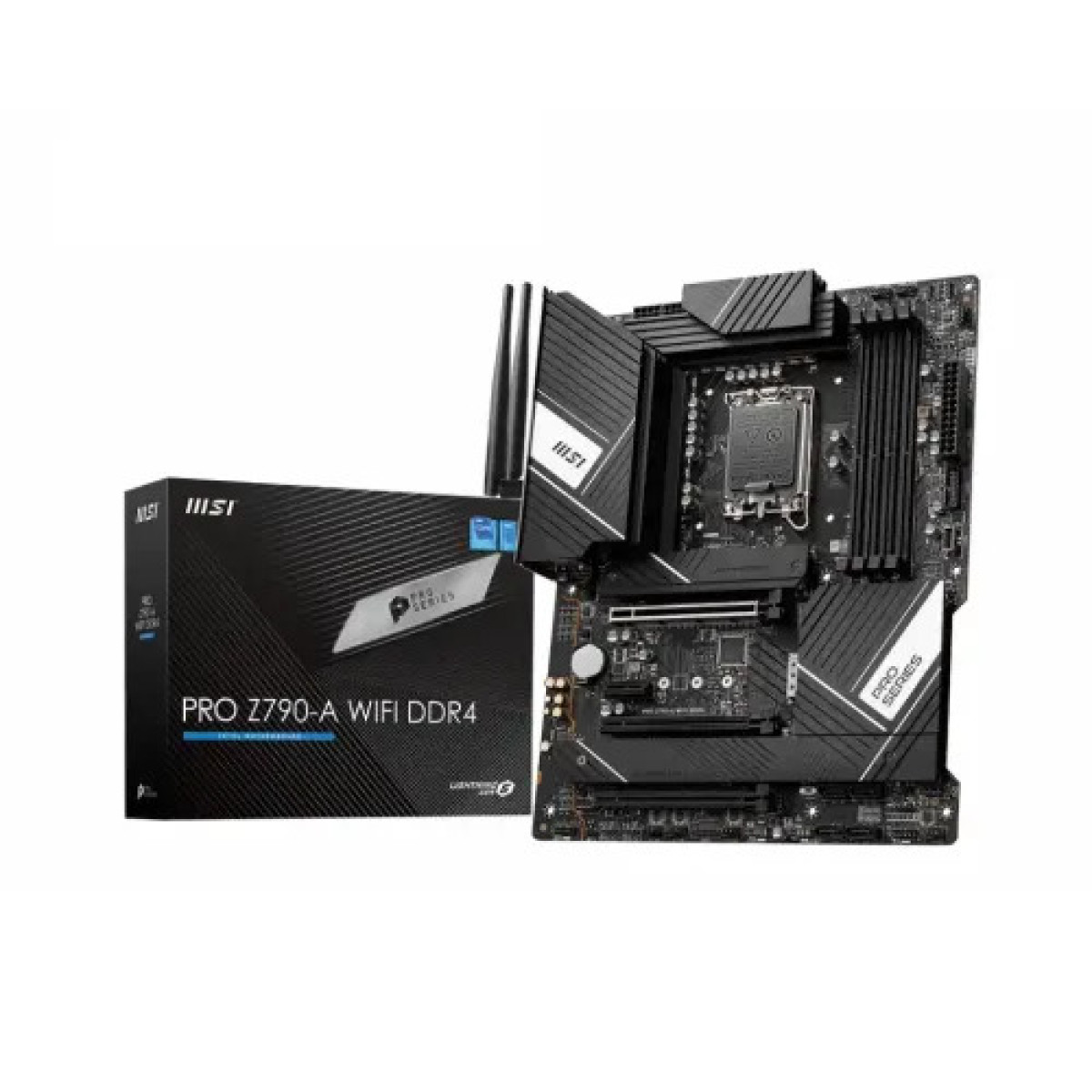

MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard
Key highlights
- Form Factor: ATX 243.84mmx304.8mm
- Supported CPU: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
- Audio: Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
- HDMI: 1x HDMI
- Maximum Memory: 128GB
Description
Unleash Your Gaming Potential with MSI PRO Z790-A WIFI DDR4 Motherboard
The MSI PRO Z790-A WIFI DDR4 is a powerful ATX motherboard designed for Intel's 12th and 13th generation processors. This motherboard is perfect for gamers and professionals alike who demand high performance and reliability. With advanced features such as Wi-Fi 6 connectivity, dual M.2 slots, and support for DDR4 memory up to 128GB, it ensures that your system runs smoothly even under heavy loads. The steel-reinforced PCIe slots enhance durability, making it suitable for high-end graphics cards, while the premium capacitors and power design provide stable power delivery for overclocking.
Furthermore, the MSI PRO Z790-A motherboard comes equipped with USB 3.2 Gen 2 ports, allowing for lightning-fast data transfer and connectivity. The intuitive BIOS and user-friendly interface make it easy for users to tweak their settings for optimal performance. Whether you're building a new system or upgrading an existing one, this motherboard is designed to meet the demands of modern computing, providing an exceptional gaming and multitasking experience.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX 243.84mmx304.8mm |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Interface | |
| HDMI | 1x HDMI |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 (By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | Intel 2.5Gbps LAN |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
