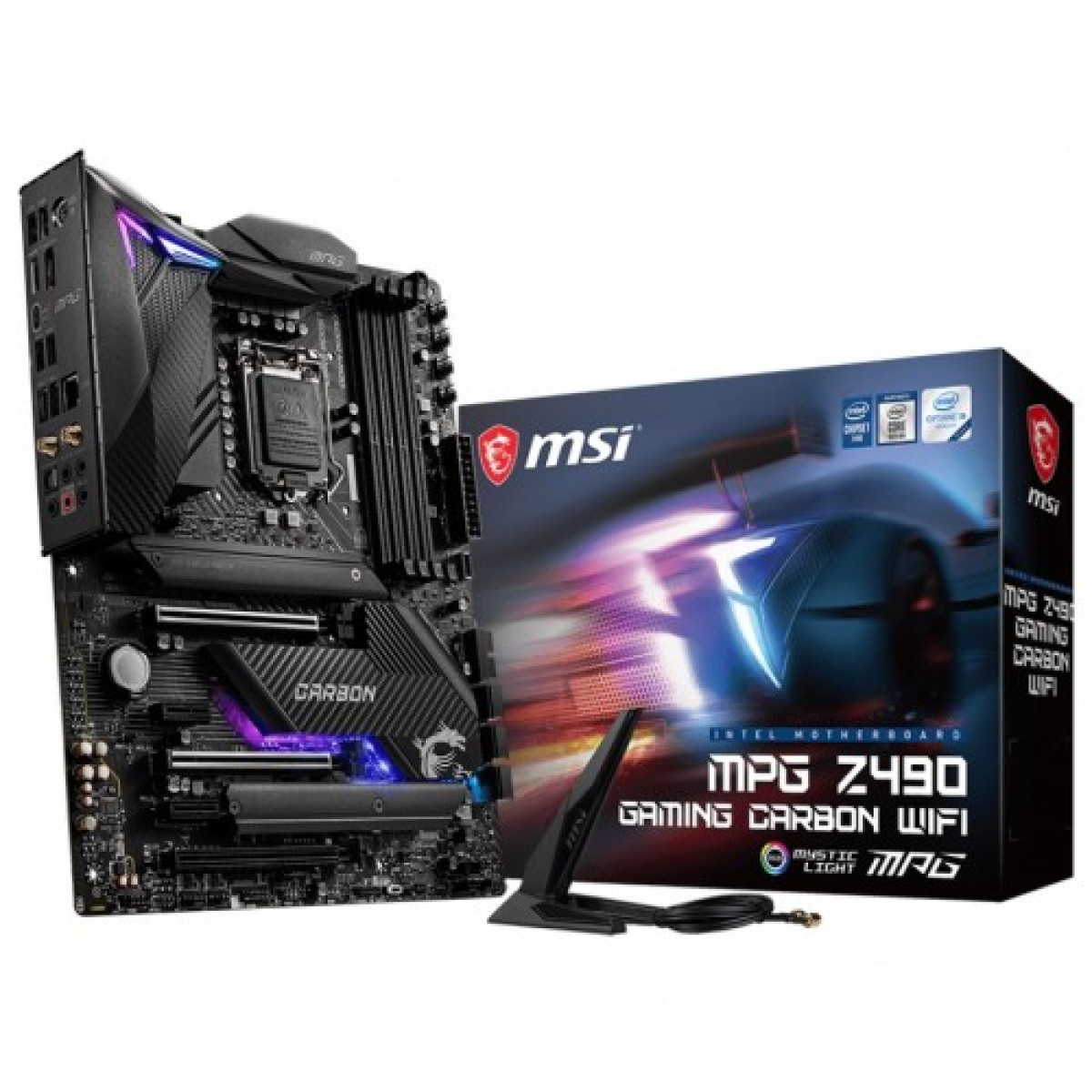

MSI Z490 Gaming Carbon Wi-Fi 10th Gen Intel ATX Motherboard
- Brand: MSI
- Product Code: MSI Z490 Gaming Carbon Wi-Fi
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|---|---|
| Chipset | Intel Z490 Chipset |
| Memory | support up to 128GB |
| Slots | 4x DDR4 memory slots |
| Audio | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| M.2 Socket | 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
| PCI | 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode 2x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Max Shared Memory | 1GB |
| Graphics | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz MULTI-GPU Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
| Memory Specifications | |
| Supported Memory | Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4500+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | Dual-Channel mode |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz |
| HDMI | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz |
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller |
| Supported Storage | Intel Z490 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Sma |
| USB (s) | Intel Z490 Chipset 5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia ASM3241 Chipset 1x USB 3.2 Gen 2x2 20Gbps port on the back panel |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x Serial port connector 1x RTD3 connector 1x Clear CMOS jumper 1x TBT connector |
| Special | |
| Special Feature | WIFI & BLUETOOTH Intel AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
Description
Experience Unrivaled Performance with the MSI Z490 Gaming Carbon Wi-Fi
The MSI Z490 Gaming Carbon Wi-Fi motherboard is engineered specifically for gamers and PC enthusiasts seeking top-tier performance and cutting-edge technology. Supporting the latest 10th generation Intel processors, this ATX motherboard is packed with features that enhance gaming experiences and multitasking capabilities.
Superior Cooling Solutions ensure that your system stays cool even during intense gaming sessions. With multiple fan headers and an advanced thermal design, the MSI Z490 allows for optimal airflow and heat dissipation.
Lightning Fast Connectivity is made possible with integrated Wi-Fi 6 and 2.5G LAN, providing faster internet speeds and lower latency. This is crucial for online gaming and streaming, ensuring that you stay connected with minimal interruptions.
Enhanced Audio Experience is brought to you by the high-definition audio components, delivering crystal-clear sound quality that immerses you in the gaming world. Whether you're playing competitive games or enjoying cinematic experiences, the MSI Z490 ensures high fidelity audio.
Moreover, with customizable RGB lighting and Steel Armor protection for PCIe slots, this motherboard not only performs exceptionally but also looks stunning in any gaming setup. Upgrade your gaming rig today with the MSI Z490 Gaming Carbon Wi-Fi motherboard!
