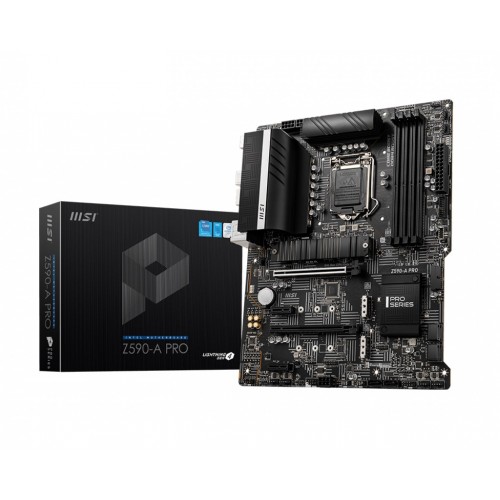

MSI Z590-A PRO Intel 10th Gen and 11th Gen ATX Motherboard

  • Brand: MSI
  • Product Code: Z590-A PRO
  • Availability: Out of Stock
  • Updated:
৳21,480
Out of Stock

One email when this product is in stock again. Nothing else.

0 reviews Write a review

Share on FacebookSend in MessengerShare on TelegramShare on X (Twitter)Share by email

Specification

BASIC INFORMATION
Form FactorATX Form Factor
Others1x TPM module connector
Supported CPUSupports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold and Celeron Processors
ChipsetIntel Z590 Chipset
Audio7.1-Channel High Definition Audio
Expansion Slots
M.2 Socket3x M.2 slots (Key M)
PCI2x PCIe x16 slots - Support x16/ x4 - PCI_E1 (from CPU) - Supports up to PCIe 4.0 for 11th Gen Intel® CPU - Supports up to PCIe 3.0 for 10th Gen Intel® CPU - PCI_E3 (from Z590 chipset) - Supports up to PCIe 3.0 - 2x PCIe 3.0 x1 slots (from Z590 chipset)
Graphics Specifications
Graphicsx HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Memory Specifications
Maximum Memoryup to 128GB
Slots4x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
TypeDDR4
PORTS, CONNECTORS & SLOTS
Audio Jack Combo1x Front panel audio connector
LAN Port (s)1x Intel I225-V 2.5Gbps LAN controller
Supported Storage6x SATA 6Gb/s ports (from Z590 chipset) 3x M.2 slots (Key M) - M2_1 slot (from CPU) - Available only on 11th Gen Intel CPU - Supports up to PCIe 4.0x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_21, M2_32 slots (from Z590 chipset) - Support up to PCIe 3.0x4 - Support up to SATA 6Gb/s - Support 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready 3 Support Intel Smart Response Technology for Intel Core processors
USB (s)Intel Z590 Chipset - 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel - 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) - 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors) USB 2.0 Hubs GL850G - 4x USB 2.0 Type-A ports on the back panel - 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Internal I/O Connectors1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin ATX PCIe power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
WARRANTY
Manufacturing Warranty03 years warranty

Description

Elevate Your Gaming Experience with the MSI Z590-A PRO

The MSI Z590-A PRO Intel 10th Gen and 11th Gen ATX Motherboard is engineered for gamers and professionals alike, offering a seamless blend of performance, durability, and advanced technology. With support for Intel's latest processors, this motherboard ensures that you can utilize the full potential of your CPU, providing faster speeds and enhanced multitasking capabilities.

Equipped with PCIe 4.0, the Z590-A PRO allows for lightning-fast data transfer rates, making it ideal for high-end graphics cards and storage solutions. The robust thermal design with enhanced cooling features ensures your system remains stable even during intense gaming sessions.

Furthermore, the motherboard supports up to 128GB of DDR4 RAM, enabling you to run multiple applications and games without lag. With MSI's Mystic Light technology, you can customize your gaming rig's aesthetics with vibrant RGB lighting, adding a personal touch to your setup.

Designed with USB 3.2 Gen 2 Type-C and multiple USB ports, connectivity is never an issue. The Z590-A PRO also features high-definition audio and a premium build quality, making it a reliable choice for any tech enthusiast in Bangladesh.
