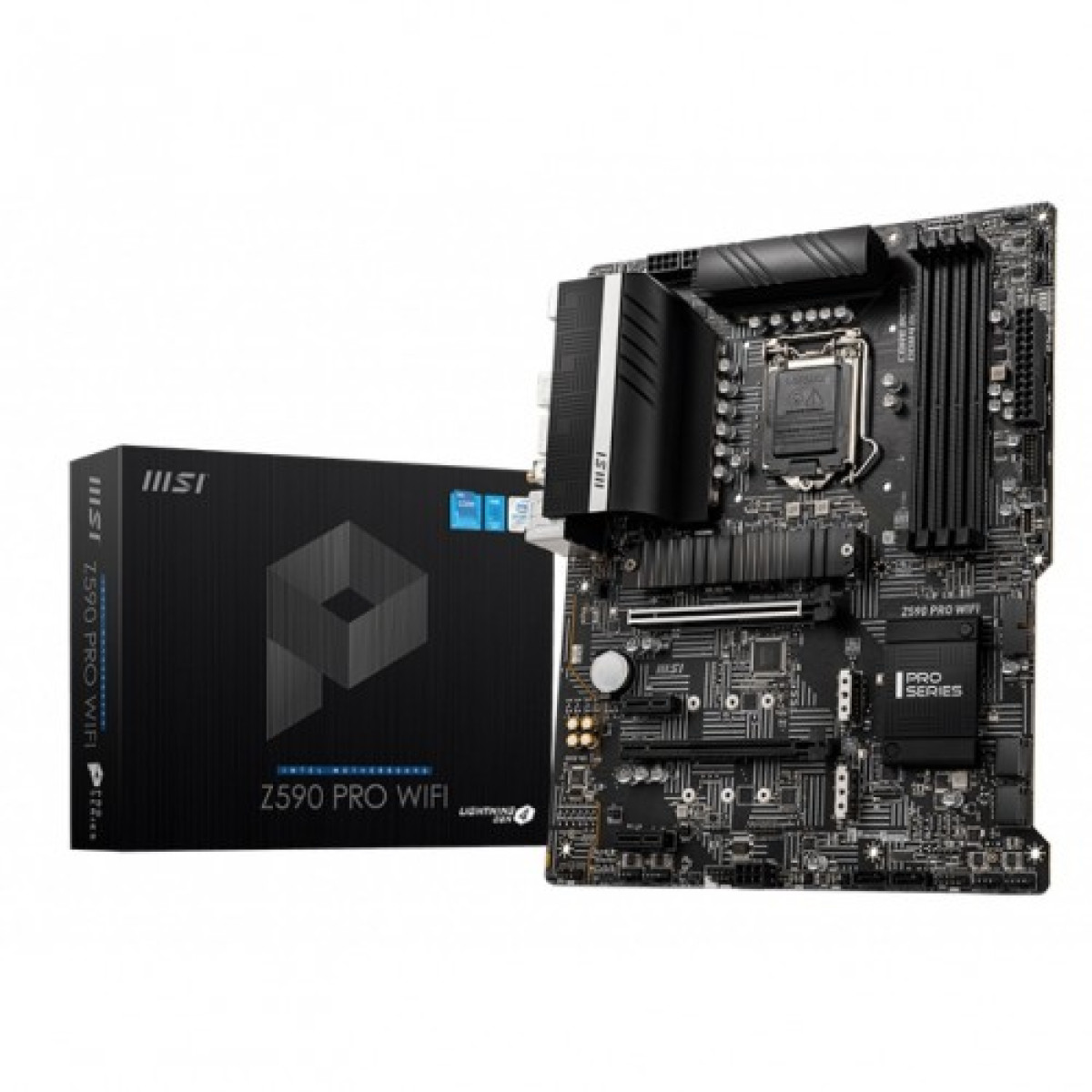

MSI Z590 Pro Wi-Fi Intel 11th Gen ATX Motherboard
- Brand: MSI
- Product Code: Z590
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|---|---|
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel Z590 Chipset |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| M.2 Socket | 3x M.2 slots (Key M) M2_1 slot (from CPU) 1 Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21, M2_32 slots (from Z590 chipset) Support up to PCIe 3.0x4 Support up to SATA 6Gb/s Support 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready |
| PCI | 2x PCIe x16 slots Support x16/ x4 PCI_E1 (from CPU) Supports up to PCIe 4.0 for 11th Gen Intel CPU Supports up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 (from Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (from Z590 chipset) |
| Graphics Specifications | |
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4x memory slots |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| LAN Port (s) | 1x Intel I225-V 2.5Gbps LAN controller |
| Supported Storage | 6x SATA 6Gb/s ports (from Z590 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 slots (from Z590 chipset) Support up to PCIe 3.0x4 Support up to SATA 6Gb/s Support 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Support Intel Smart Response Technology for Intel Core processors |
| USB (s) | Intel Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors) USB 2.0 Hubs GL850G 4x USB 2.0 Type-A ports on the back panel 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin ATX PCIe power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| Special | |
| Special Feature | INTEL WI-FI 6E AX210: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Elevate Your Gaming Experience with MSI Z590 Pro Wi-Fi
The MSI Z590 Pro Wi-Fi Intel 11th Gen ATX Motherboard is designed for gamers and tech enthusiasts who demand the best performance from their systems. Featuring the latest Intel 11th generation processors, this motherboard offers unmatched speed and efficiency. With support for PCIe 4.0, you can take advantage of the latest graphics cards for an enhanced gaming experience.
Equipped with Wi-Fi 6, the MSI Z590 Pro ensures a stable and fast internet connection, minimizing latency during online gaming. USB 3.2 Gen 2 ports provide ultra-fast data transfer rates for your peripherals, making it perfect for content creators and gamers alike. The motherboard also includes advanced thermal solutions, ensuring optimal performance under heavy loads.
Moreover, the MSI Dragon Center software allows for easy system customization, letting you tweak performance settings and RGB lighting to match your unique style. With its durable build quality and reinforced PCIe slots, the Z590 Pro Wi-Fi is not just a motherboard; it's a long-term investment for your gaming rig.
