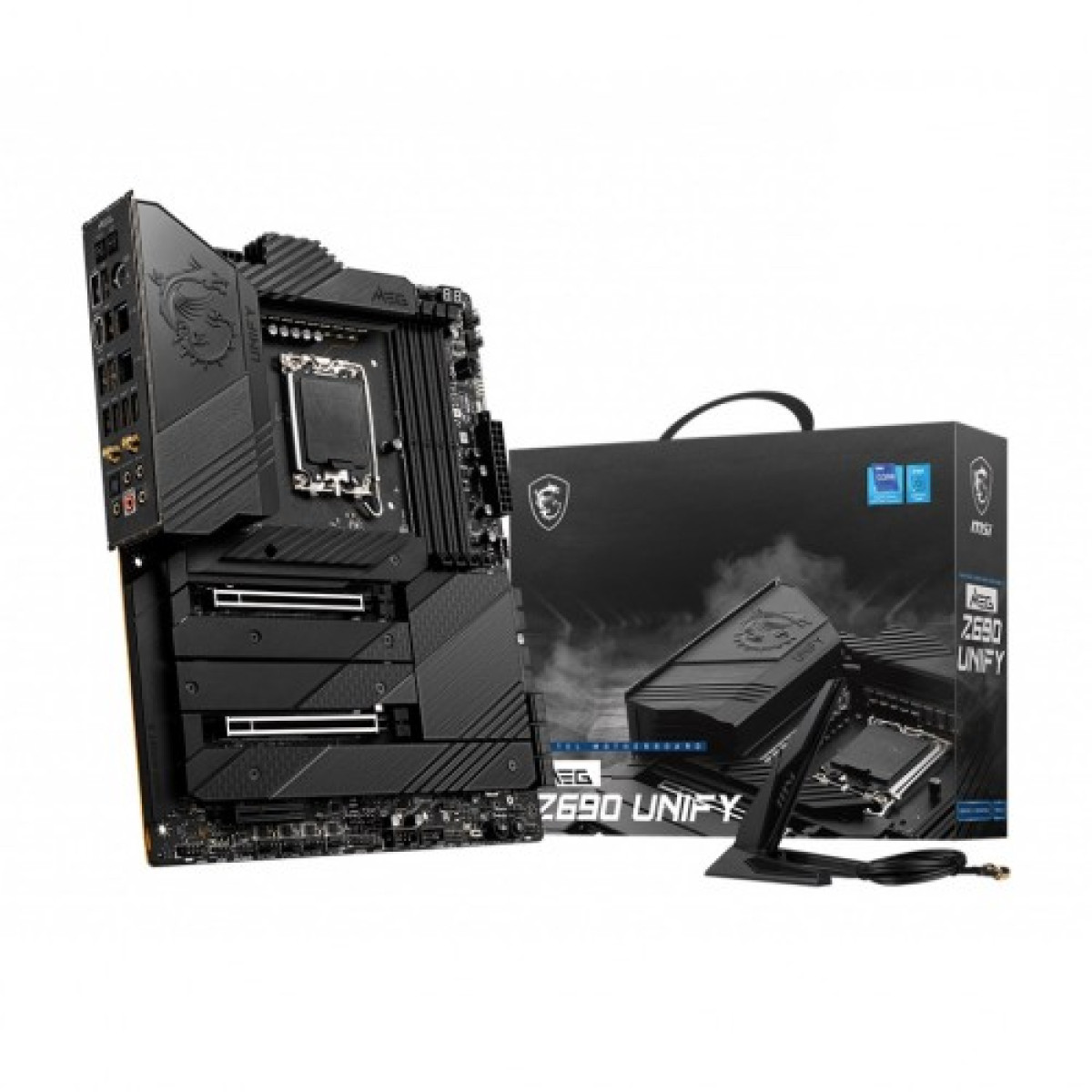

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard
Key highlights
- Form Factor: E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm)
- Supported CPU: Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Chipset: Processor socket LGA1700
- Slots: 4x DDR5 memory slots, supporting up to 128GB 1
- BIOS: Flash BIOS Button
Description
Top Features of MSI MEG Z690 UNIFY Motherboard
Elevate Your Gaming Experience with MSI MEG Z690 UNIFY
The MSI MEG Z690 UNIFY 12th Gen ATX Motherboard is designed for gamers and enthusiasts who demand the best performance and reliability. With its advanced features and cutting-edge technology, this motherboard supports Intel's 12th generation processors, ensuring that you can push your system to the limits. Featuring a robust power delivery system, it guarantees stability even during intense gaming sessions.
Equipped with PCIe 5.0 support, the Z690 UNIFY offers lightning-fast data transfer speeds, allowing you to maximize the potential of your NVMe SSDs. The motherboard also includes multiple M.2 slots for extensive storage options, enabling seamless multitasking and quick load times. Additionally, the advanced thermal management with customized cooling solutions keeps your system running cool, ensuring optimal performance.
Connectivity is not an issue either, as the Z690 UNIFY comes with USB 3.2 Gen 2x2 and Thunderbolt 4 capabilities, providing you with high-speed data transfer and compatibility with a wide range of peripherals. Its sleek design and RGB lighting allow for a personalized aesthetic that matches your gaming setup.
Why Choose MSI MEG Z690 UNIFY for Your Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm) |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Processor socket LGA1700 |
| Slots | 4x DDR5 memory slots, supporting up to 128GB 1 |
| BIOS | Flash BIOS Button |
| Expansion Slots | |
| M.2 Socket | 5x M.2 slots (M-Key) |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2x2 20Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connector 1x Water flow connector 1x V-check point 1x Tuning controller connector 1x Debug port connector 1x TBT connector (Supports RTD3) |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
